Quick Details
-
Model Number:
-
KCD4-101/D
-
Max. Current:
-
16A/20A
-
Mechanical Life:
-
50000 Cycles
-
Item:
-
welder switch
-
Material:
-
PA66/PC
-
Function:
-
ON-OFF-ON
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100mΩ
-
Certificate:
-
TUV,CQC,CE,ROHS
-
Mounting size:
-
28*22mm
-
Ambient temperature:
-
t105 55
-
Lamp:
-
without lamp
-
Degree of protection:
-
IP55
-
Certification:
-
ce,tuv
Quick Details
-
Max. Voltage:
-
125V/250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGHAN
-
Model Number:
-
KCD4-101/D
-
Max. Current:
-
16A/20A
-
Mechanical Life:
-
50000 Cycles
-
Item:
-
welder switch
-
Material:
-
PA66/PC
-
Function:
-
ON-OFF-ON
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100mΩ
-
Certificate:
-
TUV,CQC,CE,ROHS
-
Mounting size:
-
28*22mm
-
Ambient temperature:
-
t105 55
-
Lamp:
-
without lamp
-
Degree of protection:
-
IP55
-
Certification:
-
ce,tuv

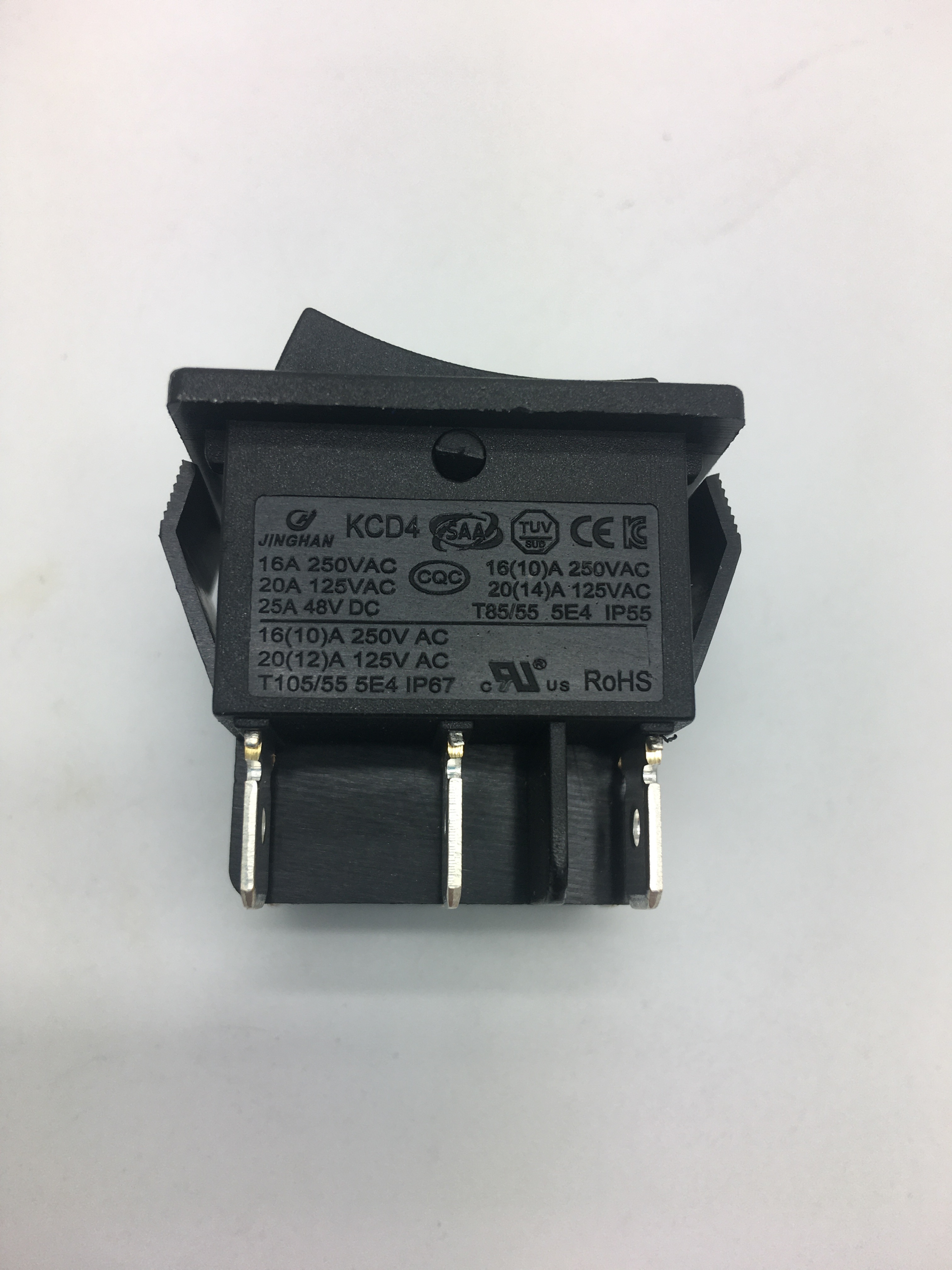

KCD4-101 Best Price 22*28MM Rectangle (ON)-OFF-(ON) Bilateral Reset 6Pin DPDT 16A 250VAC T85 Car Marine Rocker Toggle Switch
|
Rocker Switch |
|||||
|
Rating |
16A 250VAC;20A 125VAC |
Operating Temp. |
-25+85°C |
||
|
Contact Resistance |
50MΩ Max |
Electrical life |
≥5 0000 Cycles |
||
|
Insulation Resistance |
100MΩ Min |
Withstand Voltage |
1500VAC/5S |
||
|
Material |
Housing & Light bracket |
PA66 |
Contacts |
Copper with compound silver |
|
|
Push button |
PC |
Terminals & Mid pins |
Copper with silver plated |
||
|
Waterproof cover(Optional) |
PVC |
Side pins |
Brass with silver plated |
||
