Quick Details
-
Brand Name:
-
Drawell
-
Model Number:
-
TrueX G5 /TrueX G7
-
Product name:
-
Gold Handheld XRF
-
Range content:
-
ppm ~ 99.99%
-
Detector:
-
TrueX G5 Si-PIN detector/TrueX G7 SDD detector
-
Sensor resolution:
-
solid, liquid, powder
-
Display:
-
touchscreen TFT - LCD, resolution of 640 * 480
-
Operating Temperature:
-
-20℃~+50℃
-
Operating Humidity:
-
≤90%
-
Battery:
-
lithium battery
-
Test window:
-
12mm
-
Security:
-
standalone password manager mode
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Drawell
-
Model Number:
-
TrueX G5 /TrueX G7
-
Product name:
-
Gold Handheld XRF
-
Range content:
-
ppm ~ 99.99%
-
Detector:
-
TrueX G5 Si-PIN detector/TrueX G7 SDD detector
-
Sensor resolution:
-
solid, liquid, powder
-
Display:
-
touchscreen TFT - LCD, resolution of 640 * 480
-
Operating Temperature:
-
-20℃~+50℃
-
Operating Humidity:
-
≤90%
-
Battery:
-
lithium battery
-
Test window:
-
12mm
-
Security:
-
standalone password manager mode

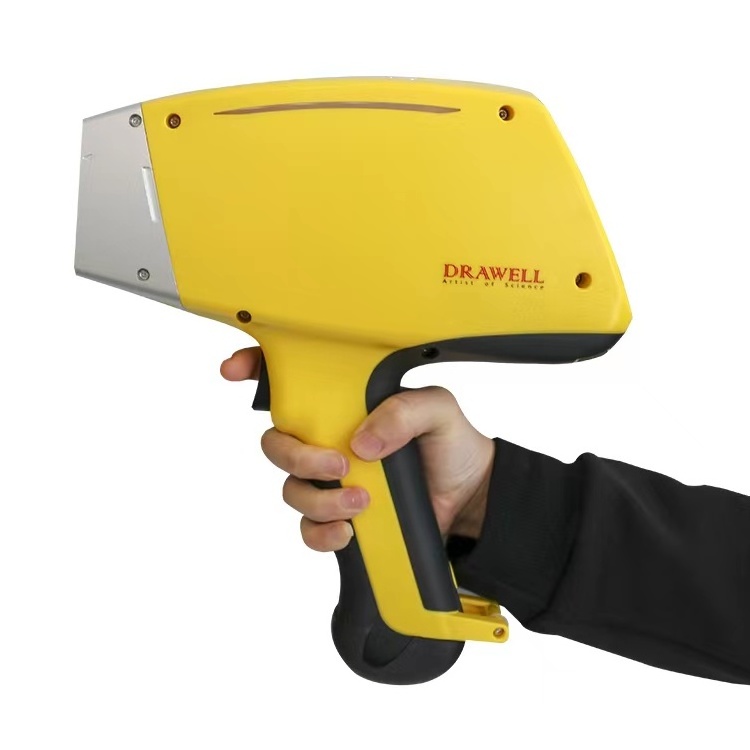

TrueX G5/G7 Handheld XRF Gold Analyzer
Application Features
1.Small, light and easy to carry.
2.High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
3.High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
4.Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.
5.Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.
6.Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; TrueX will also give out alarm when ambient temperature or humidity exceeds the scope of application.
7.On TrueX, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of products and batch number).
8.TrueX is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to environment brightness.
9.TrueX can be configured and maintained in a remote way via Internet.
10.TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.
11.TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill condition.
12.TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.
Application fields：
Nondestructive, rapid and accurate analysis of Precious Metals
Precious Metals Grade identification
Precious Metals elements and contents analyze
Pawn broking, jewelry industry, banking industry, jewelry testing center, mining industry, precious metal recycling, precious metal materials researching laboratory., etc.
Precious metal. Such as gold, Karat gold, platinum, silver.
Mixed metal or other alloy metal.
Jewelry materials. Such as ring, necklace, bracelet, watchband, belt fastener, gold ingot, gold bar, statue, coin., etc.
Elements to be Analyzed and Test Modes
|
Test modes of TrueX and elements covered
|
|
|
|
TrueX G5/G7
|
Scope of elements in standard test mode can be extended if there is such a need.
|
|
|
TrueX Gold
|
can analyze Fe,Co,Ni,Cu,Zn,Se,Ru,Rh,Pd,Ag,Cd,In,Ir,Pt,Au,Pb
|
|
Usage：
(1)karat value, percentage content for gold
(2)PT value, percentage content for platinum
(3)S value, percentage content for silver
(4)Percentage content for other alloy.
•Wide karat value for gold display from 9K to 24K and % percentage content.
•Wide PT value for platinum display from PT600 to PT1000 and % percentage content.
•Wide S value for silver display from S600 to S1000 and % percentage content.
Technical parameters and specifications
|
Weight
|
1.6Kg（with battery）.
|
|
Dimensions
|
254 x 79 x 280 mm（L x W x H）.
|
|
Excitation source
|
50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional).
|
|
Detector
|
TrueX G5 Si-PIN detector/TrueX G7 SDD detector
|
|
Range of detection
|
All elements between Mg and U.
|
|
Display system
|
Industrial resistive touch screen with screen size of 4.3".
Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness. |
|
Data processing
|
32GB memory
USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
|
Heat dissipation
|
Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again.
|
|
Safety
|
Built-in double beam technology can automatically sense whether
there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase Drawell Safety Band； |
|
Power supply system
|
Intelligent battery management through MSBUS bus, real-time
monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours. |
Products Description
Fast speed and simple operation
High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
High-performance X-ray Tube
Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
Durable body
Sealed shell, light weight, durable and sealed integrated design.
