Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BW-001
-
Processing Service:
-
customized packing
-
surface treatment:
-
pvc coated or galvanized
-
packing:
-
in bundle, with handle, with wooden spool
-
Weight/coil:
-
25kgs
Quick Details
-
Function:
-
Protective Construction
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBGB
-
Model Number:
-
BW-001
-
Processing Service:
-
customized packing
-
surface treatment:
-
pvc coated or galvanized
-
packing:
-
in bundle, with handle, with wooden spool
-
Weight/coil:
-
25kgs
12.5 Gauge 80g Zinc Coating Galvanized Barbed Wire 1320 Feet Class I
Galvanized barbed wire introduction:
Barbed wire is a kind of modern security fencing materials,Barbed wire can be installed as deterrent to the perimeter intruders with piecing and cutting razor blades mounted at the top of the wall . Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
Barbed wire types:
1) hot dipped galvanized barbed wire
2) electrical galvanized barbed wire
3) PVC barbed wire
4) PE barbed wire
Galvanized Barbed Wire Usage:
Barbed wire is mainly used in protecting of grass boundary,railway,highway,nation defence,airport,orchard,etc. It has a excellent protective performance,beautiful appearance, various patterns.
Galvanized barbed wire specifications:
| GALVANIZED BARBED WIRE | ||||
|
Wire Diameter (BWG) |
Length per KG | |||
|
Barb distance 3” |
Barb distance 4” |
Barb distance 5” |
Barb space 6” |
|
| 12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
| 13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
| 13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
|
PVC barbed wire |
Wire Diameter | Barbs’ distance | Barb length | |
| Before coating | After coating |
7.5cm - 15cm |
1.5cm - 3cm |
|
| 1.0mm - 3.5mm | 1.4mm - 4.0mm | |||
| Bwg11 - Bwg20 | Bwg8 - Bwg17 | |||
| Swg11 - Swg20 | Swg8 - Swg17 | |||
| Other sizes can be made as request | ||||

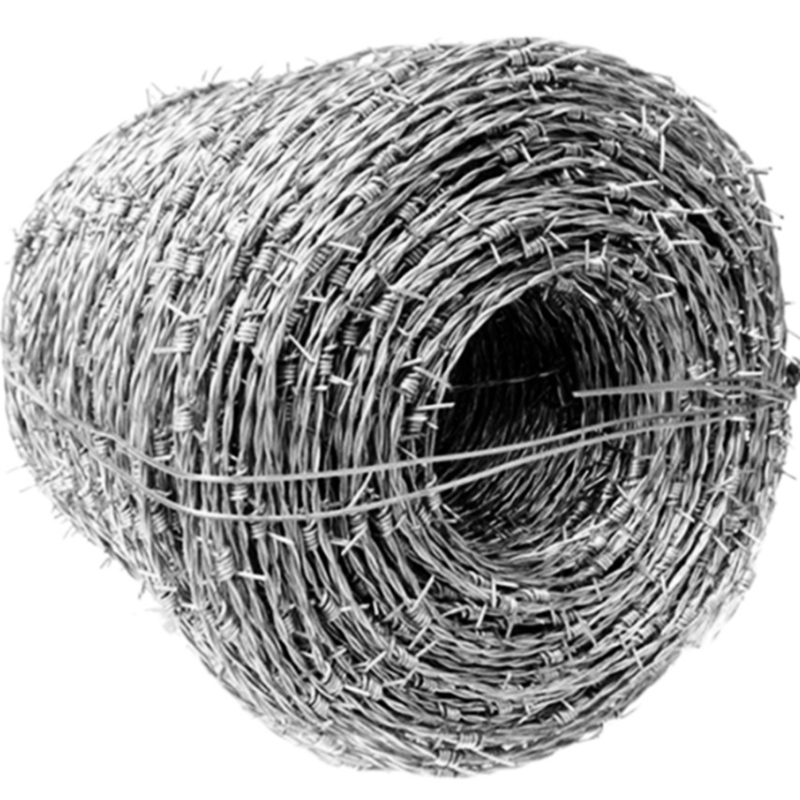

Pictures:
Packing picture:
