Quick Details
-
Item:
-
hangar tent
-
Frame structure:
-
aluminum alloy 6061-T6 / 6N01-T6
-
Available span:
-
30m
-
Eave height:
-
5m
-
Bay distance:
-
5m
-
Roof cover:
-
850g/sqm double PVC- coated polyester textile,blackout
-
Side walls:
-
650g/sqm double PVC- coated polyester textile
-
Maximum wind loading:
-
100km/h
-
Connector:
-
Q235 galvanized steel
-
Color:
-
white, others available
Quick Details
-
Brand Name:
-
COSCO
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
H1
-
Item:
-
hangar tent
-
Frame structure:
-
aluminum alloy 6061-T6 / 6N01-T6
-
Available span:
-
30m
-
Eave height:
-
5m
-
Bay distance:
-
5m
-
Roof cover:
-
850g/sqm double PVC- coated polyester textile,blackout
-
Side walls:
-
650g/sqm double PVC- coated polyester textile
-
Maximum wind loading:
-
100km/h
-
Connector:
-
Q235 galvanized steel
-
Color:
-
white, others available

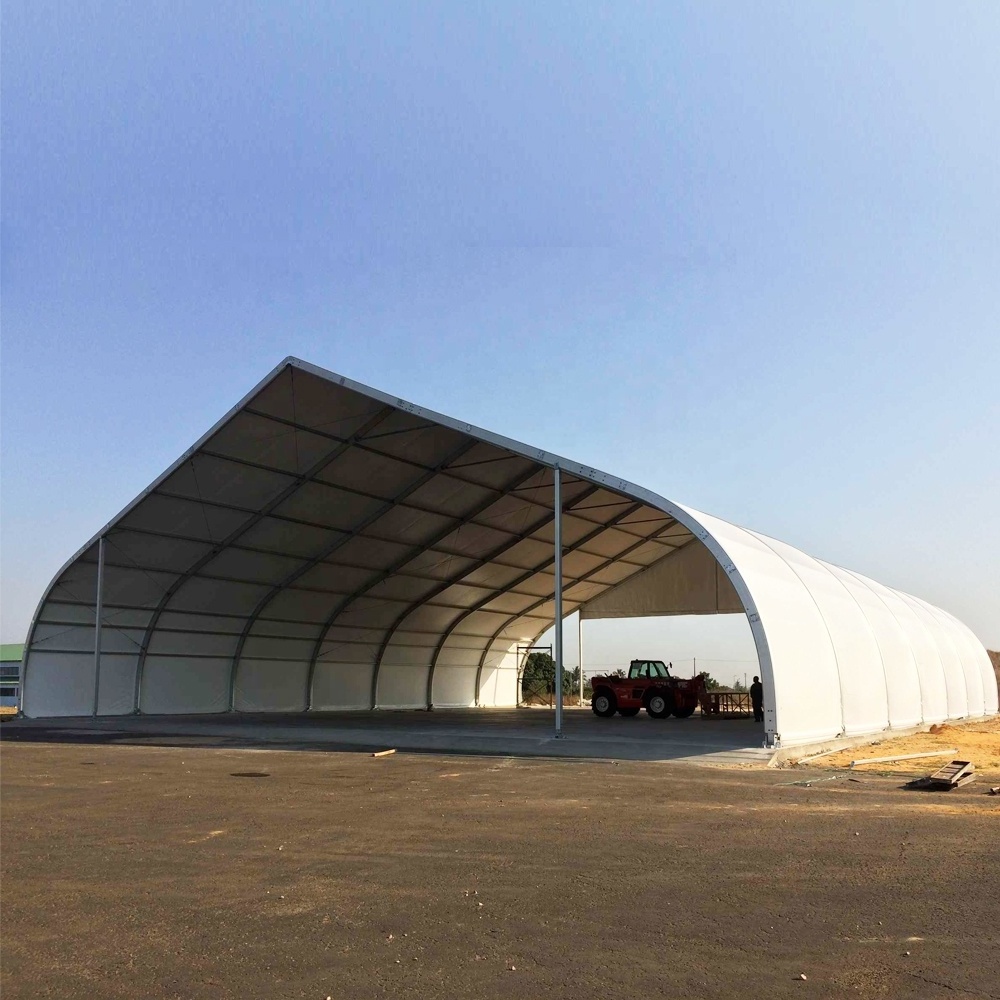

COSCO Aluminum Structure Large Curved Tent Aircraft Hangar Tent
|
Hangar tent |
|
| Aluminum alloy 6061-T6 / 6N01-T6 | |
|
Roof Cover Material |
850g/sqm double PVC- coated polyester textile, black-out |
|
Side Cover Material |
650g/sqm double PVC- coated polyester textile |
|
Connector |
Q235 galvanized steel |
|
Span Width |
Bay Distance |
Length |
Eave Height |
Ridge Height |
Main Profile |
|
|
ABT |
15~25m |
5m |
110m |
5m |
255.5x113.5x5mm |
|
|
AEBT |
15~30m |
5m |
110m |
5m |
11.6m |
255.5x113.5x5mm |
|
ATH |
15~40m |
5m |
110m |
5m |
11.6m |
255.5x113.5x5mm |
Application
- Outdoor exhibition
- Warehouse
- Logistics transshipment
- Hangar
- Military command center
- Wedding
- Season event,etc.
Feature
- Aluminium frame structure with PVC fabrics.
- 100% space usage, no pole inside.
- modular design structure, easy to install and dismantle.
- Roof: 850g/sqm double PVC fabrics, black-out; Sidewalls: 650g/sqm double PVC fabrics, translucent; both are fire retardant, UV resistance, water proof and mould proof, comply to DIN4102 B1; M2; NFPA701; CAN/ULC S-109 etc.
- One-stop inhouse manufacturing, from aluminium ingot smelting, profile extrusion, machining, anodizing, PVC fabric cutting, high-frequency welding, fabrication of hardware parts & accessories. On-site installation training available.
- strictly conducted in accordance with ISO 9001 & TS16949 management system, following documents available: fire retardant test report, wind loading report, structural analysis, installation manual, working instruction, inspection instruction etc.
C ertifications
- DIN4102 B1
- M2
- Test 2 of NFPA 701:2010
- CAN/ULC-S109
- Wind loading test report for 100km/h
Test reports availble upon request!
P ackaging I nformation
- Aluminum profiles: wrapped by plastic film, and then packed in wooden frame.
- Steel connectors: packed in wooden case.
- PVC covers: packed in PVC bags.
- Glass door & walls: packed in steel frame.
- Wooden floor: packed in wooden frame.
