Quick Details
-
Brand Name:
-
XBSY
-
Voltage:
-
380v/460v
-
Dimension(L*W*H):
-
(817-1465)*(494-888)*(498-770)mm
-
Warranty:
-
1 Year
-
Power:
-
2.2-22 kw
-
Certification:
-
API
-
Motor speed:
-
1420-1780 rpm
-
Impeller speed:
-
57-74 rpm
-
Impeller displacement:
-
2870-43760 lpm
Quick Details
-
Model Number:
-
JB/W
-
Max. Loading Capacity:
-
per model
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
XBSY
-
Voltage:
-
380v/460v
-
Dimension(L*W*H):
-
(817-1465)*(494-888)*(498-770)mm
-
Warranty:
-
1 Year
-
Power:
-
2.2-22 kw
-
Certification:
-
API
-
Motor speed:
-
1420-1780 rpm
-
Impeller speed:
-
57-74 rpm
-
Impeller displacement:
-
2870-43760 lpm

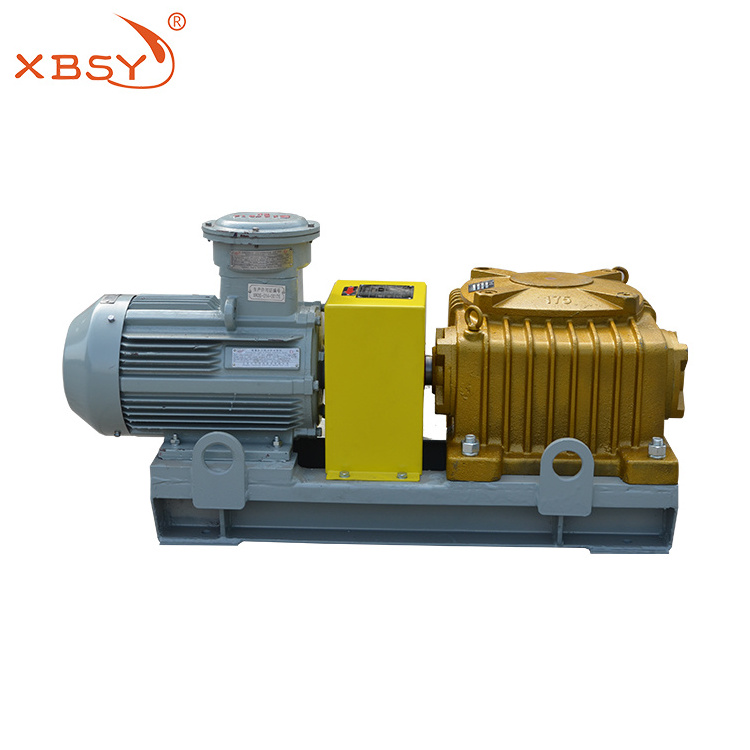

XBSY Mixing Tank Drilling Mud Blender Mixer
Product Specification:
JB/W serial agitator is an important equipment of solid control system. It is mainly used for drilling fluid mixing to prevent solid particles deposit in cycling process and make drilling fluid uniform and stable. We have agitator with single impeller and double impellers, each type has JB/W2.2,JB/W3,JB/W5.5, JB/W7.5,JB/W11,JB/W15,JB/W18.5 and JB/W22 which are suitable for power grids of 50Hz and 60 Hz.
|
Type |
JB/W2.2 |
JB/W3 |
JB/W5.5 |
JB/W7.5 |
JB/W11 |
JB/W15 |
JB/W18.5 |
JB/W22 |
|
|
Motor power(kw) |
2.2 |
3 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 | |
|
Motor speed(rpm) |
50Hz |
1420 |
1420 |
1440 |
1440 |
1460 |
1460 |
1470 |
1470 |
| 60Hz |
1740 |
1740 |
1750 |
1750 |
1760 |
1760 |
1780 | 1780 | |
|
Impeller speed(rpm) |
50Hz |
57/71 |
57/71 |
58/72 |
58/72 |
59/73 |
59/73 |
59/74 |
59/74 |
| 60Hz |
70 |
70 |
70 |
70 |
71 |
71 |
71 | 71 | |
|
Impeller displacement(lmp) |
2870 |
7800 |
11870 |
15710 |
18750 |
26685 |
34280 |
43760 | |
|
Impeller diameter(mm) |
Single impeller |
500 |
720 |
800 |
860 |
940 |
1040 |
1140 |
1240 |
| Double impeller |
/ |
upper650 lower430 |
upper720 lower480 |
upper780 lower520 |
upper900 lower600 |
upper960
lower640 |
upper1020 lower680 |
upper1140 lower760 |
|
|
Weight(Not include mix shaft and impeller) |
135 |
150 |
295 |
400 |
462 |
563 |
785 | 815 | |
