Packing
Each charger in one carton.
Carton Size:32*16*18cm
Gross Weight:2.5kg
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
CC-CV
-
Brand Name:
-
YILEIDE
-
Model Number:
-
E9
-
Input voltage and current:
-
100-240Vac
-
output voltage and current:
-
12V/30A, 24V/30A, 36V/20A, 48V/15A, 60V/12A, 72V/10A, 84V/8A, 96V/5A
-
Maximum Output Power:
-
900W
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
900w battery charger
-
Shell:
-
Aluminium profile
-
Waterproof:
-
IPx4
-
AC input:
-
85V-365V/40-70Hz
-
Max efficiency:
-
> 90%
-
Noise:
-
<40dB
-
Size:
-
205*105*68mm
-
Weight:
-
1.8kg
-
Package:
-
Foam+Cardboard
-
Warranty:
-
12 Months
Quick Details
-
Type:
-
Electric
-
Port:
-
DC
-
Material:
-
Aluminium
-
Function:
-
CC-CV
-
Brand Name:
-
YILEIDE
-
Model Number:
-
E9
-
Input voltage and current:
-
100-240Vac
-
output voltage and current:
-
12V/30A, 24V/30A, 36V/20A, 48V/15A, 60V/12A, 72V/10A, 84V/8A, 96V/5A
-
Maximum Output Power:
-
900W
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
900w battery charger
-
Shell:
-
Aluminium profile
-
Waterproof:
-
IPx4
-
AC input:
-
85V-365V/40-70Hz
-
Max efficiency:
-
> 90%
-
Noise:
-
<40dB
-
Size:
-
205*105*68mm
-
Weight:
-
1.8kg
-
Package:
-
Foam+Cardboard
-
Warranty:
-
12 Months
Shenzhen Yileide Technology Co.,ltd
Professional Battery Charger Manufacturer
"National Hi-Tech Enterprise"
Products Description

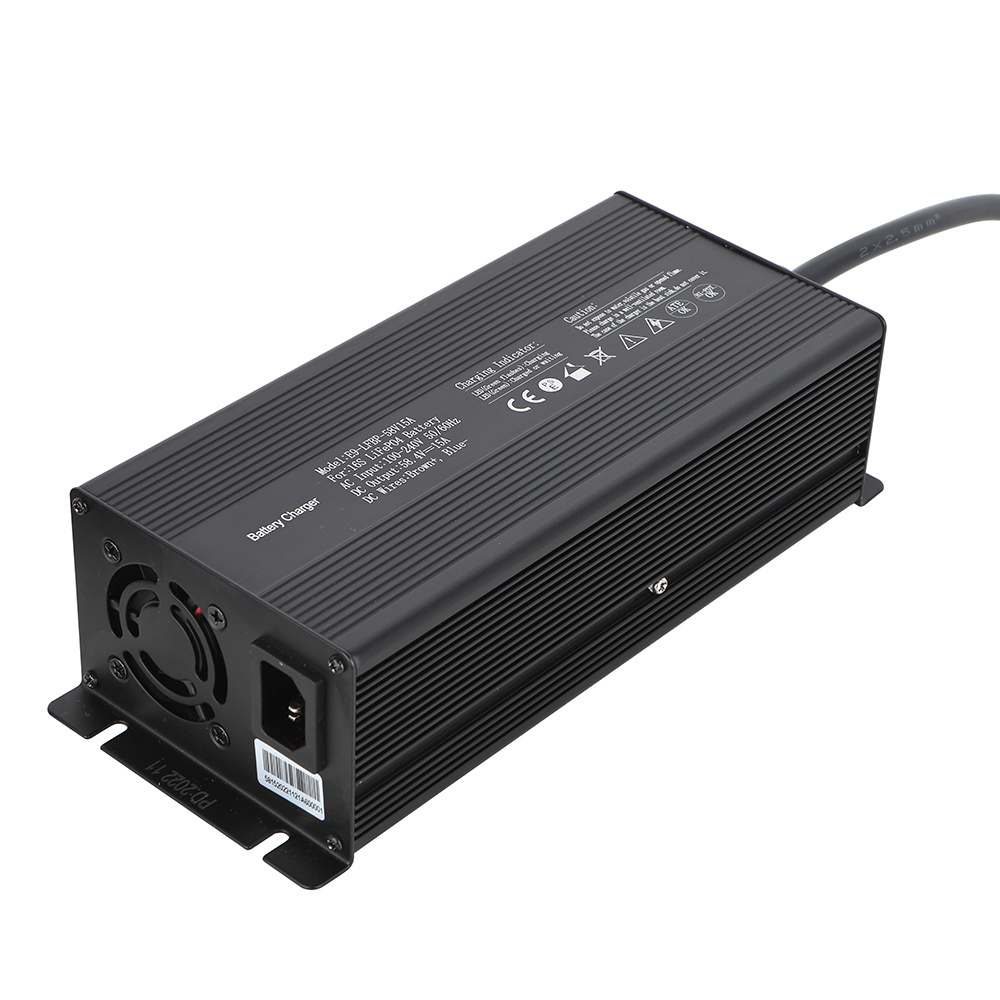

Smart battery charger
The charging process is controlled by programme,so we can set perfect charging profile (pro-charge stage,CC stage,CV stage,float charge stage,trickle charge stage and so on).
We also can add more functions:Start charge after it detect battery voltage in right range,Shutdown automatically after fully charged,Restart in some condition,CAN or RS485 communication,Reprogramme and so on.
Please
CONTACT US
for more information.
|
Model Name:
|
E9
|
Max Input Power:
|
900W
|
||
|
Shell:
|
Aluminium profile
|
Size:
|
223*105*68mm
|
||
|
AC Input:
|
100-240V/40-70Hz
|
Waterproof:
|
IPX4
|
||
|
Max Efficiency:
|
>=93%
|
Operating Temperature:
|
-20 to 65℃
|
||
|
Storage Temperature:
|
-40 to 95℃
|
Noise:
|
<=40dB
|
||
|
Cooling:
|
Active cooling with fan
|
|
|
||
|
Protection:
|
1,Input low-voltage&over-voltage protection.2,Overheat protection.3,Output empty-load protection.4,Output short&reverse protection.5,Output over-current&over-voltage protection.6,Automatic shutdown when fully charged
|
|
|
||
|
Common Output
|
|
|
|
|
|
|||||
|
Nominal Voltage
|
Lead Acid
|
LiFePO4
|
Li-ion
|
@110Vac
|
@220Vac
|
|||||
|
12V
|
14.7V
|
14.6V
|
16.8V
|
30A
|
30A
|
|||||
|
24V
|
29.4V
|
29.2V
|
29.4V
|
30A
|
30A
|
|||||
|
36V
|
44.1V
|
43.8V
|
42V
|
20A
|
20A
|
|||||
|
48V
|
58.8V
|
58.4V
|
58.8V
|
15A
|
15A
|
|||||
|
60V
|
73.5V
|
73V
|
67.2V
|
12A
|
12A
|
|||||
|
72V
|
88.2V
|
87.6V
|
84V
|
10A
|
10A
|
|||||
|
84V
|
102.9V
|
102.2V
|
100.8V
|
8A
|
8A
|
|||||
|
96V
|
117.6V
|
116.8V
|
109.2V
|
7A
|
7A
|
|||||
|
Remark:We are manufacturer!We can customize the charging profile according to your battery or your requests.
|
|
|
|
|
|
|||||
AC Cable and Connector
First of all, you can customize the AC cable.There are more options than those connectors in the picture.
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...
Wire size:3*1mm²/3*1.31mm²/3*1.5mm²....
DC Cable and Connectors
Same as AC cable, you can customize the DC cable.There are more options than those connectors in the picture.
For example:
Standard Length of DC cable: 1m/1.5m/2m/2.5m...
For example:
Wire size: 2*2.5mm² / 2*3.5mm²/2*4mm²...
Common DC connectors (We can provide more connectors than those below):
Applications
They are widely used for Golf cart, Scooters,Electric tricycles, E motorcycles, Electric lawn mower, Electric cleaning scrubber, E-forklifts, Sightseeing vehicles, E-boats, Industrial vehicles, Aerial work platform , AGV ,Energy storage system and so on.
