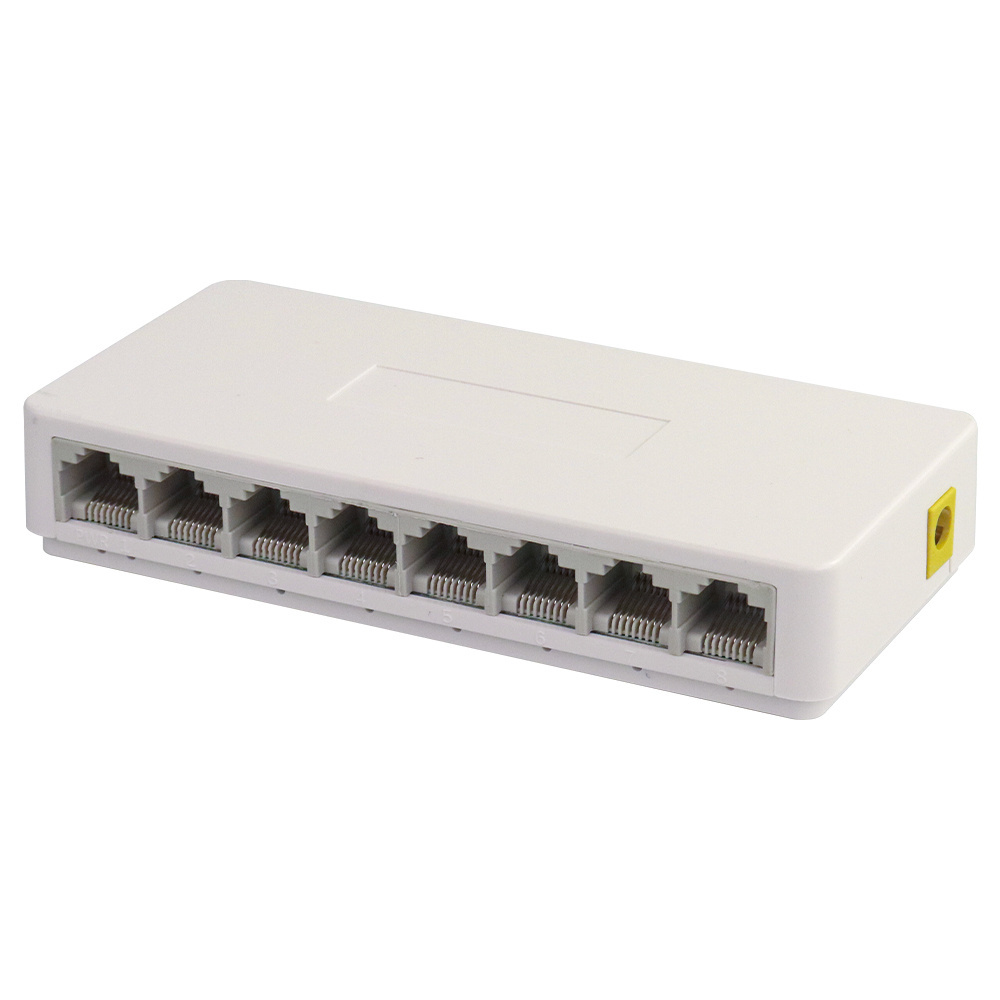

Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches
Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches
Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches
Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches
Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches
Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches
Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches
Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches

Softel Low Power Consumption automatic 10/100Mbps CCTV Gigabit Ethernet router 8 ports network switches

FOB Reference Price: Get Latest Price
≥5 Pieces
US $10.5
≥500 Pieces
US $8.5
≥1000 Pieces
US $6.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Softel
Model Number:
SW-S1508
Place of Origin:
Zhejiang, China
Product Name:
8-Port 10/100M Network Switch
Dimensions:
128*60*24mm(L*W*H)
Power Input:
AC:100~240V;50~60Hz
Power Output:
5V/1A (External power adaptor)
Interface:
8* 10/100Mbps auto-sensing RJ45 ports(Auto MDI/MDIX)
Back-bound Bandwidth:
1.6Gbps
Warranty:
1 Year

Quick Details

Transmission Rate:
10/100Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
contact us
Brand Name:
Softel
Model Number:
SW-S1508
Place of Origin:
Zhejiang, China
Product Name:
8-Port 10/100M Network Switch
Dimensions:
128*60*24mm(L*W*H)
Power Input:
AC:100~240V;50~60Hz
Power Output:
5V/1A (External power adaptor)
Interface:
8* 10/100Mbps auto-sensing RJ45 ports(Auto MDI/MDIX)
Back-bound Bandwidth:
1.6Gbps
Warranty:
1 Year

Brief Overview

SW-S1508 is designed as CCTV surveillance Network Switch for simple network environment including home, school dormitory, office and small scale surveillance system etc. Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 8*10/100M auto-sensing RJ45 port. Full duplex rate up to 200M. Auto-identify parallel lines and cross lines. Plug and play, expand high-speed network in a fast way.
Product Paramenters
Model
SW-S1508
Product Name
8-Port 10/100M Network Switch
Interface
8* 10/100Mbps auto-sensing RJ45 ports(Auto MDI/MDIX)
Feature
Gigabit non-blocking transmission, keeps network fluent.
Support MAC self learning and updating
Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x.
Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
Ethernet Port Feature
10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Forwarding Mode
Store-and-Forward
Forwarding Rate
11.9Mpps
Back-bound Bandwidth
1.6Gbps
Buffer Memory
2M
MAC Address Table
2K
Standard Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z
LED Indicator
Power indicator: PWR (Green);
Network indicator: 1-8(Link/Act)/ (Green)
Power Consumption
Standby State: 0.7W. Max power consumption ＜ 6W
Power Input
AC:100～240V;50~60Hz
Power Output
5V/1A (External power adaptor)
Dimension
128*60*24mm（L*W*H）
Operation TEMP / Humidity
-20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH non condensing
Installation Method
desktop type, wall mounted,19-inch 1U cabinet installation
Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
Certification
CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
Warranty
1 Year warranty
