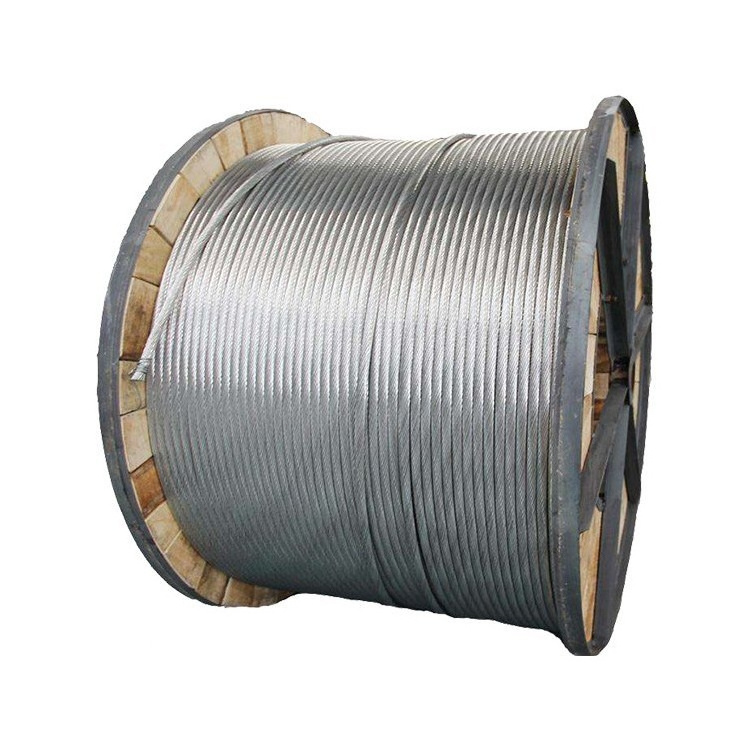

Aluminum clad steel stranded wire is made of an aluminum clad steel wire core stranded with one or more layers of single aluminum clad steel wire in spiral. Opposite stranding direction between neighboring layers provides higher mechanical strength and corrosion resistance. Primarily, it's applied to overhead power transmission in electric system. Our aluminum clad steel stranded wire portfolio includes products for overhead power line, long span, aluminum stranded wire for aluminum clad steel core, aluminum alloy stranded wire for aluminum clad steel core and heat-resistant aluminum alloy stranded wire for aluminum clad steel core.
- Product Details
- {{item.text}}
Quick Details
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kunbian
-
Model Number:
-
ACS stranded Wire
-
Rated voltage:
-
5 mΩ/m
-
Diameter:
-
0.08-8.00 mm
-
Certification:
-
ISO9001
-
MOQ:
-
100KG
-
Delivery time:
-
7-20 Days
-
Resistivity:
-
0.44±0.05
-
Treatment:
-
Hydrogen Annealing
-
Technology:
-
Rolling and Drawing
Quick Details
-
Application:
-
Heating, Heating, household electrical application
-
Conductor Material:
-
Copper Clad Aluminum
-
Conductor Type:
-
Solid
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kunbian
-
Model Number:
-
ACS stranded Wire
-
Rated voltage:
-
5 mΩ/m
-
Diameter:
-
0.08-8.00 mm
-
Certification:
-
ISO9001
-
MOQ:
-
100KG
-
Delivery time:
-
7-20 Days
-
Resistivity:
-
0.44±0.05
-
Treatment:
-
Hydrogen Annealing
-
Technology:
-
Rolling and Drawing
Products Description
Specification and Technology date
|
Approximate Properties of Hard-drawn
20.3%
Conductivity Aluminum-Clad steel
Wire
(20.3%)
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Nominal Dia
|
Nominal Dia
|
Size
|
Calculated cross sectional area
|
Min tensile
strength |
Min tensile strength |
Calculated
breaking load |
Mincoating
thickness |
D.C resistance
at 20ºC≤ |
Weight
|
|||||||||
|
in.
|
mm
|
AWG
|
mm2
|
Mpa
|
psi
|
kn
|
mm
|
Ω/km
|
kg/km
|
|||||||||
|
0.2043
|
5.189
|
4
|
21.150
|
1070
|
155000
|
22.60
|
0.259
|
4.009
|
139.32
|
|||||||||
|
0.1880
|
4.775
|
4
|
17.908
|
1100
|
160000
|
19.70
|
0.239
|
4.735
|
118.01
|
|||||||||
|
0.1819
|
4.620
|
5
|
16.767
|
1140
|
165000
|
18.10
|
0.231
|
5.056
|
110.48
|
|||||||||
|
0.1729
|
4.392
|
5
|
15.150
|
1170
|
170000
|
17.73
|
0.220
|
5.597
|
99.84
|
|||||||||
|
0.1620
|
4.115
|
6
|
13.296
|
1210
|
175000
|
16.00
|
0.206
|
6.375
|
87.61
|
|||||||||
|
0.1549
|
3.934
|
6
|
12.155
|
1240
|
180000
|
15.07
|
0.197
|
6.976
|
80.10
|
|||||||||
|
0.1443
|
3,665
|
7
|
10.549
|
1280
|
185000
|
13.50
|
0.183
|
8.038
|
69.47
|
|||||||||
|
0.1369
|
3.477
|
7
|
9.495
|
1310
|
190000
|
12.44
|
0.174
|
8.931
|
62.57
|
|||||||||
|
0.1285
|
3.264
|
8
|
8.366
|
1340
|
195000
|
11.20
|
0.163
|
10.135
|
55.15
|
|||||||||
|
0.1144
|
2.906
|
9
|
6.633
|
1340
|
195000
|
8.92
|
0.145
|
12.783
|
43.70
|
|||||||||
|
0.1019
|
2.588
|
10
|
5.260
|
1340
|
195000
|
7.07
|
0.129
|
16.116
|
34.66
|
|||||||||
|
0.0907
|
2.304
|
11
|
4.170
|
1340
|
195000
|
5.61
|
0.115
|
20.323
|
27.48
|
|||||||||
|
0.0808
|
2.052
|
12
|
3.309
|
1340
|
195000
|
4.45
|
0.103
|
25.628
|
21.80
|
|||||||||
|
Approximate Properties of Hard-drawn
27%
Conductivity Aluminum-Clad steel
Wire
(27%)
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Nominal Dia
|
Nominal Dia
|
Size
|
Calculated cross sectional area
|
Min tensile
strength |
Min tensile strength |
Calculated
breaking load |
Mincoating
thickness |
D.C resistance
at 20ºC≤ |
Weight
|
|||||||||
|
in.
|
mm
|
AWG
|
mm2
|
Mpa
|
psi
|
kn
|
mm
|
Ω/km
|
kg/km
|
|||||||||
|
0.2043
|
5.189
|
4
|
21.150
|
862
|
125000
|
18.20
|
0.363
|
3.019
|
124.99
|
|||||||||
|
0.1880
|
4.775
|
4
|
17.908
|
889
|
129000
|
15.92
|
0.334
|
3.566
|
105.83
|
|||||||||
|
0.1819
|
4.620
|
5
|
16.767
|
917
|
133000
|
15.40
|
0.323
|
3.809
|
99.09
|
|||||||||
|
0.1729
|
4.392
|
5
|
15.150
|
945
|
137000
|
14.32
|
0.307
|
4.215
|
89.54
|
|||||||||
|
0.1620
|
4.115
|
6
|
13.296
|
972
|
141000
|
12.90
|
0.288
|
4.803
|
78.57
|
|||||||||
|
0.1549
|
3.934
|
6
|
12.155
|
1000
|
145000
|
12.16
|
0.275
|
5.254
|
71.84
|
|||||||||
|
0.1443
|
3,665
|
7
|
10.549
|
1034
|
150000
|
10.90
|
0.257
|
6.053
|
62.33
|
|||||||||
|
0.1369
|
3.477
|
7
|
9.495
|
1062
|
154000
|
10.08
|
0.243
|
6.726
|
56.12
|
|||||||||
|
0.1285
|
3.264
|
8
|
8.366
|
1076
|
156000
|
9.00
|
0.228
|
7.632
|
49.43
|
|||||||||
|
0.1144
|
2.906
|
9
|
6.633
|
1076
|
156000
|
7.13
|
0.203
|
9.626
|
39.19
|
|||||||||
|
0.1019
|
2.588
|
10
|
5.260
|
1076
|
156000
|
5.66
|
0.181
|
12.140
|
31.08
|
|||||||||
|
0.0907
|
2.304
|
11
|
4.170
|
1076
|
156000
|
4.48
|
0.161
|
15.312
|
24.63
|
|||||||||
|
0.0808
|
2.052
|
12
|
3.309
|
1076
|
156000
|
3.56
|
0.144
|
19.299
|
19.55
|
|||||||||
|
Approximate Properties of Hard-drawn
30
%
Conductivity Aluminum-Clad steel
Wire
(30%)
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Nominal Dia
|
Nominal Dia
|
Size
|
Calculated cross sectional area
|
Min tensile
strength |
Min tensile strength |
Calculated
breaking load |
Mincoating
thickness |
D.C resistance
at 20ºC≤ |
Weight
|
|||||||||
|
in.
|
mm
|
AWG
|
mm2
|
Mpa
|
psi
|
kn
|
mm
|
Ω/km
|
kg/km
|
|||||||||
|
0.2043
|
5.189
|
4
|
21.150
|
703
|
102000
|
14.90
|
0.389
|
2.717
|
118.64
|
|||||||||
|
0.1880
|
4.775
|
4
|
17.908
|
731
|
106000
|
13.09
|
0.358
|
3.209
|
100.46
|
|||||||||
|
0.1819
|
4.620
|
5
|
16.767
|
758
|
110000
|
12.70
|
0.347
|
3.429
|
94.06
|
|||||||||
|
0.1729
|
4.392
|
5
|
15.150
|
786
|
114000
|
11.91
|
0.329
|
3.793
|
84.99
|
|||||||||
|
0.1620
|
4.115
|
6
|
13.296
|
786
|
118000
|
10.50
|
0.309
|
4.321
|
74.59
|
|||||||||
|
0.1549
|
3.934
|
6
|
12.155
|
814
|
122000
|
9.89
|
0.295
|
4.728
|
68.19
|
|||||||||
|
0.1443
|
3,665
|
7
|
10.549
|
841
|
126000
|
8.87
|
0.275
|
5.446
|
59.18
|
|||||||||
|
0.1369
|
3.477
|
7
|
9.495
|
869
|
128000
|
8.25
|
0.261
|
6.053
|
53.27
|
|||||||||
|
0.1285
|
3.264
|
8
|
8.366
|
883
|
128000
|
7.38
|
0.245
|
6.870
|
46.95
|
|||||||||
|
0.1144
|
2.906
|
9
|
6.633
|
883
|
128000
|
5.85
|
0.218
|
8.668
|
37.20
|
|||||||||
|
0.1019
|
2.588
|
10
|
5.260
|
883
|
128000
|
4.47
|
0.194
|
10.922
|
29.52
|
|||||||||
|
0.0907
|
2.304
|
11
|
4.170
|
883
|
128000
|
3.68
|
0.173
|
13.79
|
23.38
|
|||||||||
|
0.0808
|
2.052
|
12
|
3.309
|
883
|
128000
|
2.92
|
0.154
|
17.373
|
18.57
|
|||||||||
Features:
(1) Aluminum clad steel wire size and performance can be adjusted in a wide range, a wide range of use.
(2) Metallurgical bonding, good strength, which is conducive to aluminum clad steel wire in the strength of the advantages of the play.
(3) Compared with galvanized steel wire, it has better heat resistance, because the melting point of aluminum is higher than that of zinc, and the melting point of steel is higher than that of aluminum.
(4) Clad steel wire has good corrosion resistance. Used on overhead transmission lines, there is no problem of galvanic corrosion.
(5) The section of the wire can be made into complex shapes. For example, the electrified railroad with aluminum clad steel contact line (tram line), its shape is "8" shape.
(6) Aluminized steel wire and galvanized steel wire, the same as the hot dip method of manufacturing, is a reinforcing material.
Scope of Application
Aerial electricity transmission, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line and self-damping conductor line, etc.
Why Choose Us
Certifications
Packing & Delivery
Packaging methods include plastic film packaging, carton packaging and so on.
Plastic film packaging using a sealing machine for sealing, to ensure that the wire sealing and moisture-proof;
carton packaging will be packaged wire into the carton, and then use tape or sealing glue sealing.
FAQ
Q1:
Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2:
Do you have your own R&D team ?
A2: Yes, we can customize products as your requirements.
Q3:
Do you provide free samples ?
A3: Yes, we provide free sample for weight within 1Kg. Customer need to take the international express freight.
Q4:
Can we be your distributor ?
A4: We are looking for distributor and agent all over the world.
Q5:
How’s the package ?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6:
How’s the delivery time ?
A6: It depends on the quantity you need, 1-25 days usually.
