Quick Details
-
Material:
-
PU, Plastisol
-
Size:
-
OD: 68mm, 115mm
-
Weight (KG):
-
1.5 kg
-
Product Name:
-

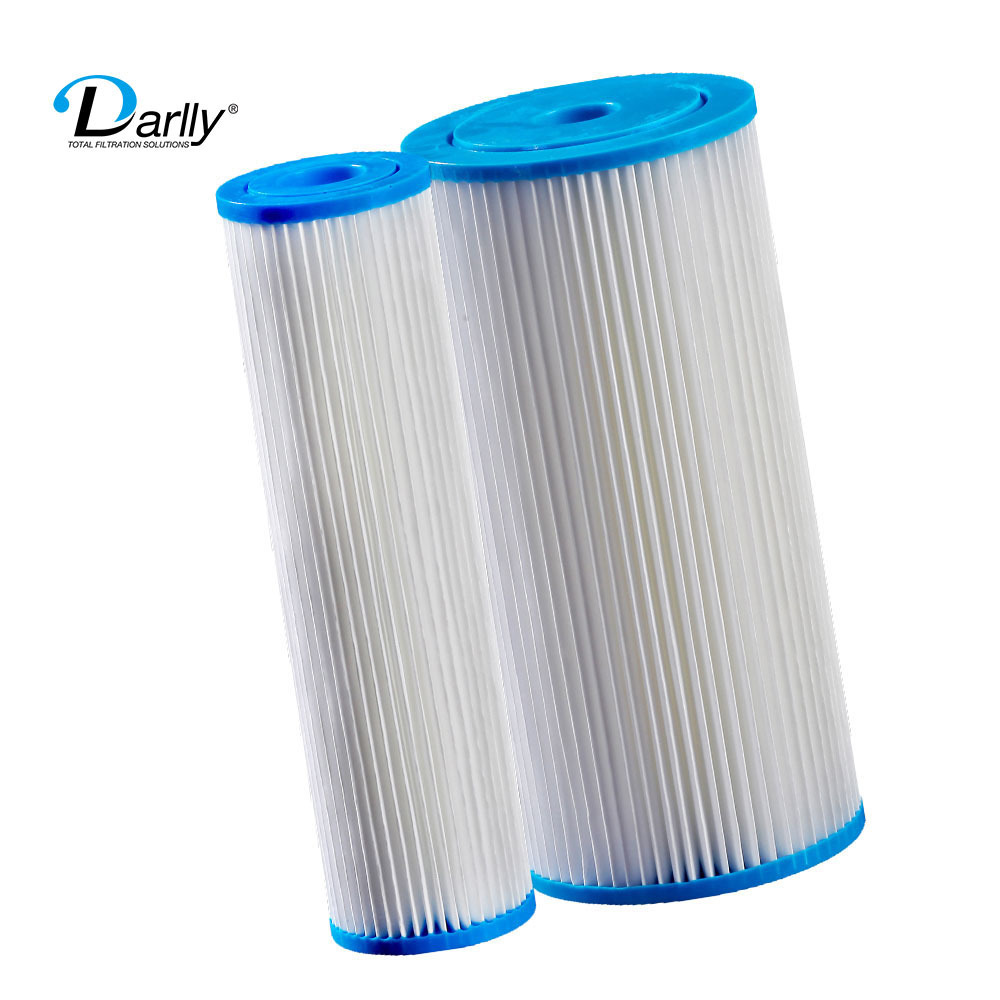

filter cartridge
-
Model Number:
-
BDL
-
Filter Media:
-
Polyester, PP
-
Core:
-
PP
-
Inner Diameter:
-
28mm
-
OD:
-
68mm, 115mm
-
Length:
-
9.75", 9.87', 10", 20", 30", 40"
-
Removal Rating:
-
1μm, 5μm, 10μm, 20μm, 50μm
-
Application:
-
Water treatment / Water Purification
-
Highest Temperature:
-
37.8
Quick Details
-
Core Components:
-
filter
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Darlly
-
Material:
-
PU, Plastisol
-
Size:
-
OD: 68mm, 115mm
-
Weight (KG):
-
1.5 kg
-
Product Name:
-
filter cartridge
-
Model Number:
-
BDL
-
Filter Media:
-
Polyester, PP
-
Core:
-
PP
-
Inner Diameter:
-
28mm
-
OD:
-
68mm, 115mm
-
Length:
-
9.75", 9.87', 10", 20", 30", 40"
-
Removal Rating:
-
1μm, 5μm, 10μm, 20μm, 50μm
-
Application:
-
Water treatment / Water Purification
-
Highest Temperature:
-
37.8
Around 20years expert experience give us numerous experience and confidence to say "Yes, we can do".
Let's work together to design your particular filters.
Pls kindly "
Follow us
" first, then Click"
Send Inquiry
" or "
Contact Supplier
", our mission is make your image to the real filter.
Good thing will happen while your click.
Products Description
CTO Series Extruded Carbon Block Cartridge Filters are made of activated carbon block which is manufactured according to strictly extruded & controlled engineering processes. Carbon block cartridges are effective in removing unpleasant taste, odor , undesirable color chlorine in water. Carbon block cartridge filters provide economical solution for a wide range of residential, commercial and industrial water filtration processing.
—————
Specifications
—————
|
Material of Constructions
|
|
|
|
Media
|
Polyester, Polypropylene (PP)
|
|
|
End cap
|
PU, Plastisol
|
|
|
Core
|
Polypropylene (PP)
|
|
|
Dimension
|
|
|
|
Outer Diameter
|
68mm, 115mm
|
|
|
Inner Diameter
|
28mm
|
|
|
Length
|
9.75”, 9.87”, 10”, 20”, 30“, 40”
|
|
|
Performance
|
|
|
|
Max. Operating Temperature
|
37.8℃
|
|
|
Max. Operating DP
|
4.0Bar
|
|
|
|
Flow Rate per 10” Cartridge : 3~10GPM, Depends on different removal rating
|
|
—————
Feature
—————
—————
Application
—————
• Potable & Process
• Water Food and Beverage
• Plating Solutions
• Chemical Processing
• Pre or Post Filter for RO Systems
• Water purification Systems
—————
Quality
—————
—————
Food Contact Compliance
—————
