Quick Details
-
Voltage:
-
380V
-
Rated Power:
-
1kw
-
Dimension(L*W*H):
-
1000mm1100mm1600mm
-
Year:
-
new
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
1000kg
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
MINDER
-
Marketing Type:
-
New Product 2023
-
Voltage:
-
380V
-
Rated Power:
-
1kw
-
Dimension(L*W*H):
-
1000mm1100mm1600mm
-
Year:
-
new
-
Weight (KG):
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
1000kg
-
Certification:
-
ce
Details

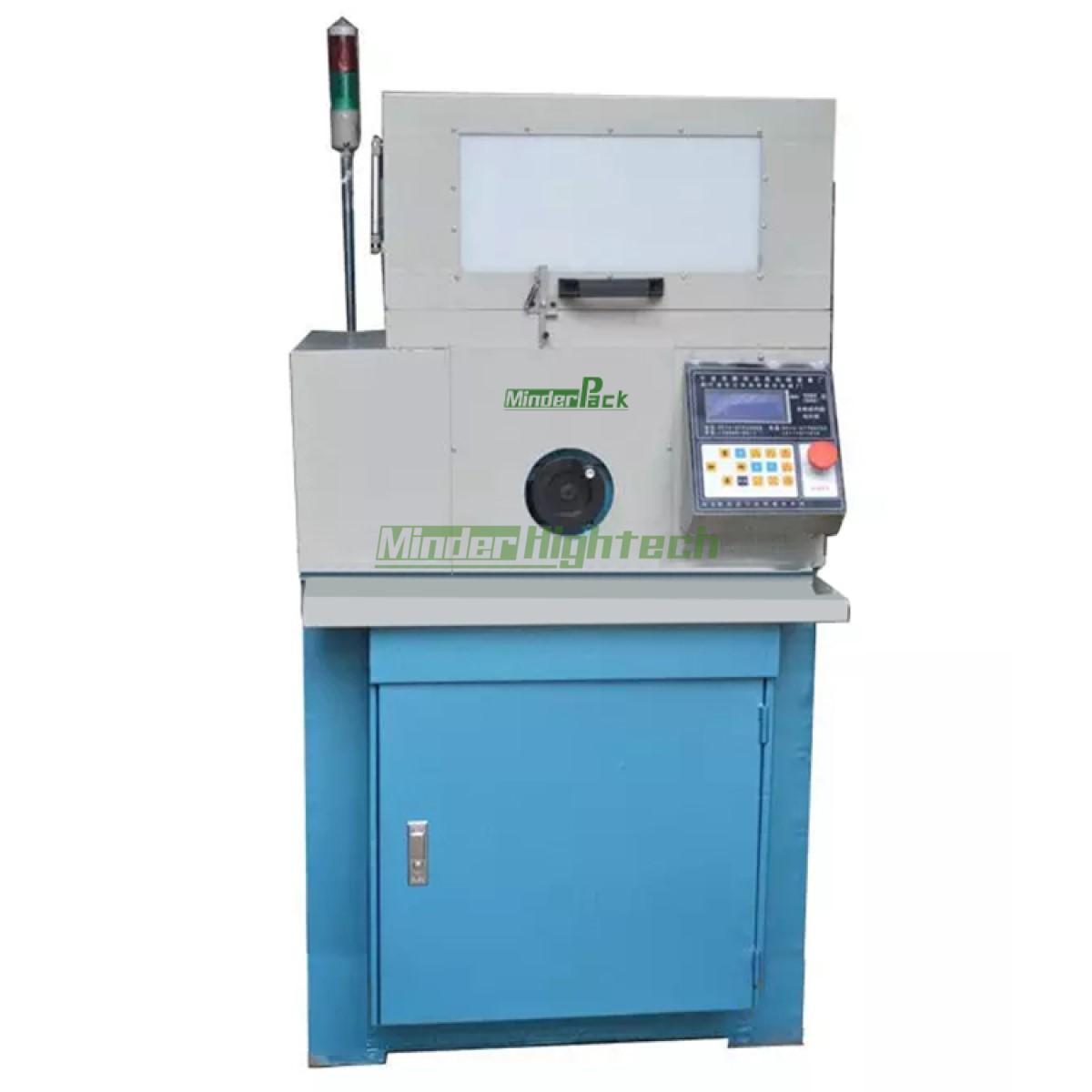

Inner diameter saw machine is using inside circle to cut a variety of semiconductors, crystal, ceramic, NdFeB magnetic material.
Installed in the spindle, the edge-type Diamond blade cutter is high-speed rotating, the table was feeding by computer control of horizontal and vertical movement, the material on the fixture of the table was cut into the required product.
We have the semi-automatic/fully automatic inner circle clicking machine, within a circle slicer two kinds of specifications, a variety of models.
For the Automatic Slicer inner circle. a worker can operate about 16 units slicer at the same time.
Main technical parameters:
MD-J5060
Max machining size(mm) : φ60 ×80 mm
Cutting speed (cm²/mm):3-6(cm²mm)
Degree of balance sheets by cutting deviation(mm) : ±0.005mm
Cutting film thickness(mm) : ≥0.30
The thin-cut tolerance (mm) : ±0.015mm
Horizontal stroke(mm):120mm
Longitudinal travel(mm) : 100mm
Longitudinal degrees:0-100Grid, each grid To 0.01,Each turn a lap in order to1mm
Spindle Electrical :3 Phase 380V 0.75kw
Spindle Speed (r/min) : 3500Rev / min
Adjust the amount of work table :
Horizontal angle : ±45º
Pitch angle of elevation : ±10º
Vertically(mm):24
Cooling tank capacity(kg) : 50kg
Cooling tank motor : 3 Phase 380V 0.12kw 2780r/min
Power : Three-phase four-wire 50Hz 380V
Dimensions(mm) : 1000 ×1100 ×1600
Weight(kg) :~ 1000(kg)
MD-J5090
Main technical parameters:
Max machining size(mm) : φ95 ×80 mm
Cutting speed cm²/mm):3-6cm²/mm)
Degree of balance sheets by cutting deviation(mm) : ±0.005mm
Cutting film thickness(mm) : ≥0.30
The thin-cut tolerance(mm) : ±0.005mm
Horizontal stroke(mm):120mm
Longitudinal travel(mm) : 110mm
Spindle Electrical :3 Phase 0.75kw
Spindle Speed (r/min) :28 00Rev / min
Adjust the amount of work clamp :
Horizontal angle : ±45º
Pitch angle of elevation : ±10º
Vertically(mm):20
Cooling tank capacity(kg) : 50kg
Cooling tank motor : 3 Phase 0.12kw 2780r/min
Power : Three-phase four-wire 50Hz 380V
Dimensions(mm) : 1130 ×850 ×1500
Weight(kg) :~ 1400(kg)
Click here or below photo to see all the inner circle slicing machine to choose a suitable one.
