Quick Details
-
Brand Name:
-
MONA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1*0.7*0.8
-
Power (kW):
-
5.5
-
Weight (T):
-
0.3
-
Product name:
-
Waste Plactics Shredder
-
Application:
-
Waste Metal Plastic Wood Bottle Film
-
Keyword:
-
Double-shaft shredder machine
-
Certification:
-
CE
Quick Details
-
Max.Production Capacity (kg/h):
-
10000
-
Place of Origin:
-
Other Country
-
Production Capacity (kg/h):
-
100 - 400 kg/h
-
Brand Name:
-
MONA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1*0.7*0.8
-
Power (kW):
-
5.5
-
Weight (T):
-
0.3
-
Product name:
-
Waste Plactics Shredder
-
Application:
-
Waste Metal Plastic Wood Bottle Film
-
Keyword:
-
Double-shaft shredder machine
-
Certification:
-
CE
TPU Rubber Plastic Double Shaft Shredder Cutting Machine/Garbage,Plastic Rubber Shredder
Introduction of Double shaft rubber tire shredder machine
The Double shaft rubber tire shredder machine is widely used to crushing, tearing and pressing the material to achieve reduced size, which is mainly used for packing tape shredder, tires, films, bags, and other plastic waste nets food waste,wood waste,coconut shell,eft,etc.
Double shaft shredder wood With dual-axis independent drive, unique knife shaft structure and four-angle rotary tool, in the low-speed high-torque production process, there will be no winding axis, or stuck equipment phenomenon, thereby improving the production efficiency.
According to different capacity and material,The double shaft crushing machine can be custom ize d.
Blades can be thick or thin,can use big blades or small blades,etc
Features of double shaft shredder machine
1. Heavy moving knife, high crushing efficiency moving knife and fixed knife are cast with alloy steel, strong, long service life, thick iron frame plate, can resist high torque, very strong.
2. Easy to adjust, low maintenance cost, economical and durable.
3. Unit output is the theoretical throught put, and the specific use shoudl be based on the actual density and shape of crushed matter.
The Application of shredding machine
Used cars, bicycles, shelves, motorcycle frames, color coated tiles, big steam drums, metal blocks, steel bars wires, cables, waste electrical appliances, light metal materials, paint barrels, and so on.
P arameter of Double shaft rubber tire shredder machine
|
Model |
MN-400 |
MN- 800 |
MN- 1000 |
MN- 1200 |
MN- 1500 |
MN- 2000 |
|
Main power (kw) |
5.5 |
11 |
55*2 |
75*2 |
90*2 |
110*2 |
|
Spindle speed(R/M) |
18-20 |
14-16 |
18-20 |
18-20 |
14-16 |
14-16 |
|
Capacity(t/h) |
0.4 |
5-8 |
8-10 |
6-15 |
8-18 |
10-25 |
|
Blades Qty(pc) |
14 |
22 |
30 |
28 |
30 |
40 |
|
Blades dia. |
260 |
400 |
420 |
450 |
500 |
560 |
|
Finished size(cm) |
3-10 |
3-10 |
3-10 |
3-10 |
3-10 |
3-10 |
|
Silo size(mm) |
40 0*400 |
1000*1000 |
1200*1000 |
1400*1000 |
2000*2000 |
2300*2000 |
|
Dimension (m) |
1* 0.7 * 0.8 |
2.8*2*1.9 |
3*2*1.9 |
3.2*2*1.9 |
4*1.7*2.4 |
8*2.5*2.4 |
|
Weight(t) |
0.3 |
1.6 |
5 |
6 |
12 |
15 |

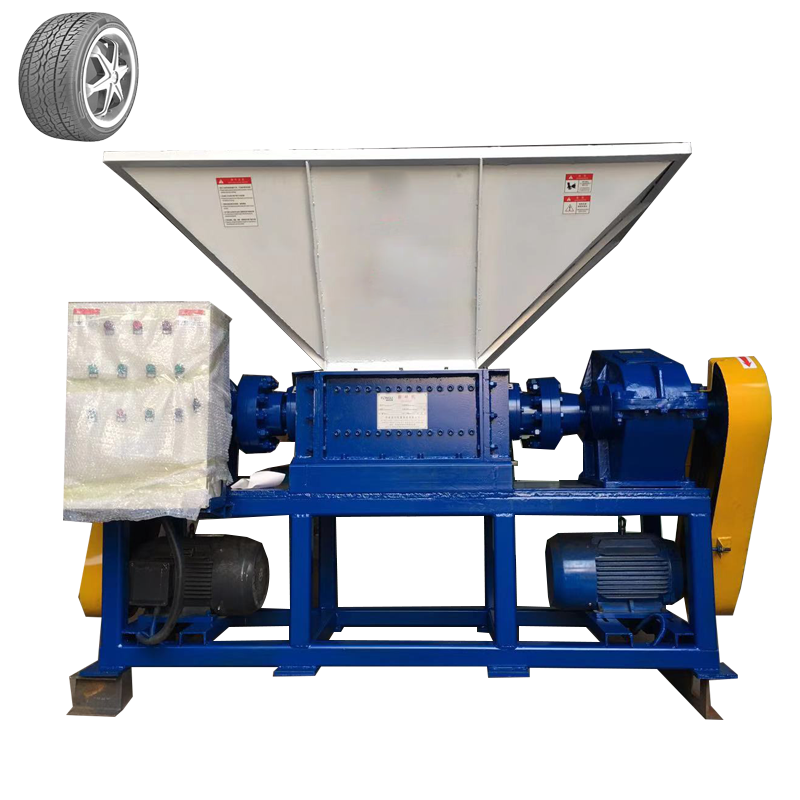

Picture show of rubber tire shredder machine
