Quick Details
-
Model Number:
-
FLD971X-16
-
Brand Name:
-
FOLS
-
Name:
-
AT pneumatic actuator
-
Certification:
-
ROHS,CE,ISO9001
-
rotation angle:
-
0-90 degree
-
Acting Mode:
-
Double Acting, Single Acting (Spring Return)
-
Air Supply Pressure:
-
2.5 to 8bar
-
Control Mode:
-
On Off Type or Regulation Type
-
Prtection:
-
IP65
-
Material:
-
WCB, Stainless Steel, Cast steel
Quick Details
-
Port Size:
-
Standard
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FLD971X-16
-
Brand Name:
-
FOLS
-
Name:
-
AT pneumatic actuator
-
Certification:
-
ROHS,CE,ISO9001
-
rotation angle:
-
0-90 degree
-
Acting Mode:
-
Double Acting, Single Acting (Spring Return)
-
Air Supply Pressure:
-
2.5 to 8bar
-
Control Mode:
-
On Off Type or Regulation Type
-
Prtection:
-
IP65
-
Material:
-
WCB, Stainless Steel, Cast steel

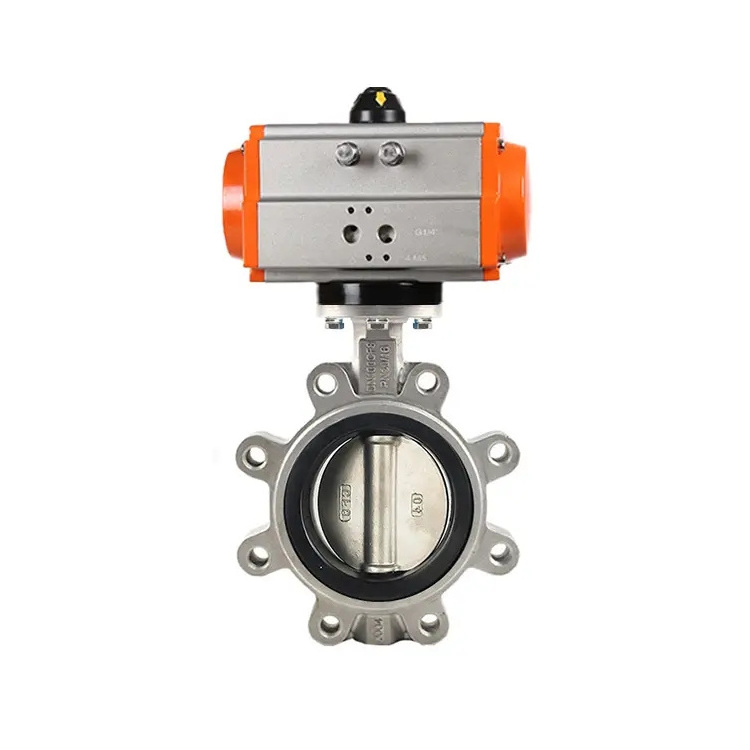

4 inch Cast Iron Semi ANSI Air Control Lug Butterfly Valve Water SS Disc Pneumatic Control Butterfly Valve
Advantages:
• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.
• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
•
German imported manufacturing facilities
, 100% Q.C passed before shipping, quality assured. Industrial standard
1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.
• OEM / ODM service available.
Technical Specification
Applicable Standards:
GB, DIN, ANSI, ASME, JIS, API
Size Range:
DN50 to DN300, 2" to 12"
Acting Mode:
Double Acting, Sping Return (Single Acting) are Available: Air Supply Pressure 2.5 to 8bar
Operating Pressure:
Low Pressure, 1.0 to 1.6MPa (145 to 232PSI)
Output Torque:
14 to 1170Nm
Lifespan:
1,000,000 (1 Million) Times
Angle of Rotation:
90° ±4°
Shell Material:
Aluminum Alloy Extruded
Body Material:
Cast Iron, Stainless Steel are Available
Disc Material:
Cast Iron, Stainless Steel are Available
Sealing Material:
NBR, EPDM, FKM (VITON), PTFE
Structure:
Midline
End Connection:
Lug, Wafer, Flange End
Applicable Media:
Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media:
Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Ambient Temp.:
Standard Type: -20 to +80°C (-4 to 176°F)
Optional Accessories:
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application:
Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries
Technical Parameters of Pneumatic actuator:
Pneumatic Actuator
2. Air supply pressure: The Min supply pressure is 3 Bar, The Max supply pressure is 8 Bar
3. Operating temperature:
Standard:-20°C~+80C
Lowtemperature:-40°C~+80°C
High temperature:-20°C~+160°C
4. Travel adjustment: Have adjustment range of ±5 for the rotation at O°and 90°
5. Useoccasions: Indoor or outdoor
