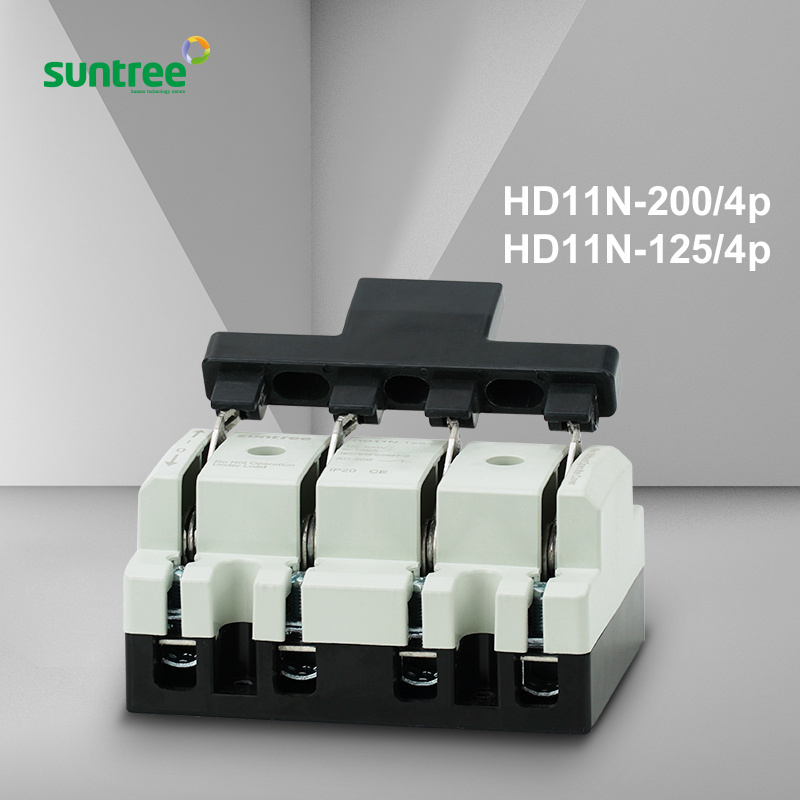

HD11N series knife switch, suitable for
AC 50Hz 400/500/690V
, rated service current
up to 200A
, for PV grid-connected box and other complete sets of power distribution equipment, as a power and load isolation switch, and with visual contact position and disconnection point, to ensure the circuit and equipment maintenance and operator safety use.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Suntree
-
Model Number:
-
HD11N
-
Max. Current:
-
200A
-
Product name:
-
Knife switch for PV grid-connected box
-
Rated current:
-
200A
-
Rated voltage:
-
400V/500V/690V
-
Rated frequency:
-
50/60Hz
-
Pole:
-
3P/4P
-
Material:
-
Copper
-
Use environment temperature:
-
-5℃~+50℃
-
Official website:
-
www.chinasuntree.com
-
Certification:
-
CCC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
AC 690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
HD11N
-
Max. Current:
-
200A
-
Product name:
-
Knife switch for PV grid-connected box
-
Rated current:
-
200A
-
Rated voltage:
-
400V/500V/690V
-
Rated frequency:
-
50/60Hz
-
Pole:
-
3P/4P
-
Material:
-
Copper
-
Use environment temperature:
-
-5℃~+50℃
-
Official website:
-
www.chinasuntree.com
-
Certification:
-
CCC
Products Description
Knife switch for PV grid-connected box
Product Paramenters
|
Product name
|
Knife switch for PV grid-connected box
|
|
|
|
Conventional thermal current Ith(A)
|
125
|
200
|
|
|
Rated service current (Ie) (A)
|
16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A
|
80A, 100A, 125A, 160A, 200A
|
|
|
Rated service voltage Ue(V)
|
400V/500V/690V
|
400V/500V/690V
|
|
|
Rated insulation voltage Ui (V)
|
1000
|
1000
|
|
|
Rated impulse withstand voltage (KV)
|
8
|
8
|
|
|
1S short time withstand current (KA)
|
3
|
5
|
|
|
Utilization category
|
AC-20B
|
AC-20B
|
|
|
Rated duty
|
Long term service
|
Long term service
|
|
