Packed in woven geotextile and strength belt or PE film Or packed according to customers' requirements such as mark the company
Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Outdoor Construction Road Way, Earthwork Apllication
-
Design Style:
-
Industrial
-
Place of Origin:
-
SHN
-
Brand Name:
-
DINGKUN
-
Model Number:
-
DK-Geocell
-
Product name:
-
Geocell Gravel Grid
-
Material:
-
HDPE
-
Surface of geocell:
-
Smooth Textured
-
Color:
-
Black Yellow White Green
-
Thickness:
-
1.1mm-1.5mm
-
Welding distance:
-
330mm-1000mm
-
Height:
-
50mm-300mm
-
Length:
-
Within 10
-
Keyword:
-
Soil Stabilization Geocell Grid
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Outdoor Construction Road Way, Earthwork Apllication
-
Design Style:
-
Industrial
-
Place of Origin:
-
SHN
-
Brand Name:
-
DINGKUN
-
Model Number:
-
DK-Geocell
-
Product name:
-
Geocell Gravel Grid
-
Material:
-
HDPE
-
Surface of geocell:
-
Smooth Textured
-
Color:
-
Black Yellow White Green
-
Thickness:
-
1.1mm-1.5mm
-
Welding distance:
-
330mm-1000mm
-
Height:
-
50mm-300mm
-
Length:
-
Within 10
-
Keyword:
-
Soil Stabilization Geocell Grid
Textured and Perforated HDPE Plastic Geocell manufacturer price gravel grid geo cell for road construction
Products Description

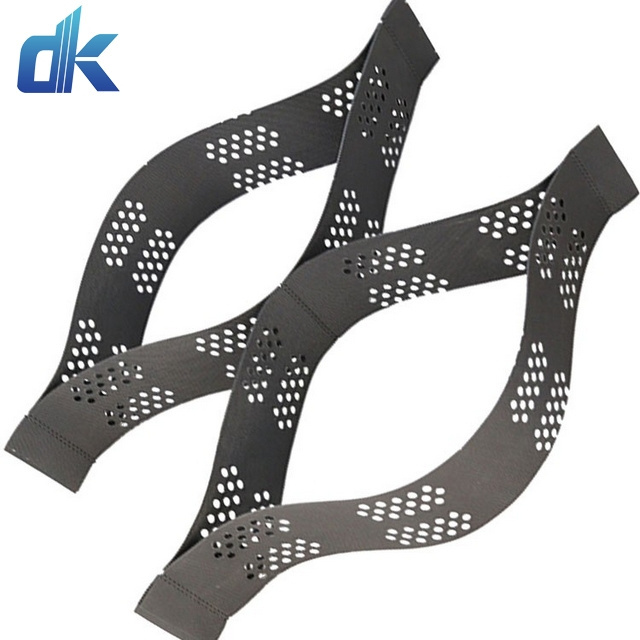

Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet, it is flesible to fold during transportation, stretching out and being filled with stone or concrete during service, and fourming into structure with powerful lateral confinement and rigidity.
Geocell is widely used in construction work for the purpose of erosion control, soil stabilization and earth retention. Geocell is made of HDPE strips and often filled with sand, soil and rock.
Textured & Perforated HDPE Geocell
Smooth & Perforated HDPE Geocell
Textured & Non-perforated HDPE Geocell
Smooth & Non-perforated HDPE Geocell
Main Feature
1.Light material, wear resistance, stable chemical performance, light and oxygen aging resistance, acid and alkali resistance,suitable for different soil and desert and other soil conditions.
2.Higher lateral restraint and anti-skid, anti-deformation and effective enhancement of subgrade bearing capacity and decentralized load.3.Geotechnical dimensions such as height and welding distance of geocell can be changed to meet different engineering needs.
4. Flexibility, small transport volume, convenient connection, make construction more convenient.
1.Light material, wear resistance, stable chemical performance, light and oxygen aging resistance, acid and alkali resistance,suitable for different soil and desert and other soil conditions.
2.Higher lateral restraint and anti-skid, anti-deformation and effective enhancement of subgrade bearing capacity and decentralized load.3.Geotechnical dimensions such as height and welding distance of geocell can be changed to meet different engineering needs.
4. Flexibility, small transport volume, convenient connection, make construction more convenient.
Technical data
|
Item Model
|
Height(mm)
|
Welding Distance(mm)
|
Sheet Thickness(mm)
|
|
Seam Peel Strength≥(N)
|
Expanded Cell Size(mm)
|
Expanded Panel Size(m)
|
|
|
|
|
|
Smooth
|
Textured
|
|
|
|
|
|
TGLG100-330
|
100
|
330
|
1.1
|
1.5
|
1420
|
244*203
|
2.44*6.15
|
|
|
TGLG150-330
|
150
|
|
|
|
2130
|
244*203
|
2.44*6.15
|
|
|
TGLG200-330
|
200
|
|
|
|
2840
|
244*203
|
2.44*6.15
|
|
|
TGLG100-356
|
100
|
356
|
|
|
1420
|
259*224
|
2.56*6.52
|
|
|
TGLG150-356
|
150
|
|
|
|
2130
|
259*224
|
2.56*6.52
|
|
|
TGLG200-356
|
200
|
|
|
|
2840
|
259*224
|
2.56*6.52
|
|
|
TGLG100-400
|
100
|
400
|
|
|
1420
|
295*250
|
4*5
|
|
|
TGLG150-400
|
150
|
|
|
|
2130
|
295*250
|
4*5
|
|
|
TGLG200-400
|
200
|
|
|
|
2840
|
295*250
|
4*5
|
|
|
TGLG100-445
|
100
|
445
|
|
|
1420
|
320*287
|
2.56*8.35
|
|
|
TGLG150-445
|
150
|
|
|
|
2130
|
320*287
|
2.56*8.35
|
|
|
TGLG200-445
|
200
|
|
|
|
2840
|
320*287
|
2.56*8.35
|
|
Product Application
1.Road support:solve problems on damaged roads, parking lot and yard;
2.Slope protection: create a stable environment for long-term sustainability of embankment material;
3.Channel protection: ensure stability and protection of chanels exposed to all types of erosive conditions;
4.Vegetated retaining walls: inclueds steep slopes, retaining walls, gravity walls and so on.
3.Channel protection: ensure stability and protection of chanels exposed to all types of erosive conditions;
4.Vegetated retaining walls: inclueds steep slopes, retaining walls, gravity walls and so on.
Road Construction
Applications include asphalt pavements, service roads, railway substructure, parking facilities and emergency access areas, among
others.
others.
Retaining Walls
They are also appropriate for lining channels to direct water flow or to reinforce soft soil for large footings for retaining wall strip footings.
Erosion Protection
Three-dimensional interconnected geocells help prevent soil erosion and ensure the long-term stability of steep slopes and channels.
Pipeline stabilization
Enlarge road loadings; lasting the life of road;Bear the greatest loading change;Prevent the road from cracks and deformation;
Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.
Slope Pretection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Related Products
Packaging and Delivery
we can package and transport the products according to the requirements of the customers. please contact us if you need.
