Quick Details
Quick Details
-
Name:
-
corner combning machine
-
Type:
-
tool equipment
-
Style:
-
punching combination
Aluminum Windows

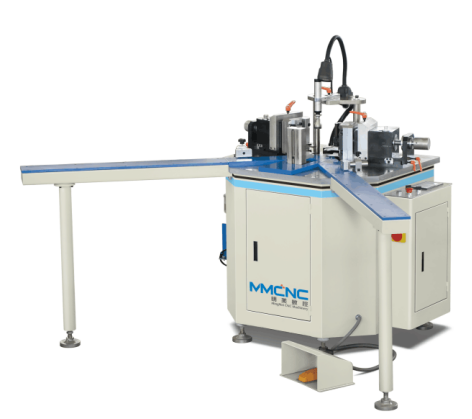

Corner Crimping Machine LMB-120B
1. Feature
1.1 Strengthened machine structure and rack to make it work more stable and low malfunctions
1.2 Auto up-down inner localization to make workpiece clamping convenient
1.3 Special hydraulic station with big power and big crimping power,that can process profile with big cross section and big thickness
1.4 Special high speed hydraulic system to supply fast crimping and high efficiency
2. Technology Data
|
2.1 |
Voltage |
380V 50Hz |
|
2.2 |
Rating power |
3.0 kw |
|
2.3 |
Rated pressure |
20 MPa |
|
2.4 |
General pressure of corner combining |
26~41.6KN |
|
2.5 |
Capability of oil box |
60L |
|
2.6 |
Corner Crimping Casing movement journey |
0~95 mm |
|
2.7 |
Profile processing width |
90 mm |
|
2.8 |
Contour dimension |
1150 x 1100x 1300 mm |
|
2.9 |
Weight about |
534 kg |
3.Products Details
4. Our factory SINCE 1995
5.Delivery
