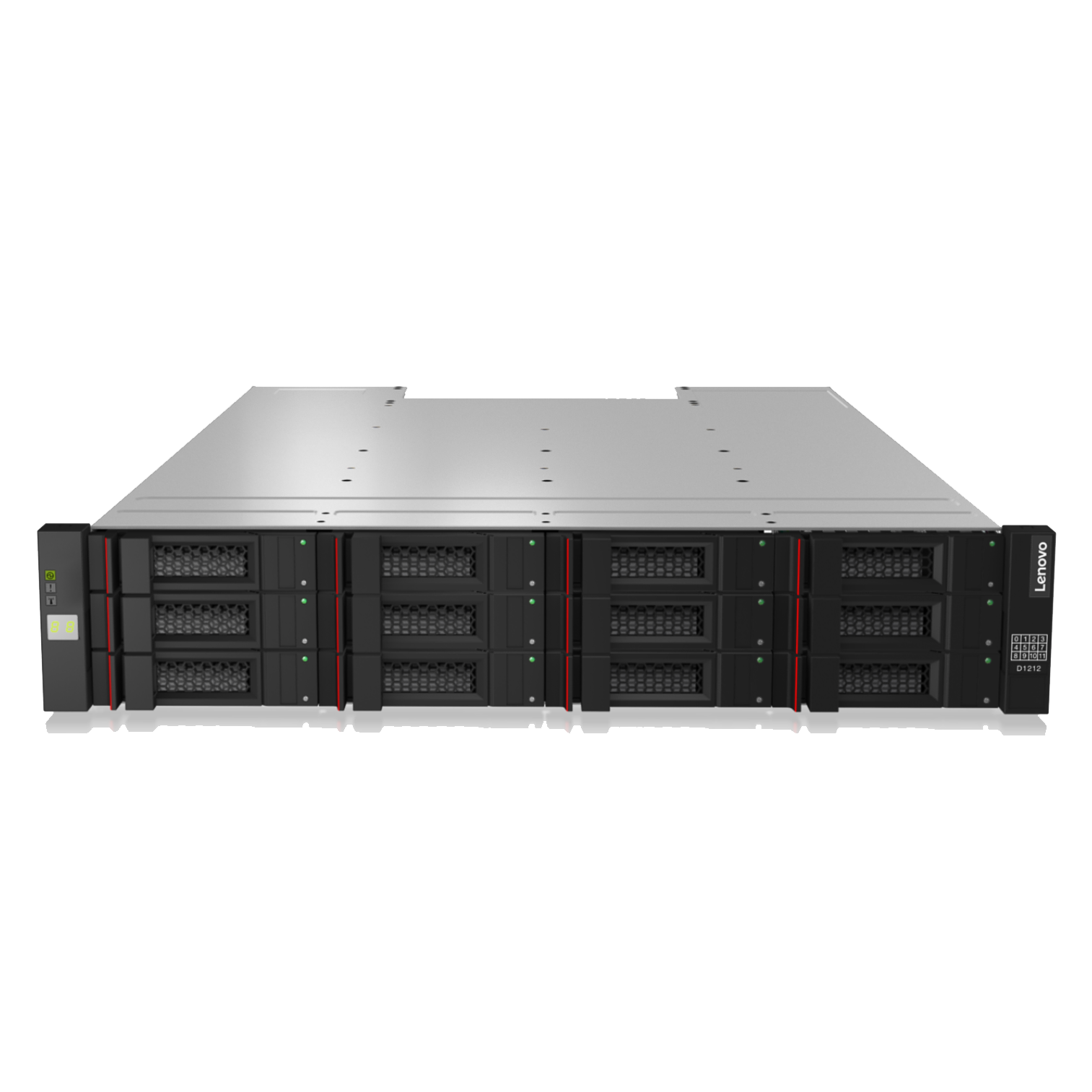

The Lenovo Storage D1212 has the flexibility and capacity to handle many different types of workloads. You can start with one D1212 enclosure containing up to 12x 3.5-inch drives as a simple JBOD, and later daisy-chain up to 8 enclosures per SAS Chain (using multiple ports). One chain supports up to 96 drives.
Supported drives include 10,000rpm and 7,200rpm HDDs, secure self-encrypting 7,200rpm SED HDDs, and high-performance/high-capacity SSDs for read-intensive workloads. The D1212 supports RAID-0, 1, 10, 5, 50, 6, and 60, using a variety of RAID HBAs. A single chain can contain a combination of HDDs and SSDs with multiple speeds and capacities. If 15,000rpm and 2.5-inch HDDs are required, D1224 expansion units may be included in the chain.
- Product Details
- {{item.text}}
Quick Details
-
Form Factor:
-
2U
-
Single/Dual Expansion Modules:
-
Dual 12Gb SAS standard with active/active failover
-
Expandability (via Daisy-Chain):
-
Up to 8 D1212 units per SAS Chain
-
RAID Support:
-
RAID 0, 1, 5, 6, 10, 50, 60 (HBA-dependent)
-
Power Supplies and Fans:
-
Two 580W (1+1) hot-swap
-
Weight:
-
max. 24kg (57.2lbs)
Quick Details
-
Brand Name:
-
Lenovo
-
Model Number:
-
D1212
-
Place of Origin:
-
China
-
Form Factor:
-
2U
-
Single/Dual Expansion Modules:
-
Dual 12Gb SAS standard with active/active failover
-
Expandability (via Daisy-Chain):
-
Up to 8 D1212 units per SAS Chain
-
RAID Support:
-
RAID 0, 1, 5, 6, 10, 50, 60 (HBA-dependent)
-
Power Supplies and Fans:
-
Two 580W (1+1) hot-swap
-
Weight:
-
max. 24kg (57.2lbs)
|
Form Factor
|
2U
|
|
Single/Dual Expansion Modules
|
Dual 12Gb SAS standard (MiniSAS-HD SFF 8644), with active/active failover
|
|
Supported Drives
|
12 hot-swap SAS 3.5-inch drives: 900GB 10,000rpm HDDs (2.5-inch drive in 3.5-inch bay); 2TB, 4TB, 6TB, 8TB, or 10TB 7,200rpm NL
HDDs*; 4TB 7,200rpm NL SED HDDs; 400GB, 10 DWD SSDs* (2.5-inch drive in 3.5-inch tray) |
|
Storage Capacity (per D1212 enclosure—up to 8 enclosures supported per HBA port)
|
Up to 10.8TB – 10,000rpm HDDs; Up to 120TB – 7,200rpm NL SAS HDDs*; Up to 48TB – 7,200rpm NL SAS SED HDDs; Up to 4.8TB SSDs
|
|
Expandability (via Daisy-Chain)
|
Up to 8 D1212 units per SAS Chain
|
|
|
ThinkServer 8885e PCIe 12Gb SAS Adapter (PMC 8885E chipset); ThinkServer LSI 93008-e (12Gb; LSI SAS 31088); Lenovo N2225 SAS/SATA HBA (12Gb) Adapter for System x (12Gb; LSI SAS 3008); N2226 SAS/SATA HBA (12Gb) Adapter for System x (LSI SAS 3008); ServeRAID M5225-2GB SAS/SATA Controller for System x (LSI SAS 3108); Avago SAS 9300-8e Host Bus Adapter (12Gb; LSI SAS 3008); Avago SAS 9300-16e Host Bus Adapter (12Gb; LSI SAS 3008 x2); Avago SAS 9302-16e Host Bus Adapter (12Gb; LSI SAS 3008 x2);
Avago SAS 9302-16e Host Bus Adapter (12Gb; LSI SAS 3008 x2); Avago MegaRAID SAS 9380-8e LSI SAS3108); Avago MegaRAID SAS 9380-4i4e LSI SAS3108)
|
|
RAID Support
|
RAID 0, 1, 5, 6, 10, 50, 60 (HBA-dependent)
|
|
Power Supplies and Fans
|
Two 580W (1+1) hot-swap/redundant 80 Plus Gold power supplies; two integrated fans per power supply
|
|
Back Panel Connectors
|
Each expansion module (x2) includes 1 Ethernet management port, 3x MiniSAS HD Connector (SFF 8644), It can be configured as in/ingress or out/egress port by SAS zoning mode setting.
|
|
Dimensions / Weight
|
Height: 87.9mm (3.5 in.); Width: 443mm (17 in.); Depth: 630mm (24.8 in.); Weight: max. 24kg (57.2lbs)
|
High-performance, high-capacity DAS
Best value for storage capacity
The D1212 is optimized for performance at an affordable price. High-capacity 3.5-inch NL drives offer up to 120TB* of “cold” or archive storage in only 2U, and 960TB* per SAS Chain in 16U. 10,000rpm 12Gbps SAS drives offer the speed needed for many performance-intensive workloads, and SSDs provide the extreme throughput necessary for the most I/O-intensive jobs, along with high capacity.
The D1212 shares common parts with D1224 DAS enclosures. This simplifies servicing and reduces spare parts on hand, helping to reduce costs further. You can also save money on file/storage servers by deploying one server running virtualized environments
with up to 960TB* of DAS capacity, rather than using multiple servers with one JBOD apiece.
The D1212 shares common parts with D1224 DAS enclosures. This simplifies servicing and reduces spare parts on hand, helping to reduce costs further. You can also save money on file/storage servers by deploying one server running virtualized environments
with up to 960TB* of DAS capacity, rather than using multiple servers with one JBOD apiece.
