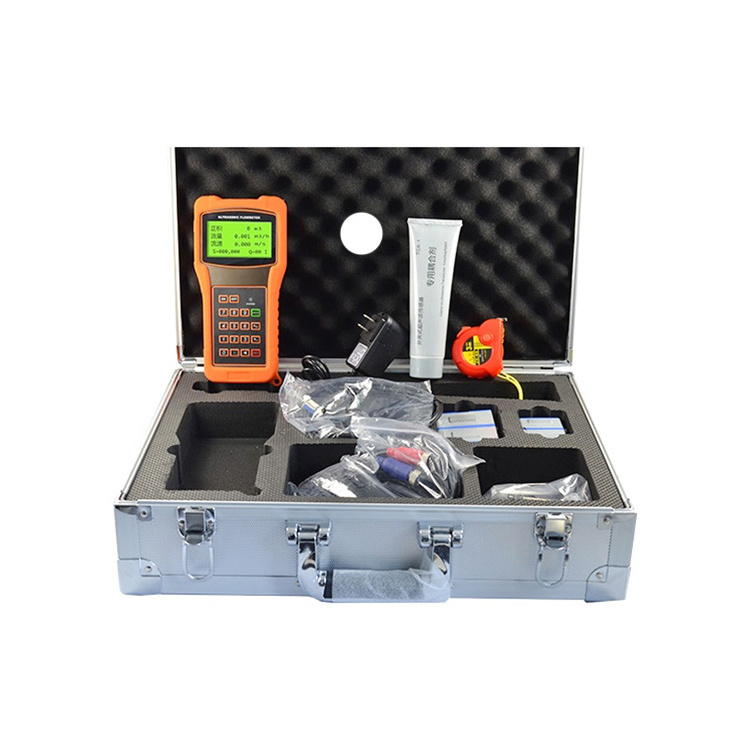

FMU830 High Frequency portable clamp on ultrasonic flow meter handheld type tuf-2000h ultrasonic water flow meter

FMU830 High Frequency portable clamp on ultrasonic flow meter handheld type tuf-2000h ultrasonic water flow meter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $265

≥20 Pieces

US $258

≥50 Pieces

US $246

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SENTEC

Model Number:: FMU830

Product Name:: ultrasonic sensor

Flow rate range:: ± 32m/s

Dameter range:: DN15 ~ DN6000

Unit of measurement:: meters, feet, cubic meters, liters, cubic feet, US gallons

Response time:: 0~999 second (optional)

Accuracy:: indication value ± 1%, flow rate is greater than 0.2m / s

Power supply:: Rechargeable battery power supply (distribution charger)

Signal output:: 1 channel OCT pulse output (pulse 6-1000ms, default 200ms)

Keywords:: ultrasonic flowmeter

Application:: flow measurement, flow meter, flowmeter

Quick Details

Type:: Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters

Warranty:: 12 month

Place of Origin:: Sichuan, China

Brand Name:: SENTEC

Model Number:: FMU830

Product Name:: ultrasonic sensor

Flow rate range:: ± 32m/s

Dameter range:: DN15 ~ DN6000

Unit of measurement:: meters, feet, cubic meters, liters, cubic feet, US gallons

Response time:: 0~999 second (optional)

Accuracy:: indication value ± 1%, flow rate is greater than 0.2m / s

Power supply:: Rechargeable battery power supply (distribution charger)

Signal output:: 1 channel OCT pulse output (pulse 6-1000ms, default 200ms)

Keywords:: ultrasonic flowmeter

Application:: flow measurement, flow meter, flowmeter

Products Description

Features

*Non-contact measuring method, small size, light weight and easy to carry
*Built-in rechargeable battery, can work continuously for more than 12 hours, advanced die-cast aluminum host
*Backlit LCD all Chinese display instantaneous flow and positive, negative, static cumulative flow, flow rate, time, analog input
and other data

Product Specification

Pipe Diameter	DN15~6000mm	MFM
Power supply	Built-in battery(rechargeable), 100-240VAC adapter
Output	1 channel OCT pules output (pulse 6-1000ms, default 200ms)RS232C baud rate 75~57600
Accuracy	±1%
Display	meters. feet, cubic meters, liters, cubic feet, us gallons	＜1s
Data record	built-in data logger can store 2000 rows of data
Temperature	Host:-20~60℃;flow sensor:-30~ 160℃
Protection grade	Host:IP67;flow sensor:IP68
Pipe Material	Uniform medium pipe such as carbon steel, stainless steel, cast iron, copper, pvc, aluminum, FRP
Shell material	Flame retardant ABS	press drop: ＜30Kpa

Details Images

Smart Proofreading Sensitivity

• Hardly affected by corrosion, foam; hardly affected by atmospheric water vapor, temperature, and pressure changes

Long Life

• Maintenance-free: no moving parts, no need to maintain after installation.

•Low driving power, low running cost and long service life

Wide range of applications

• High adaptation: no influence on electrical parameter and density of medium, suitable for various conditions.

Product Introduction

Recommend Products

Certifications

Packaging&Shipping

Q:What kind of products do you offer ? A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries. FMM501 Hot Sale Stainless Steel Digital Mass Flow Meter Controller Q:Could I get samples? A:Yes,we have half-stock ready products for customized sample. FMM501 Hot Sale Stainless Steel Digital Mass Flow Meter Controller Q:How about the quality of the magnets? A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect. FMM501 Hot Sale Stainless Steel Digital Mass Flow Meter Controller Q:What is the delivery time? A:For standard specification,delivery time 5-7days; For customized specification 10-20days. FMM501 Hot Sale Stainless Steel Digital Mass Flow Meter Controller Q: What is your terms of payment ? A: We could accept T/T, Paypal, WU ,Trade Assurance. FMM501 Hot Sale Stainless Steel Digital Mass Flow Meter Controller Q: What is the warranty for your product ? A: Warranty: 12-24Month, Lifetime maintenance FMM501 Hot Sale Stainless Steel Digital Mass Flow Meter Controller Q. How can l get the quotation or send my inquiry to? A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. 1. What is the Measuring medium? Water, oil or others. 2. How about Measuring range: 0-5m or..? 3.What would be the processing pressure and temperature？ 4. Which signal output:4-20mA, RS485 or..? 5. Require quantity?

The specific price is subject to the parameters, please contact us for the quotation
