- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
18ton
-
Efficiency:
-
87%
-
weight:
-
18ton
-
OEM service:
-
Available
-
color:
-
red , green
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Taiguo
-
Dimension(L*W*H):
-
5.6*2.2*2.9m
-
Weight:
-
18ton
-
Efficiency:
-
87%
-
weight:
-
18ton
-
OEM service:
-
Available
-
color:
-
red , green
-
Certification:
-
ISO9001

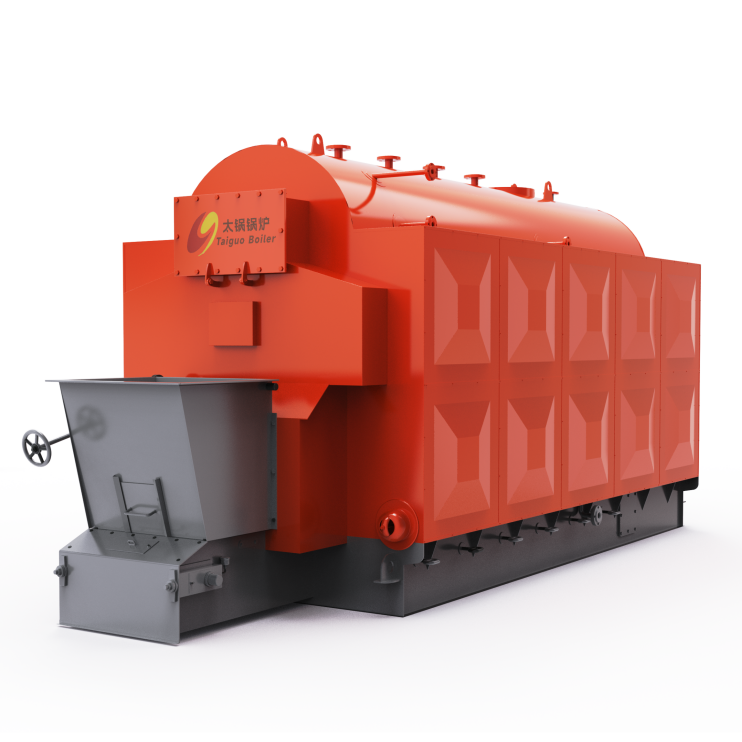

Product Advantages
1.Chain Grate Stoker
Layer burning、suspension combustion
Mechanization toreduce laborintensity
Mechanization toreduce laborintensity
2.Convex tube sheet
Prevent tube plate cracking
and simplify structure
and simplify structure
3.Spirally corrugated tube
Strengthening heat transfer
eliminating welding stress
eliminating welding stress
Technical Paramet
|
Mode
|
DZL1 |
DZL2 |
DZL3 |
DZL4 |
DZL6 |
DZL8 |
DZL10 |
||||||
|
Rated evaporation
capacity(t/h) |
1
|
2
|
3
|
4
|
6
|
8
|
10
|
||||||
|
Rated pressure(Mpa )
|
0 .7/ 1 .0/
1 .25 |
0 .7/ 1 .0/
1 .25 |
0 .7/ 1 .0/
1 .25 |
1 .25/ 1 .6
|
1 .25/ 1 .6
|
1 .25/ 1 .6
|
1 .25/ 1 .6
|
||||||
|
Rated steam temperat ure( ℃ )
|
170/ 184/
194 |
170/ 184/
194 |
170/ 184
/ 194 |
194/204
|
194/204
|
194/204
|
190/204
|
||||||
|
Feed water temperature( ℃ )
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
||||||
|
Heating Area( m)
Body |
~33
|
~50
|
~75
|
~100
|
~170
|
~200
|
~250
|
||||||
|
Fuel type
|
Biomass pellet,wood sawdust,bamboo chip,wood block,straw ，Jute, palm shell
|
|
|
|
|
|
|
||||||
|
Fuel Consumption
(kg/h) |
~200
|
~400
|
~600
|
~800
|
~1000
|
~1200
|
~1400
|
||||||
|
Flue gas temperature( ℃ )
|
~150
|
~150
|
~150
|
~150
|
~150
|
~150
|
~150
|
||||||
|
Themal efficiency(%)
|
~82
|
~82
|
~82
|
~82
|
~82
|
~82
|
~82
|
||||||
|
Weight of biggest
part for transportation(t) |
17
|
18 .5
|
20
|
25
|
35
|
45
|
58
|
||||||
|
Overall dimension of biggest part for transportation( m)
|
5 . 1*2 .2
*3 |
5 .5*2 .3
*3 .3 |
6 .4*2 .
4*3 .5 |
6 .6*2 .6
*3 .6 |
8 . 1*2 .9
*3 .8 |
8 .3*3 .
1 *4 .0 |
8 .6*3 .2
*4 .2 |
||||||
Applicable industry
t：extile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood processing, clothing, laundry, etc.
Henan Taiguo Boiler Product Co., Ltd., With more than 50 years of manufacturing experience, is a professional manufacturer,engaged in the research, development, production, sales and service of steam boiler, hot water boiler, hot oil boiler, and hot air boiler.
Product production adopts technologies such as cutting, rolling plates, drilling, and cylindrical welding. We obtained ISO9 0 0 1, ISO 1 4 0 0 0 1, C E, SGS, EAC certification. Our boilers are sold to 108 countries around the world, and I sincerely hope to cooperate with you!
FAQ
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenientfor our communication.
Q2：Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenientfor our communication.
Q2：Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
Dear friend,you can contact us through my contact information or send us inquiry directly. Click "Send Inquiry" or "Chat Now"!
