Quick Details
-
Brand Name:
-
Ipandee
-
Model Number:
-
RS48L60
-
Work Time (h):
-
24h
-
Max PV Power:
-
3360W
-
Max PV Voltage:
-
150VDC
-
Certificate:
-
CE,ROHS,FCC
-
Warranty:
-
2 years
-
Product name:
-

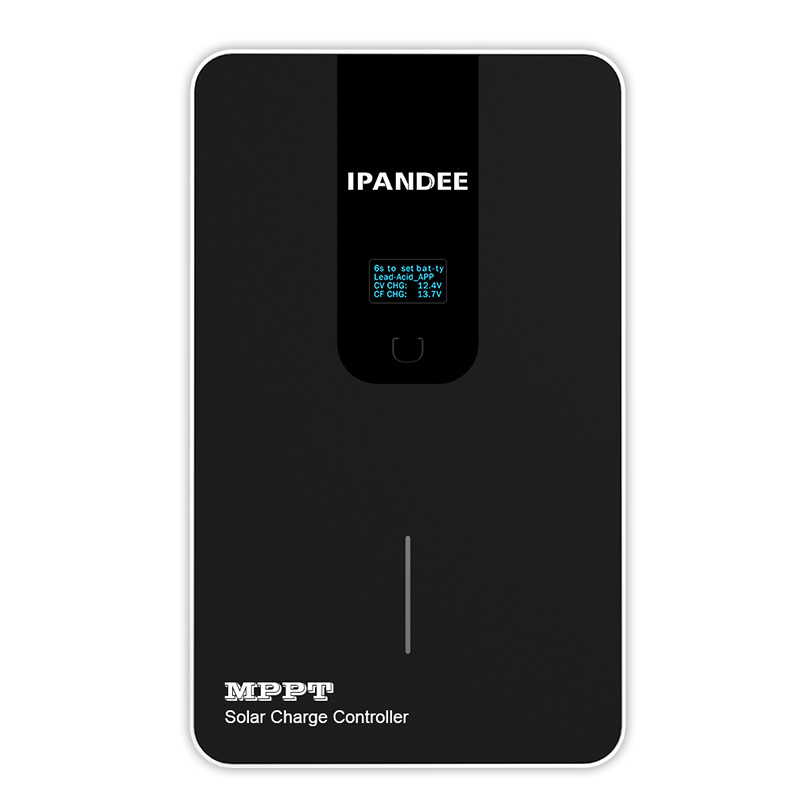

Charge Controller 60A Mppt Solar Battery Charger For Telecom Projects
-
Battery Type:
-
GEL,FLD,SEL,User-defined(Lithium,others)
-
Real-time Control:
-
PC&APP
-
Parallel communication:
-
Support
-
OEM&ODM:
-
Support
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Rated Current:
-
60A
-
Display:
-
OLED display
-
Function:
-
Solar Charging
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ipandee
-
Model Number:
-
RS48L60
-
Work Time (h):
-
24h
-
Max PV Power:
-
3360W
-
Max PV Voltage:
-
150VDC
-
Certificate:
-
CE,ROHS,FCC
-
Warranty:
-
2 years
-
Product name:
-
Charge Controller 60A Mppt Solar Battery Charger For Telecom Projects
-
Battery Type:
-
GEL,FLD,SEL,User-defined(Lithium,others)
-
Real-time Control:
-
PC&APP
-
Parallel communication:
-
Support
-
OEM&ODM:
-
Support
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Rated Current:
-
60A
-
Display:
-
OLED display
-
Function:
-
Solar Charging
Products Description
|
Runner-RS Reries
|
|
|
RS48L40
|
RS48L50
|
RS48L60
|
RS48L80
|
RS48L100
|
|||||
|
Product Category
|
MPPT efficiency
|
|
≥99.5%
|
|
|
|
|
|||||
|
|
Standby power
|
|
1W~1.8W
|
|
|
|
|
|||||
|
|
Heat-Dissipating method
|
|
Built-in fan for cooling
|
|
|
|
|
|||||
|
|
Lead-acid battery system
|
|
12V System：9VDC~15VDC 24V System：18VDC~30VDC 36V System：32VDC~40VDC 48V System：42VDC~60VDC
|
|
|
|
|
|||||
|
|
Lithium-ion battery system
|
|
8VDC~60VDC
|
|
|
|
|
|||||
|
Input Characteristics
|
Max.PV input voltage(Voc)
|
|
150VDC
|
|
|
|
|
|||||
|
|
Min.Vmpp Voltage
|
|
Battery voltage + 2V
|
|
|
|
|
|||||
|
|
Start-up charging voltage
|
|
Battery voltage + 3V
|
|
|
|
|
|||||
|
|
Low input voltage protection
|
|
Battery voltage + 2V
|
|
|
|
|
|||||
|
|
Over voltage protection / Recovery
|
|
150VDC/145VDC
|
|
|
|
|
|||||
|
|
Reted PV Power
|
12V system
|
560W
|
700W
|
840W
|
1120W
|
1400W
|
|||||
|
|
|
24V system
|
1120W
|
1400W
|
1680W
|
2240W
|
2800W
|
|||||
|
|
|
36V system
|
1680W
|
2100W
|
2520W
|
3360W
|
4200W
|
|||||
|
|
|
48V system
|
2240W
|
2800W
|
3360W
|
4480W
|
5600W
|
|||||
|
Charge Characteristics
|
Activation for lithium battery
|
|
Standard
|
|
|
|
|
|||||
|
|
Battery type (default setting gel-sealed lead-acid battery)
|
|
Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion(LIT)
|
|
|
|
|
|||||
|
|
Rated charge current
|
|
40A
|
50A
|
60A
|
80A
|
100A
|
|||||
|
|
Temperature compensation
|
|
-3mV/℃/2V
|
|
|
|
|
|||||
|
|
Charge method
|
|
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
|
|
|
|
|
|||||
|
|
Output voltage stability accuracy
|
|
≤±0.2V
|
|
|
|
|
|||||
|
LOAD Characteristics
|
Load voltage
|
|
Same as battery voltage
|
|
|
|
|
|||||
|
|
Rated load current
|
|
30A
|
|
|
50A
|
|
|||||
|
|
Load control mode
|
|
On/Off , PV voltage control mode, Dual-time control mode, PV + Time control mode
|
|
|
|
|
|||||
|
|
Low voltage protection
|
|
Settable
|
|
|
|
|
|||||
|
|
Setting method
|
|
PC software / APP / Controller
|
|
|
|
|
|||||
|
Display & Communication
|
Display
|
|
Blue OLED display
|
|
|
|
|
|||||
|
|
Communication
|
|
Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
|
|
|
|
|
|||||
|
Other Parameters
|
Protections
|
|
Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding
protection etc.
|
|
|
|
|
|||||
|
|
Operating ambient temperature
|
|
-20℃~+50℃
|
|
|
|
|
|||||
|
|
Storage temperature
|
|
-40℃~+75℃
|
|
|
|
|
|||||
|
|
IP(Ingress protection)
|
|
IP21
|
|
|
|
|
|||||
|
|
Altitude
|
|
0~3000m
|
|
|
|
|
|||||
|
|
Max. connection size
|
|
28m㎡
|
|
|
|
|
|||||
|
|
Recommended breaker
|
|
≥63A
|
≥ 63A
|
≥ 100A
|
≥ 120A
|
≥ 150A
|
|||||
|
|
Net weight/Gross weight (kg)
|
|
2 /2.6
|
|
|
5 / 6.2
|
|
|||||
|
|
Product size /Packing size (mm)
|
|
305x185x90/370x218x98
|
|
|
380x210x80/490x350x195
|
|
|||||
