Quick Details
-
Wire Diameter:
-
0.5~3.2mm
-
Min Finished Inner Dia:
-
30mm
-
Max Finished Outter Dia:
-
550mm
-
Max Finished Height:
-
250mm
-
System:
-
PLC system control
-
Motor:
-
high accuracy stepping motor
-
Speed control:
-
inventer control
-
operate panel:
-
touch screen
-
keyword:
-
toroidal winding machine
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Yibo toroidal winding machine
-
Weight (KG):
-
330
-
Wire Diameter:
-
0.5~3.2mm
-
Min Finished Inner Dia:
-
30mm
-
Max Finished Outter Dia:
-
550mm
-
Max Finished Height:
-
250mm
-
System:
-
PLC system control
-
Motor:
-
high accuracy stepping motor
-
Speed control:
-
inventer control
-
operate panel:
-
touch screen
-
keyword:
-
toroidal winding machine

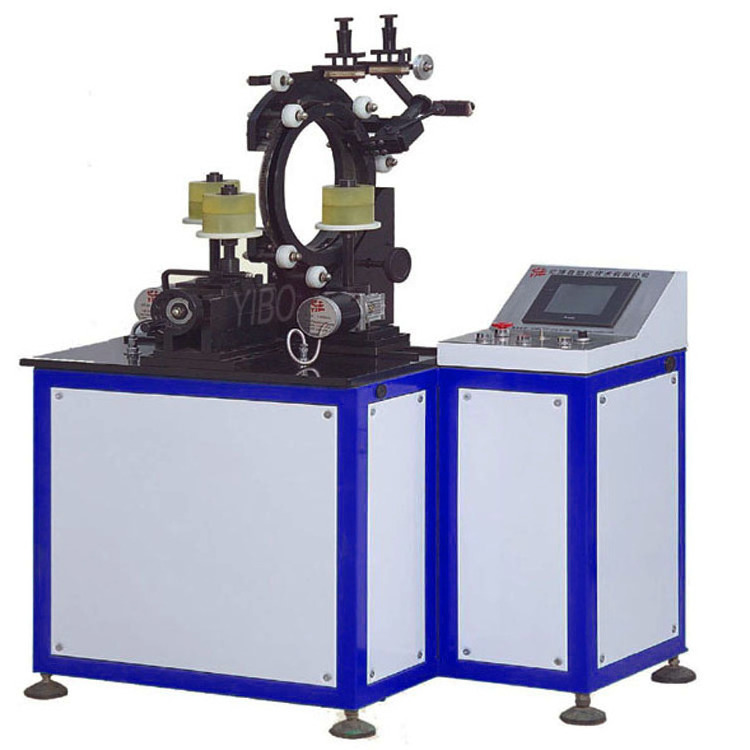

<h2> multi wire winding power magnetics toroidal winding machine</h2>
1. Features
YW type CNC winding machine for current transformer is the new generation of winding equipment according to the power industry requirement .It's featured with high precision, wide application range,reliable system operation.etc.
2.Application
YW type CNC winding machine for current transformer is specially used for winding the circular coils of small batch and many varieties . It is the preferred device in transformer industry and the most advanced circular winding equipment domestically.
3.Specification and Advantages
1. Adopts PLC system and sets winding procedures through touch screen
2. Electric parts are designed in modularization, can reduce the maintenance cost.
3. The main driving operation uses frequency-conversion speed adjustment mode,offer advantages of short driving chain, large startup torque, wide speed adjustment range, energy saving and low noise.
4. The winding system adopts stepping motor and high-precision reduction gear.
5. It can realize continuous stepless adjustment precise to 0.01mm, high precision and large torque.
6. The CNC winding machine offeres wire storage automatic computation, automatic counting, automatic stop, stop memory and so on, simplifies the operation greatly.
7. It can realize the multi-wire multi-layer winding.
4. Main technical parameters
|
Model |
YW-260A/260AM |
YW-300B/300BM |
YW-400C/400BM |
YW-500D/500DM |
|
Diameter range of windable eletromagnetic wire |
0.5-1.5mm |
0.5-2.6mm |
0.5-3.2mm |
0.5-3.2mm |
|
Min inner diameter of winded coils |
30mm |
50mm |
60mm |
60mm |
|
Max outer diameer of winded coils |
260mm |
350mm |
450mm |
550mm |
|
Max height of winded coils |
70mm |
100mm |
140mm |
250mm |
|
Max winding rotation speed |
100 rmp |
100 rmp |
100 rmp |
100 rmp |
|
Machine tool power |
0.75kW |
1.5kW |
1.5kW |
1.5kW |
|
Max outline sise of machine tool |
600x1000x1200 |
700x1000x1300 |
700x1000x1400 |
850x1000x1500 |
If you want to order, please send the pictures and size of your coils to us. ( include Diameter of wire, Height of winded coil, Inner diameter of winded coil, Outer diameter of coil ). we'll recommend the most suitable one for you.
