Quick Details
-
Voltage:
-
diesel driven engine
-
Dimension(L*W*H):
-
2300*1790*1580mm
-
Weight:
-
1600KG
-
After-sales Service Provided:
-
Overseas service center available, Online support
-
Power:
-
60KW/80 HP
-
Oil - Gas Tank Capacity:
-
35 L
-
Air delivery:
-
5.3 m3/min / 190 CFM
-
Working pressure:
-
7Bar / 102 Psig
-
Mesin:
-
20-336 KW
-
phone number:
-
62 81-336618989
-
Diesel Engine:
-
ShangHai
-
Certification:
-
ISO CE BV
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DENAIR
-
Model Number:
-
DACY
-
Voltage:
-
diesel driven engine
-
Dimension(L*W*H):
-
2300*1790*1580mm
-
Weight:
-
1600KG
-
After-sales Service Provided:
-
Overseas service center available, Online support
-
Power:
-
60KW/80 HP
-
Oil - Gas Tank Capacity:
-
35 L
-
Air delivery:
-
5.3 m3/min / 190 CFM
-
Working pressure:
-
7Bar / 102 Psig
-
Mesin:
-
20-336 KW
-
phone number:
-
62 81-336618989
-
Diesel Engine:
-
ShangHai
-
Certification:
-
ISO CE BV

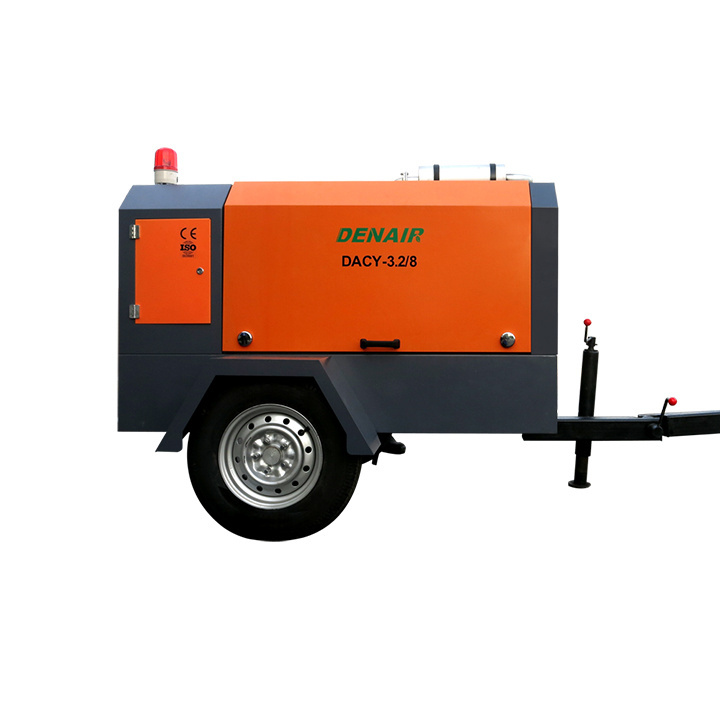

7 bar 190 cfm diesel air compressor for water well drilling rig
|
Famous compression element ensures the high performance and large air delivery. The components manufactured to thd highest standards and precision alignedrollerbearings ensure long service life with maximum reliability.
|
|
Heavyduty
CUMMINS
diesel engine for extended operation.
|
|
|
Germany MANN oil filter ensure longer working life and save thd maintenancetime and cost. Especial apply in mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry, etc.
|
Technical parameters of diesel mobile screw compressor
|
Model |
DACY-5.3/7 |
DACY-8.5/10 |
DACY-9.0/7 |
DACY-10.0/8 |
DACY-11.0/13 |
DACY-12.0/13 |
|
Machine |
||||||
|
Free Air Delivery (m³/min) |
5.3 |
8.5 |
9.0 |
10.0 |
11.0 |
12.0 |
|
Normal Working Pressure (bar) |
7 |
10 |
7 |
8 |
13 |
13 |
|
Weight (kg) |
1500 |
1950 |
1850 |
1950 |
2380 |
2650 |
|
Dimensions L*W*H |
3160*1740*1515 |
2800*1740*1760 |
3900*1920*1700 |
2880*1740*1760 |
3450*1520*2200 |
3940*1970*2020 |
|
Wheel Qty |
2 |
2 |
2 |
2 |
4 |
2 |
|
Size*No.of Air Outle t Valve |
G1*2 |
R1.1/2 ” *1;R1*1 |
G11/2*1;G3/4*1 |
R1.1/2*1;R1 ” *1 |
G11/2*1;G3/4*1 |
G2” *1;G1” *1 |
|
Diesel Engine |
||||||
|
Manufacturer |
Quanchan |
Yuchai |
Yuchai |
Yuchai |
Cummins |
Cummins |
|
Model |
QC4105 |
YCB115Z |
YC4D95Z-K20 |
YC4B115Z |
6BTA5.9-C180 |
6BTA5.9 |
|
Water-cooled 4-stroke direct injection |
||||||
|
Bore*Stoke(mm) *No.of Cylinders |
105*118*4 |
108*125*4 |
108*115*4 |
108*125*4 |
102*120*6 |
102*120*6 |
|
Engine Capacity (L) |
4.087 |
4.58 |
4.214 |
4.58 |
5.9 |
5.9 |
|
Rated Speed (R/min) |
2400 |
2400 |
2100 |
2400 |
2500 |
2500 |
|
Rated Power |
44kw/60hp |
84kw/115hp |
70kw/95hp |
84kw/115hp |
132kw/180hp |
132kw/180hp |
|
Engine oil Capacity (L) |
25 |
9-12 |
12 |
9-12 |
24 |
24 |
|
Fuel Tank Capacity(L) |
100 |
120-160 |
130 |
120-160 |
380 |
380 |
|
Storage Battery |
24V |
24V |
24V |
24V |
24V |
24V |
|
Compressor |
||||||
|
Compression Stage |
1 |
1 |
1 |
1 |
1 |
1 |
|
Lubricating Oil Capacity(L) |
25 |
48 |
25 |
48 |
30 |
65 |
D ENAIR Team
D ENAIR Certificates
D ENAIR Factory & Product Lines
DE NAIR Exhibitions
1.Engineers available to service machinery overseas.
2.Sales engineers provide specific reply within 24 hours when the customer has after- sales problem until it’s solved.
3.Guarantee period is 1 year for the whole machine (except maintenance consumables).
Shanghai
DENAIR
Compressor Co., Ltd.
Office Add.:
No.18,Baosheng Road,Songjiang District,Shanghai,China
Factory Add.:
No. 733,Wenbin Road, Xinbang Town, Songjiang District,Shanghai,China
How long is your air compressor warranty?
Answer : 1 year.
Do you provide After- sales service parts?
Answer : Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
Answer : Generally, more than 10 years.
How about your price?
Answer : Based on high quality, Our price is very competitive in the world
How about your customer service?
Answer : For email, we could reply our customers' emails within 2 hours.
