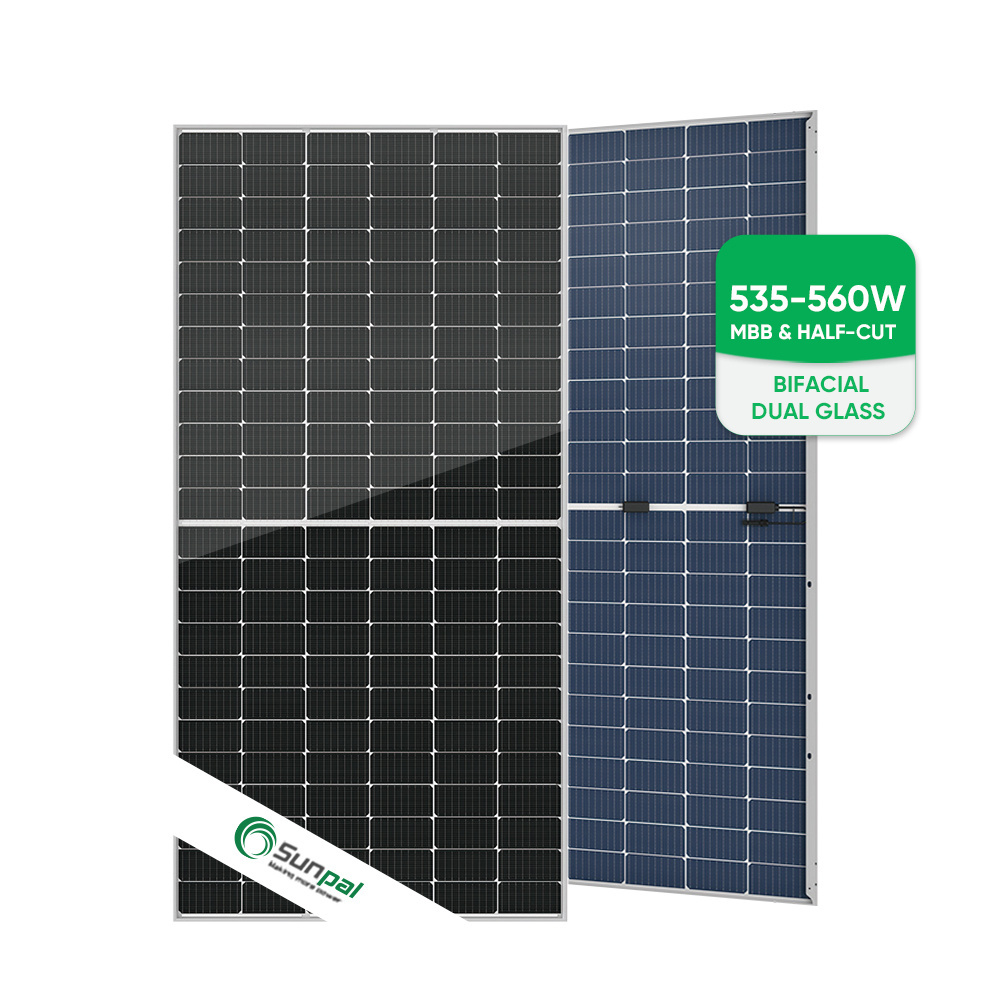

Quick Details
-
Warranty:
-
25 year
-
Brand Name:
-
Sunpal
-
Model Number:
-
BiMAX5
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Keyword:
-
Monocrystalin Solar Panel,Pv Module
-
Cell Type:
-
Mono PERC Half Cell
-
Packaging Configuration:
-
620pcs per 40'ft Container
-
Operate Temperature:
-
40 ~+85
-
Application:
-
Commercia
-
Glass:
-
Double glass
-
OEM Order:
-
Provide Custom Products
-
Maximum system Voltage:
-
1500V DC
-
Material:
-
Monocrystalline Silicon Solar Cells
-
Color:
-
Customized Color
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass
-
Panel Efficiency:
-
21.67%
-
Warranty:
-
25 year
-
Brand Name:
-
Sunpal
-
Model Number:
-
BiMAX5
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Keyword:
-
Monocrystalin Solar Panel,Pv Module
-
Cell Type:
-
Mono PERC Half Cell
-
Packaging Configuration:
-
620pcs per 40'ft Container
-
Operate Temperature:
-
40 ~+85
-
Application:
-
Commercia
-
Glass:
-
Double glass
-
OEM Order:
-
Provide Custom Products
-
Maximum system Voltage:
-
1500V DC
-
Material:
-
Monocrystalline Silicon Solar Cells
-
Color:
-
Customized Color
Product Description
|
Model Number
|
SP535MB-72HG/HT
|
|
SP540MB-72HG/HT
|
|
SP545MB-72HG/HT
|
|
|||||
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|||||
|
535Maximum Power (Pmax/W)
|
535
|
398
|
540
|
402
|
545
|
406
|
|||||
|
Open Circuit Voltage (Voc/V)
|
49.34
|
46.57
|
49.44
|
46.8
|
49.54
|
46.77
|
|||||
|
Short Circuit Current (Isc/A)
|
13.79
|
11.14
|
13.86
|
11.2
|
13.93
|
11.26
|
|||||
|
Voltage at Max Power (Vmp/V)
|
40.63
|
37.91
|
40.72
|
38.08
|
40.81
|
38.25
|
|||||
|
Current at Max Power (Imp/A)
|
13.17
|
10.5
|
13.27
|
10.56
|
13.36
|
10.62
|
|||||
|
Module Efficiency(%)
|
20.71
|
|
20.9
|
|
21.09
|
|
|||||
|
Temp Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Voc
|
-0.25%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
|
|||||
|
Model Number
|
SP545MB-72HG/HT
|
|
SP555M-72HG/HT
|
|
SP560MB-72HG/HT
|
|
|||||
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|||||
|
Maximum Power (Pmax/W)
|
550
|
410
|
555
|
414
|
560
|
418
|
|||||
|
Open Circuit Voltage (Voc/V)
|
49.64
|
46.87
|
49.74
|
46.97
|
49.84
|
47.07
|
|||||
|
Short Circuit Current (Isc/A)
|
14
|
38.42
|
14.07
|
11.38
|
14.14
|
11.44
|
|||||
|
Voltage at Max Power (Vmp/V)
|
40.9
|
38.42
|
40.99
|
38.59
|
41.08
|
38.76
|
|||||
|
Current at Max Power (Imp/A)
|
13.45
|
10.68
|
13.54
|
10.73
|
13.64
|
10.79
|
|||||
|
Module Efficiency(%)
|
21.29
|
|
21.48
|
|
21.67
|
|
|||||
|
Temp Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Voc
|
-0.25%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
|
|||||
