Quick Details
-
Brand Name:
-
Didu
-
Model Number:
-
Didu12200
-
Battery Size:
-
12V 200Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
24kg, 22kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Electric Energy:
-
2560 Wh
-
Product name:
-
Rechargeable Lithium Ion Battery
-
Nominal voltage:
-
12v
-
Nominal capacity:
-
200Ah
-
Charging Method:
-
CC&CV
-
Charge current:
-
0.5C
-
Overcharge cut-off voltage:
-
14.6V
-
Overdischarge cut-off voltage:
-
10.4V
-
Dimension:
-
530 *220 *240 mm
-
Warranty:
-
5 years
Quick Details
-
Storage Type:
-
Standard storage
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, BOATS, SUBMARINES, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
Didu
-
Model Number:
-
Didu12200
-
Battery Size:
-
12V 200Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
24kg, 22kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Electric Energy:
-
2560 Wh
-
Product name:
-
Rechargeable Lithium Ion Battery
-
Nominal voltage:
-
12v
-
Nominal capacity:
-
200Ah
-
Charging Method:
-
CC&CV
-
Charge current:
-
0.5C
-
Overcharge cut-off voltage:
-
14.6V
-
Overdischarge cut-off voltage:
-
10.4V
-
Dimension:
-
530 *220 *240 mm
-
Warranty:
-
5 years
Product specification
|
Basic Parameters |
|
Voltage
|
|
|
12V
|
|
|
|
||||||
|
|
|
Capacity
|
|
|
200Ah(Standard )
|
|
|
|
||||||
|
|
|
Energy
|
|
|
2400Wh
|
|
|
|
||||||
|
|
|
Internal resistance
|
|
|
100mΩ
|
|
|
|
||||||
|
Size and weight
|
|
Height:
|
|
|
240mm
|
|
|
|
||||||
|
|
|
Width
|
|
|
220mm
|
|
|
|
||||||
|
|
|
Length
|
|
|
530mm
|
|
|
|
||||||
|
|
|
Weight
|
|
|
≤29Kg
|
|
|
|
||||||
|
Electrical Parameters
|
|
Charging mode
|
|
|
constant current
|
|
|
|
||||||
|
|
|
Charging Current
|
|
|
0.5C(Standard)
|
|
|
|
||||||
|
|
|
|
|
|
1C(Maximum constant current@25℃)
|
|
|
|
||||||
|
|
|
Overcharge protection voltage
|
|
|
14.6V
|
|
|
|
||||||
|
|
|
Discharge mode
|
|
|
constant current
|
|
|
|
||||||
|
|
|
Over-discharge protection voltage
|
|
|
10.4V
|
|
|
|
||||||
|
|
|
Discharge Current
|
|
|
0.5C(Standard )
|
|
|
|
||||||
|
|
|
|
|
|
1C(Maximum constant current@25℃)
|
|
|
|
||||||
|
Working Parameters
|
|
Working Temperature
|
|
|
Charging (Small Current):-10℃~+55℃
|
|
|
|
||||||
|
|
|
|
|
|
Discharge(Small Current)-20℃~+55℃
|
|
|
|
||||||
|
|
|
Storage Temperature
|
|
|
Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
|
|
|
|
||||||
|
|
|
|
|
|
Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
|
|
|
|
||||||
|
|
|
Storage Humidity
|
|
|
5%~95%
|
|
|
|
||||||
|
|
|
Transportation Environment
|
|
|
Voltage:11.2V~12.8V
|
|
|
|
||||||
|
|
|
|
|
|
SOC:30%~60%
|
|
|
|
||||||

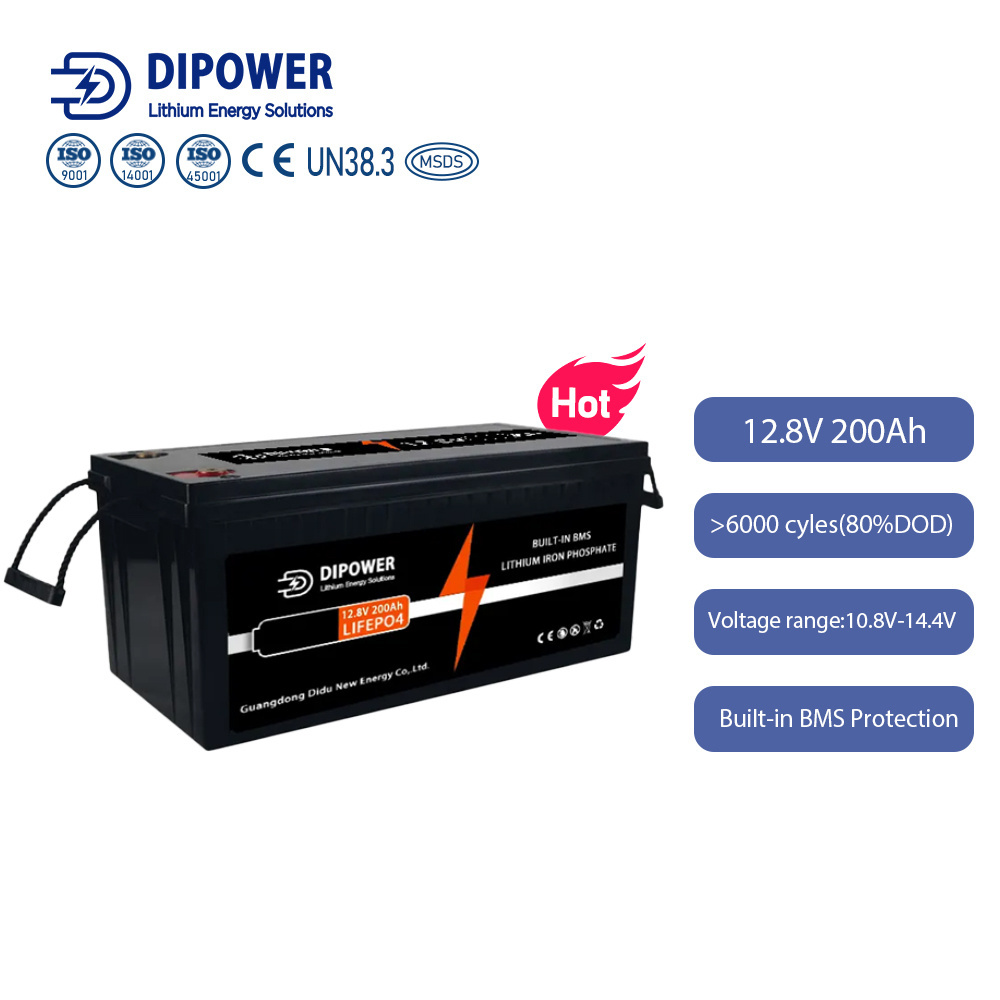

Detailed Images
