Quick Details
-
Max. Lifting Height:
-
5.5m
-
Span:
-
0-5.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Weight (KG):
-
300 kg
-
Motor:
-
Schneider or Siemens or Chint brand
-
Main Steel:
-
Q235
-
Swing Angle:
-
180 degree(or as your demand)
-
Overload Protection Device:
-
Include
-
Working Class:
-
A3-A5
-
Working Temperature:
-
-25℃~+40℃
-
Hoisting Mechanism:
-
Electric hoisting
-
Crane Traveling Limited Switch:
-
Include
-
Drive Type:
-
Mannul or electric driving
-
Certification:
-
CE&ISO&GOST
Quick Details
-
Application:
-
Widely
-
Rated Loading Capacity:
-
0.5-1t
-
Rated Lifting Moment:
-
Different
-
Max. Lifting Height:
-
5.5m
-
Span:
-
0-5.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Weight (KG):
-
300 kg
-
Motor:
-
Schneider or Siemens or Chint brand
-
Main Steel:
-
Q235
-
Swing Angle:
-
180 degree(or as your demand)
-
Overload Protection Device:
-
Include
-
Working Class:
-
A3-A5
-
Working Temperature:
-
-25℃~+40℃
-
Hoisting Mechanism:
-
Electric hoisting
-
Crane Traveling Limited Switch:
-
Include
-
Drive Type:
-
Mannul or electric driving
-
Certification:
-
CE&ISO&GOST
Product Description

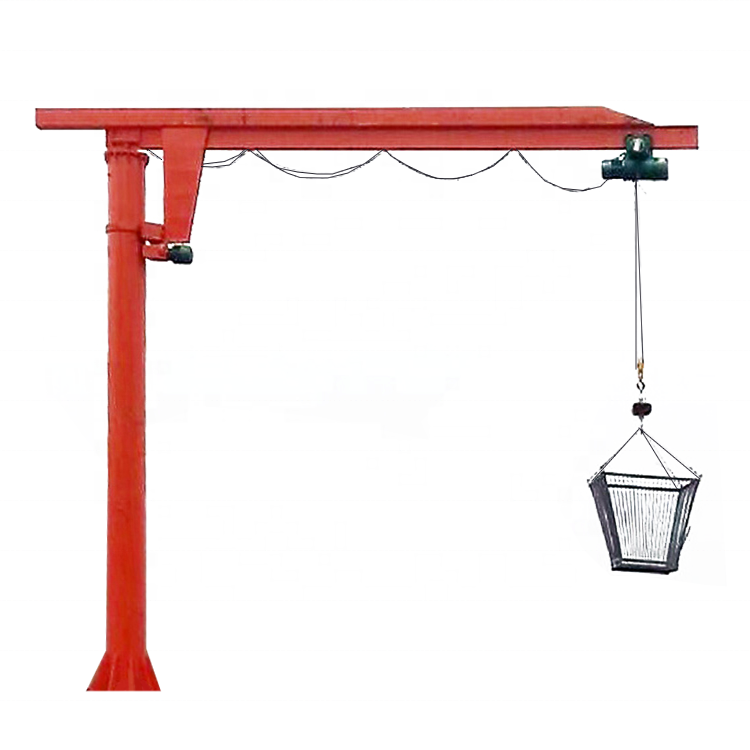

Column Slewing Mounted Jib Crane are versatile, efficent and cost effective solutions for moving materials within an individual workstation, for transferring materials from work area to work area or for serving as auxiliary lifting devices under overhead tadano cranes.
Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills,muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills,muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
Features:
* Capacities from 250 kgs to 5 Ton
* Standard span upto 20 feet
* 360 degree rotation
* Designed for permanent concrete foundation
* Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
* The pipe or colomn is designed to give maximum strength and minimum deflection to resist bending, buckling and crushing
* The top bearing assembly utilizes a tapered roller bearing provided with grease fitting for proper lubrication.
* Standard span upto 20 feet
* 360 degree rotation
* Designed for permanent concrete foundation
* Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
* The pipe or colomn is designed to give maximum strength and minimum deflection to resist bending, buckling and crushing
* The top bearing assembly utilizes a tapered roller bearing provided with grease fitting for proper lubrication.
|
Type
|
Lifting Weight(t)
|
Max. R (mm)
|
Mix. R (mm)
|
Lifting Height(mm)
|
|
ZB-D0.25-D/S
|
0.25
|
5,000
|
1,000
|
4,000
|
|
ZB-D0.5-D/S
|
0.5
|
5,000
|
1,000
|
4,000
|
|
ZB-D1-D/S
|
1
|
5,000
|
1,000
|
4,000
|
|
ZB-D2-D/S
|
2
|
3,300
|
1,300
|
3,000
|
|
ZB-D2-D/S
|
2
|
5,000
|
1,300
|
4,000
|
|
ZB-D2-D/S
|
2
|
6,000
|
1,500
|
3,500
|
|
ZB-D3-D/S
|
3
|
5,000
|
1,500
|
3,500
|
|
ZB-D5-D/S
|
5
|
4,000
|
1,800
|
3,000
|
