Quick Details
-
Rated Voltage:
-
11-220kV
-
Tensile Strength:
-
40-160kN
-
Certification:
-
ISO9001
-
Size:
-
Customized
-
Sample:
-
Provide
-
OEM:
-
YES
-
ODM:
-
YES
-
Feature:
-
Fire Retardant, aging resist
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GaoN
-
Model Number:
-
FRP
-
Rated Voltage:
-
11-220kV
-
Tensile Strength:
-
40-160kN
-
Certification:
-
ISO9001
-
Size:
-
Customized
-
Sample:
-
Provide
-
OEM:
-
YES
-
ODM:
-
YES
-
Feature:
-
Fire Retardant, aging resist

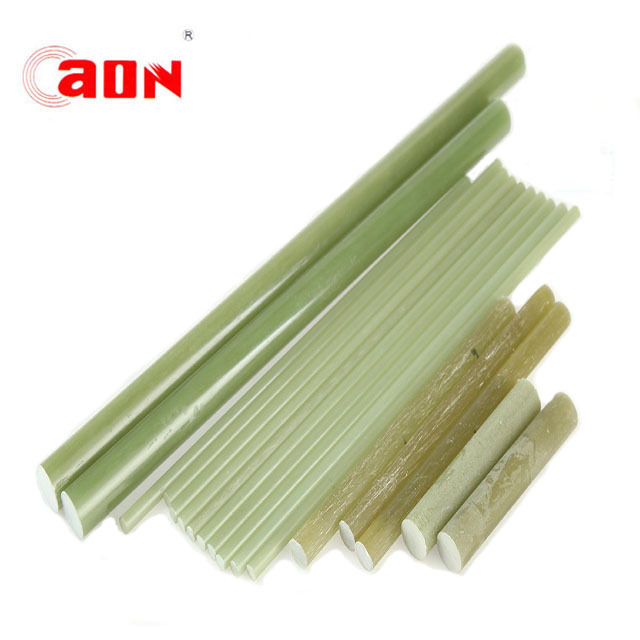

1.Specification of polymer insulator epoxy fiberglass core rod
|
Item No. |
Property |
U nit |
Parameter |
|
1 |
Density(at 20±2) |
g/cm 3 |
2.14 |
|
2 |
Water absorption rate (at20±2,24h) |
% |
<0.05 |
|
3 |
Tensile strength |
Mpa |
1690 |
|
4 |
Bending strength |
Mpa |
1100 |
|
5 |
Dye penetration test |
Min |
15 |
|
6 |
Water diffusion test(1%nacl,boiling for 100h 12kv/1min) |
μA |
<10 |
|
7 |
Shearing strength along laminals |
Mpa |
50 |
|
8 |
Volume resistivity(140℃ ,96h) |
Ω.M |
10 10 |
|
9 |
DC withstand voltage(10min) |
kV |
50 |
|
10 |
Lightning surge withstand voltage(100kv,10mm) |
times |
5 |
|
11 |
Bending strength at heating conditions |
Mpa/150 |
350 |
|
12 |
Stress corrosion (1 mol/1hno3,at 67% stress) |
h |
7200 |
|
13 |
Torsion strength |
Mpa |
800 |
|
Diameter mm |
Weight kg/m |
|
Φ16 |
0.45 |
|
Φ1 8 |
0.57 |
|
Φ 22 |
0.8 6 |
|
Φ 24 |
1.0 0 |
|
Φ 34 |
1.8 0 |
|
Φ 36 |
2.04 |
|
Φ 46 |
3.7 4 |
|
Φ 64 |
7.23 |
|
Φ 68 |
8.1 7 |
|
Φ 80 |
11.30 |
|
Φ1 00 |
17.66 |
2. Characteristic of polymer insulator epoxy fiberglass core rod
1-Corrosion resistant, light.
2-Extremely strong and durable.
3- Composite bar, fiberglass bar, FRP bars.
4-High strength.
5-Fire retardant.
6-Good insulation.
7-Fiberglass stick.
8-Colorful, UV resistant.
9-Good flexibility , corrosion resisting.
3.Company advantage:
(The world's only one insulators maker who can produce all material as blow by ourselves)
1-We produce epoxy resin fiberglass rod.
2-We produce HTV silicone rubber.
3-We produce HDG metal fittings.
4-Famous and top brand in China.
5-Superior quality and competitive price.
6-Almost 20 years experience with insulators, surge arresters and fuse cutouts.
7-Exported to more than 35 countries.
8-Guarantee: we can give 15 years wanrantee period after shipment.
9-ISO9001 and ISO14001 and third party support and assurance from Envertec-Europe.
