Quick Details
-
Ejector Force(kN):
-
1.5 kN
-
Theoretical Shot Volume(cm³):
-
110 cm³
-
Injection Rate (g/s):
-
91 g/s
-
Injection Weight (g):
-
102 g
-
Screw Speed (rpm):
-
0 - 190 rpm
-
Screw diameter (mm):
-
35 mm
-
Weight (KG):
-
2400 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
CY-350ST-R
-
Brand Name:
-
CANYANG
-
Power (kW):
-
9 kW
-
Product name:
-
45T Rotary Vertical Injection Molding Machine
-
Keyword:
-
Plastic Machinery Equipment
-
Function:
-
Multifunctional Plastic Products Making
-
Application:
-
Inserting Plastic Products
-
Plastic Type:
-
ABS.AS.PS.HIPSPP.LDPE.HDPE.PMMD.PA6.POM.PCPVC.PET.PBT. TPE(PE)
-
Used for:
-
Plasic Products
-
Advantages:
-
Energy Efficient
-
Machine Color:
-
Green+red
-
Voltage:
-
Customed Avaiable
-
Motor:
-
5.5KW/7.5HP
Quick Details
-
Mold Height(mm):
-
120 - 320 mm
-
Ejector Number:
-
16
-
Ejector Stroke(mm):
-
55 mm
-
Ejector Force(kN):
-
1.5 kN
-
Theoretical Shot Volume(cm³):
-
110 cm³
-
Injection Rate (g/s):
-
91 g/s
-
Injection Weight (g):
-
102 g
-
Screw Speed (rpm):
-
0 - 190 rpm
-
Screw diameter (mm):
-
35 mm
-
Weight (KG):
-
2400 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
CY-350ST-R
-
Brand Name:
-
CANYANG
-
Power (kW):
-
9 kW
-
Product name:
-
45T Rotary Vertical Injection Molding Machine
-
Keyword:
-
Plastic Machinery Equipment
-
Function:
-
Multifunctional Plastic Products Making
-
Application:
-
Inserting Plastic Products
-
Plastic Type:
-
ABS.AS.PS.HIPSPP.LDPE.HDPE.PMMD.PA6.POM.PCPVC.PET.PBT. TPE(PE)
-
Used for:
-
Plasic Products
-
Advantages:
-
Energy Efficient
-
Machine Color:
-
Green+red
-
Voltage:
-
Customed Avaiable
-
Motor:
-
5.5KW/7.5HP

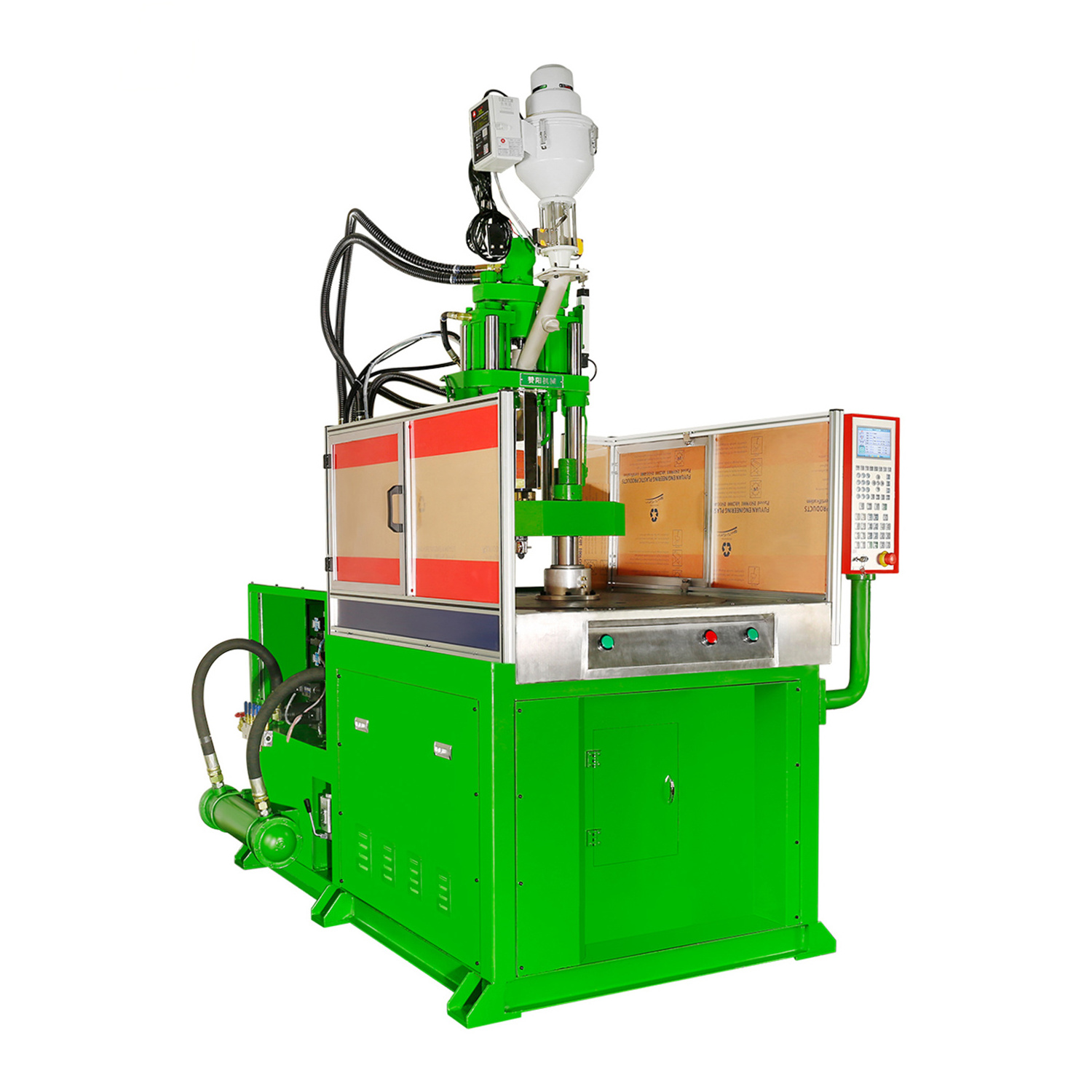

45T Slipper Pen Mobile Phone Cover Car Bumper Mold Vertical Rotary Molding Machines Moulding Machinery Plastic Injection Machine
CY-350ST-R machine characteristics
1. CY-350ST-R is a combined disc machine, vertical opening and closing mold and injection glue, which perfectly solves the mosaic injection molding;
2. The turntable lower template supports a mold with multiple lower molds on one upper mold to improve efficiency and save labor costs;
3. Three-column closing mold structure, large operating space, more convenient for mold installation;
4. The turntable adopts servo drive, and the rotation is fast and accurate, which is suitable for installing automatic devices;
5. High-quality nitrided alloy steel pipe set, high wear-resisting and anti-reverse structure, long service life of screw;
6. The temperature control system adopts computer PID control, which is intuitionistic and easy to operate, and the material temperature is accurate
7. The hydraulic system adopts multi-stage pressure independent control, linear control of speed and temperature, precise control of injection glue, opening and closing mode and other actions to make the production injection stable, and the appearance of the product is beautiful;
8. The closed mode and the injection adopt the closed-loop feedback position information of the grating ruler, and the position control is more precise;
9. The electrical appliance is equipped with safety protection device to maintain the safety of the operator; and the fault alarm information display makes the maintenance easier and convenient;
10.The computer adopts large-screen LCD design, intuitive and easy-to-operate human-machine interface, and is free to switch between Chinese, English, Russian and Korean four languages; it can store 60 sets of mold parameter memory, and the production adjustment is easy and efficient.
1. CY-350ST-R is a combined disc machine, vertical opening and closing mold and injection glue, which perfectly solves the mosaic injection molding;
2. The turntable lower template supports a mold with multiple lower molds on one upper mold to improve efficiency and save labor costs;
3. Three-column closing mold structure, large operating space, more convenient for mold installation;
4. The turntable adopts servo drive, and the rotation is fast and accurate, which is suitable for installing automatic devices;
5. High-quality nitrided alloy steel pipe set, high wear-resisting and anti-reverse structure, long service life of screw;
6. The temperature control system adopts computer PID control, which is intuitionistic and easy to operate, and the material temperature is accurate
7. The hydraulic system adopts multi-stage pressure independent control, linear control of speed and temperature, precise control of injection glue, opening and closing mode and other actions to make the production injection stable, and the appearance of the product is beautiful;
8. The closed mode and the injection adopt the closed-loop feedback position information of the grating ruler, and the position control is more precise;
9. The electrical appliance is equipped with safety protection device to maintain the safety of the operator; and the fault alarm information display makes the maintenance easier and convenient;
10.The computer adopts large-screen LCD design, intuitive and easy-to-operate human-machine interface, and is free to switch between Chinese, English, Russian and Korean four languages; it can store 60 sets of mold parameter memory, and the production adjustment is easy and efficient.
Product Paramenters
Application fields:
Widely used in the production of a variety of junction boxes, household appliances. consumer electronic products,power tools,automotive dashboards,medical devices, open containers, connectors, cables,auto parts,plugs and so on.
Widely used in the production of a variety of junction boxes, household appliances. consumer electronic products,power tools,automotive dashboards,medical devices, open containers, connectors, cables,auto parts,plugs and so on.
|
Machine suitable glue and temperature list
|
|
|
|
|
|
|
|
|||||||
|
CY-350ST-R
Plasti type
|
|
|
|
|
|
|
|
|||||||
|
Plasti type
|
TEMPERATURE SET
|
|
|
Hopper Temp
|
Screw RPM
|
Mold Temp
|
Contract
|
|||||||
|
|
Nozzle
|
First
|
Second
|
|
|
|
|
|||||||
|
ABS
|
190-250
|
180-240
|
170-240
|
80-90
|
30-60
|
50-80
|
0.6
|
|||||||
|
AS (Styrene)
|
205-240
|
190-235
|
180-230
|
75-85
|
30-60
|
35-50
|
0.4-0.6
|
|||||||
|
PS (Polystyrene)
|
180-260
|
200-260
|
160-250
|
75-85
|
35-65
|
10-75
|
0.4
|
|||||||
|
HIPS 475
|
220-270
|
190-260
|
160-250
|
80-90
|
50-80
|
5-75
|
0.4
|
|||||||
|
PP (Polypropylene)
|
210-330
|
180-260
|
160-240
|
70-80
|
50-99
|
50-80
|
1.0-2.5
|
|||||||
|
LDPE
|
230-310
|
220-300
|
170-220
|
70-80
|
50-60
|
35-60
|
1.5-5.0
|
|||||||
|
HDPE
|
230-310
|
220-300
|
170-220
|
70-80
|
50-60
|
35-60
|
2.0-5.0
|
|||||||
|
PMMD
|
180-230
|
160-240
|
140-220
|
80-100
|
40-80
|
50-90
|
0.5
|
|||||||
|
PA6 (Nylon 06)
|
210-230
|
210-230
|
200-210
|
80
|
45-50
|
50-80
|
0.8-1.5
|
|||||||
|
PA66 (Nylon 66)
|
250-280
|
240-280
|
220-280
|
80
|
45-50
|
50-80
|
2.25
|
|||||||
|
POM
|
190-210
|
175-220
|
160-210
|
80-90
|
40-80
|
50-90
|
2
|
|||||||
|
PC (Polycarbonate)
|
250-320
|
260-340
|
280-350
|
100-120
|
25-55
|
80-100
|
0.8
|
|||||||
|
PVC
|
170-220
|
160-195
|
150-190
|
60-80
|
30
|
15-60
|
0.1-0.5
|
|||||||
|
PET (Polyester resin)
|
280-295
|
270-275
|
265-270
|
130-140
|
25-45
|
30-85
|
5.0-15
|
|||||||
|
PBT
|
250
|
245
|
235
|
130-140
|
40
|
60-70
|
10
|
|||||||
|
CA
|
180-220
|
170-190
|
150-180
|
50-70
|
85-90
|
40-75
|
0.5
|
|||||||
|
SAN
|
190-250
|
180-230
|
170-220
|
75-90
|
90
|
50-80
|
0.2
|
|||||||
|
DRE+EVA
|
185
|
160
|
160
|
50-80
|
99
|
35-45
|
10
|
|||||||
|
TPE(PE)
|
170-210
|
160-190
|
150-185
|
60-80
|
30
|
20-60
|
0.1-0.4
|
|||||||
