- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOBO
-
Voltage:
-
380V
-
Power:
-
4kw
-
Dimension(L*W*H):
-
2650*700*950 Mm
-
Weight:
-
750 kg
-
Name:
-
Hydraulic spiral elbow cold gorelocker lock forming machine
-
Pipe diameter:
-
100-1500mm
-
thickness:
-
0.4-1.2mm
-
forming speed:
-
120m/min
-
power:
-
4kw
-
air consumption:
-
75L/hour 6bar
-
weight:
-
750kg
-
Dimension:
-
2650x800x1000mm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
Pipe Material:
-
Carbon steel
-
Marketing Type:
-
New Product 2023
-
Production Capacity:
-
0-90m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOBO
-
Voltage:
-
380V
-
Power:
-
4kw
-
Dimension(L*W*H):
-
2650*700*950 Mm
-
Weight:
-
750 kg
-
Name:
-
Hydraulic spiral elbow cold gorelocker lock forming machine
-
Pipe diameter:
-
100-1500mm
-
thickness:
-
0.4-1.2mm
-
forming speed:
-
120m/min
-
power:
-
4kw
-
air consumption:
-
75L/hour 6bar
-
weight:
-
750kg
-
Dimension:
-
2650x800x1000mm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Product Description
Product Application

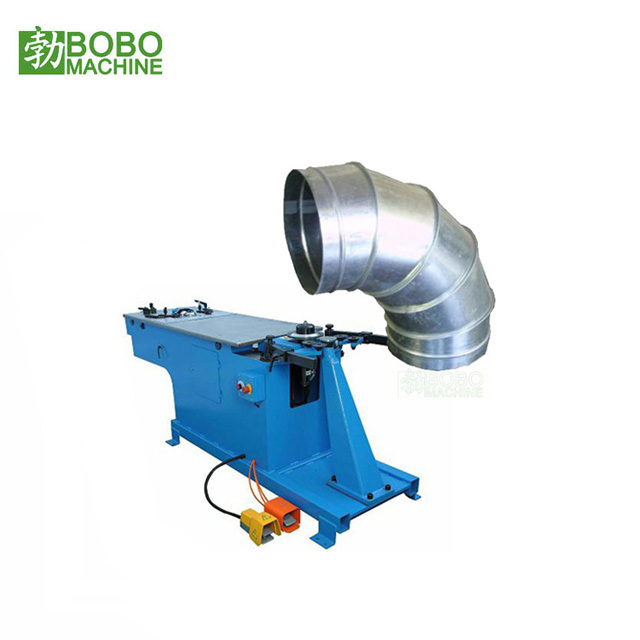

Hydraulic spiral elbow cold gorelocker lock forming machine is for producing round elbows which used to flange and fold each pieces in ventilation & air conditioning system.
Main data of Hydraulic spiral elbow cold gorelocker lock forming machine
|
|
BEM-1250
|
DCP-1000
|
DCP-1500
|
|
Diameter range
|
100-1250mm
|
150-1000mm
|
150-1500mm
|
|
Sheet thickness
|
Stainless steel 0.4-0.8mm
Galvaniazed steel: 0.4-1.25mm
Aluminum, cuprum: 0.6-1.25mm
|
Galvaniazed steel: 0.4-1.20mm
|
Galvaniazed steel: 0.4-2.0mm
|
|
Main power
|
4kw+120w(cooling fan)
|
1.5kw/1.5kw
|
2.2kw/2.2kw
|
|
Forming speed
|
0-120m/min
|
7r/min
|
7r/min
|
|
Power supply
|
customize for free
|
customize for free
|
customize for free
|
|
Dimensions
|
2650x700x950mm
|
2100x820x890mm
|
2400x820x90mm
|
|
Weight
|
750kg
|
556kg
|
556kg
|
Main Features
1) Simple structure to change male and female.
2) Very impressive forming speed,up to 120m/min.
3) Hydraulic system ensure stable working.
