Quick Details
-
Brand Name:
-
SEA
-
Standard or Nonstandard:
-
Standard
-
Product Name:
-

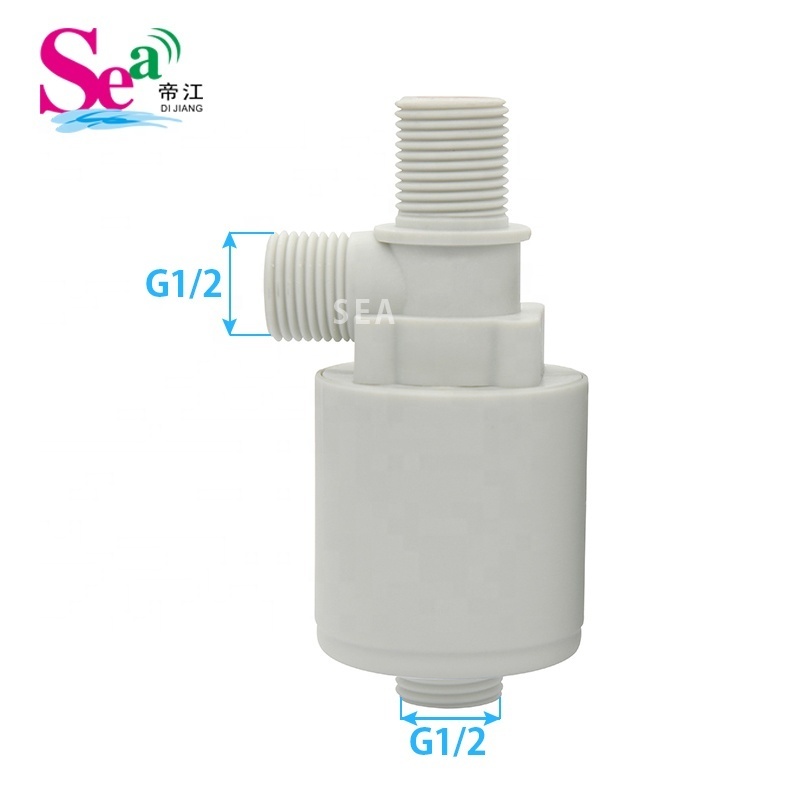

SEA FQF-04 Automatic water refill float valve switch
-
Model No.:
-
FQF-04
-
Material:
-
Rubber
-
Flow Rate Range:
-
1~30L/min
-
High temperature medium tem[erature:
-
-20℃~100℃
-
Connection:
-
G1/2''
-
Water Pressure:
-
≤1.0MPa
Quick Details
-
Port Size:
-
G1/2''
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FQF-04
-
Brand Name:
-
SEA
-
Standard or Nonstandard:
-
Standard
-
Product Name:
-
SEA FQF-04 Automatic water refill float valve switch
-
Model No.:
-
FQF-04
-
Material:
-
Rubber
-
Flow Rate Range:
-
1~30L/min
-
High temperature medium tem[erature:
-
-20℃~100℃
-
Connection:
-
G1/2''
-
Water Pressure:
-
≤1.0MPa
SEA FQF-04 Automatic water refill float valve switch water tank automatically fill automatic stop water level control valve
Product Principle
Automatic water level control valve: automatically supply when water less down to the level ; automatically stop when water fulfill to the setting line.
Advantages
This valve is the replacement of the traditional float ballcock, which can be applied to various systems of high water tanks, pools, water towers of the industry and civil construction, etc.
- Automatic control: automatically supply and stop when water less or fullfill
- Four inlet type; Low water quality required; Large flow range of G1/2'' G3/4'' water inlet
- Beautiful appearance, small size, practical, simple installation
- Without electricity, easy to use, long life, low failure rate, saving water resources
- Max install inclination: 30 degree.
- Working pressure range: < 1.0MPa; Tap-water residents: 0.3-0.5MPa; The use of siphon water supply needs to ensure that the water level drop is greater than 80cm,otherwise the water yield will be affected.
- Applicable Medium: Water; Tap-water
- Applicable Medium temperature: ≤1-80℃
- High temperature resistant medium temperature: -20 ℃ ~+100 ℃
- If 2 float ball valve installed in the same tank,they should be kept on the same water level.
Attention
-
Reference value of water pressure: 0.2kg of minimum water pressure;
Maximum water pressure is 10kg
- The product shall be installed vertically on the horizontal surface
- This product belongs to the level control valve. The float must be vertically downward when installed
- First fix the inlet pipe on the horizontal surface, and then connect the valve to the inlet pipe.The main inlet pipe shall be suitable for the nominal diameter of the valve
- When using, the globe valve before this valve shall be opened
- When using, the globe valve before this valve shall be opened
- If two valves are installed in the same pool, they should be kept on the same level.
- Before installing and using this valve, be sure to clean the impurities in the pipe
- There will be water leakage at the bottom when the inner product is used, which is a normal phenomenon.
- 2 x Float Ball Valve
There are 4 types of ball float valves
- FQF-01 : Pilot inlet built-in
- FQF-02 : Pilot inlet outside
- FQF-03 : Verticalinlet built-in
- FQF-04 : Vertical inlet outside
- And the pipe of G3/4'' is only adding a rotary union on the basic of G1/2'' as below description.
Product Description
FQF-01
FQF-02
FQF-03
FQF-04
FQF-05 Stainless Steel Material
PATENT PRODUCT !!!
Applied Range
PRODUCT LIST :
