ANTS Machine is a leading Chinese industrial lathe machinery andtooling machines supplier, located in the downtown of Shanghai City.Since our company was founded, based on the advantage of BOCHI which is the No.1 Chinese machine tool manufacturer, we continuallyintroduce top Chinese lathe machinery enterprises and their productsto international markets and export them to approximately 30countries and several regions across the globe, such as BOCHI,Shanghai Machine Tool, SPARK etc. Today we stand tallamidst a number of competitors across the world.
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
300 - 24000
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Model Number:
-
MX220
-
Table Travel (mm):
-
220
-
Year:
-
2023
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
1050X850X1200mm
-
Weight (KG):
-
240
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
30 kg
-
Marketing Type:
-
Hot Product 2023
-
Model:
-
MX220 cnc milling machine
-
Brand:
-
ANTISHICNC
-
Application:
-
Metal Mill & Turning
-
Machine Type:
-
CNC Milling Machine
-
CNC or Not:
-
Yes
-
Precision:
-
0.02mm
-
Certification:
-
CE,ISO
-
Keyword:
-
Mini Cnc Milling Machine Metal
-
Table size:
-
390X92mm
-
Color:
-
customizable
Quick Details
-
Table Travel (X) (mm):
-
220
-
Table Travel (Y) (mm):
-
120
-
Table Travel (Z) (mm):
-
200
-
Range of Spindle Speed(r.p.m):
-
300 - 24000
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Model Number:
-
MX220
-
Table Travel (mm):
-
220
-
Year:
-
2023
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
1050X850X1200mm
-
Weight (KG):
-
240
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
30 kg
-
Marketing Type:
-
Hot Product 2023
-
Model:
-
MX220 cnc milling machine
-
Brand:
-
ANTISHICNC
-
Application:
-
Metal Mill & Turning
-
Machine Type:
-
CNC Milling Machine
-
CNC or Not:
-
Yes
-
Precision:
-
0.02mm
-
Certification:
-
CE,ISO
-
Keyword:
-
Mini Cnc Milling Machine Metal
-
Table size:
-
390X92mm
-
Color:
-
customizable
Video Description

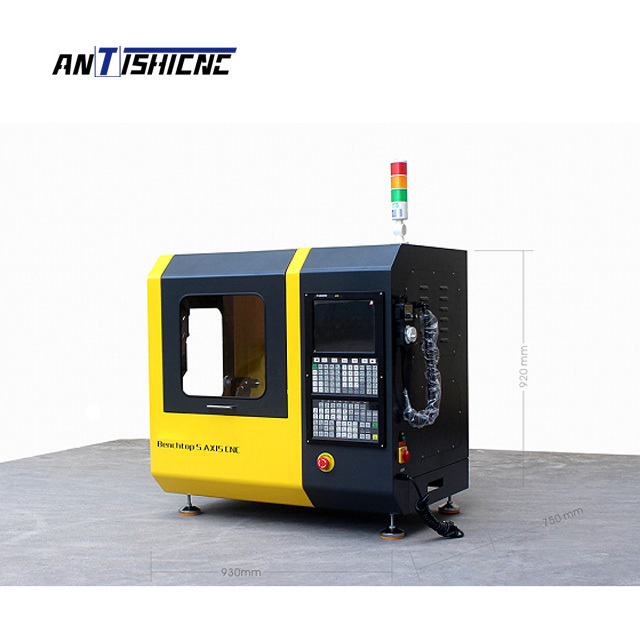

China professional factory automatic high speed VMC vertical cnc machine center
|
Technical parameters
|
|
|
||
|
X axis travel
|
220mm
|
|
||
|
Y axis travel
|
120mm
|
|
||
|
Z axis travel
|
200mm
|
|
||
|
Control system
|
KY 1000MC controller
|
|
||
|
Instruction
|
Run ISO G code
|
|
||
|
MPG hand wheel
|
5 axis
|
|
||
|
Spindle motor
|
2.2kw
|
|
||
|
Spindle speed
|
300-24,000r/min
|
|
||
|
Collet
|
ER20
|
|
||
|
Tool DIA. range
|
4-12mm
|
|
||
|
Guide rail
|
3 Axis High-precision linear guide
|
|
||
|
The max moving speed
|
2000mm/min
|
|
||
|
The max feeding speed
|
1000mm/min
|
|
||
|
Positioning accuracy
|
0.02mm
|
|
||
|
Repeatability accuracy
|
0.01mm
|
|
||
|
Transmission
|
ball screw
|
|
||
|
Table size
|
460*130mm
|
|
||
|
T slot (amount*width)
|
38*12mm*3
|
|
||
|
Max. load
|
30kg
|
|
||
|
Table structure
|
Full cast iron
|
|
||
|
Power
|
220VAC / 110VAC
|
|
||
|
Weight(NW/GW)
|
240/270kg
|
280/320kg
|
||
|
Overall dimension
|
930*750*1100mm
|
930*750*1600mm with pedestal
|
||
|
Packing size
|
1050*850*1200mm
|
1050*850*1700mm with pedestal
|
||
|
4 axis version (optional)
|
|
|
||
|
4th axis travel
|
±360°
|
|
||
|
Max Clamping
|
Φ60mm
|
|
||
|
5 axis version (optional)
|
|
|
||
|
B axis travel
|
+30°~ -120°
|
|
||
|
C axis travel
|
±360°
|
|
||
|
Clamping range
|
Φ100*80mm
|
|
||
