Quick Details
-
Voltage:
-
220v/60Hz 3 phase
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ECHO
-
Dimension(L*W*H):
-
2800*1350*1720mm
-
Product name:
-

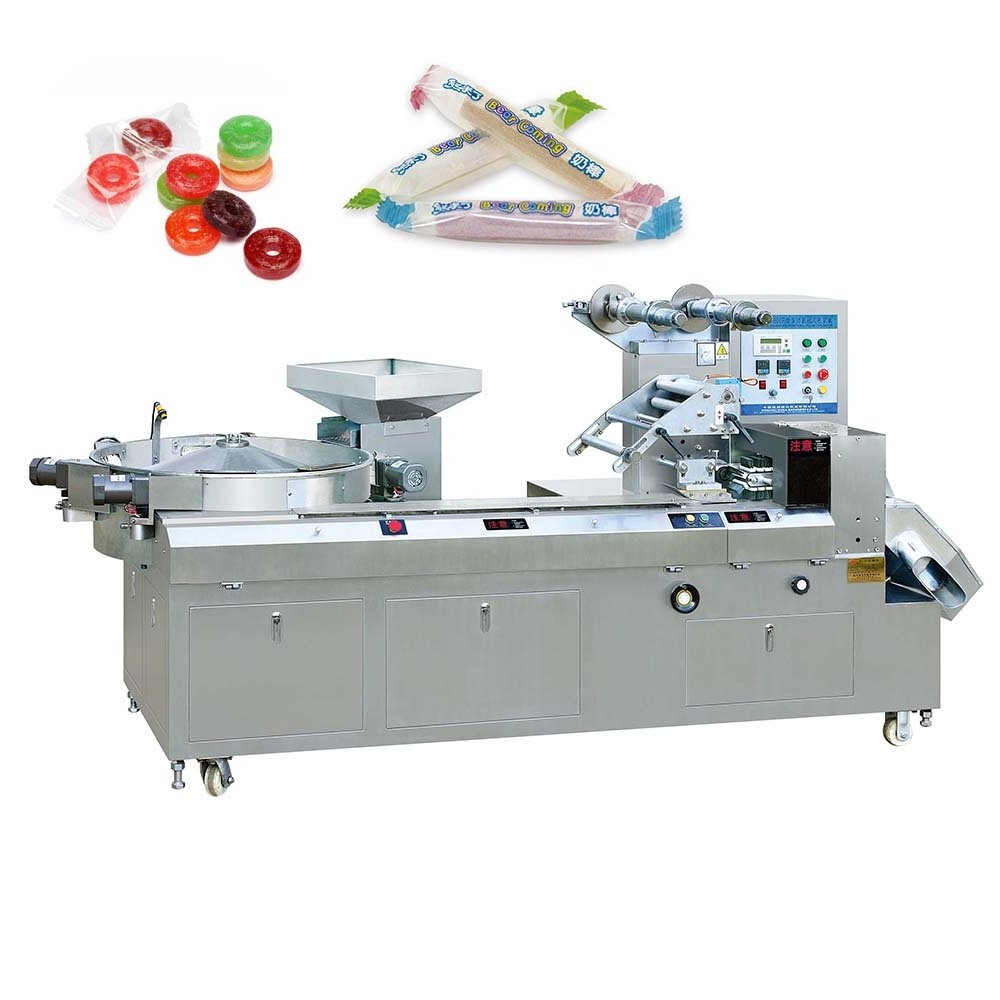

candy packing machine
-
Bag type:
-
Pillow Bag
-
Machine type:
-
Multi-function Packing Machine
-
Packing material:
-
CPP. PET
-
Material:
-
Stainless Steel 304
-
CNC:
-
YES
-
FACTORY:
-
YES
-
Customization:
-
yes
-
Certification:
-
CE
Quick Details
-
Function:
-
Wrapping, Labeling, COATING, Sealing
-
Packaging Type:
-
Film, Foil
-
Packaging Material:
-
Plastic, Paper
-
Voltage:
-
220v/60Hz 3 phase
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ECHO
-
Dimension(L*W*H):
-
2800*1350*1720mm
-
Product name:
-
candy packing machine
-
Bag type:
-
Pillow Bag
-
Machine type:
-
Multi-function Packing Machine
-
Packing material:
-
CPP. PET
-
Material:
-
Stainless Steel 304
-
CNC:
-
YES
-
FACTORY:
-
YES
-
Customization:
-
yes
-
Certification:
-
CE
Main Performance And Structure Features:
1. Automatic shows error in touch panel, safety shield, safety switch.
2. This system can store products’ parameters more than 100pcs. The touch screen shows everything in Chinese (English), operation indication, error signal and quantity.
3. Easy operation and size management via touch panel.
4. Pack size is independent of the product size: narrow and wider packs are possible.
5. Auto-splicer. Economic energy and packaging material usage.
6. Fast speed, less empty bags, steady packing capacity.
7. Easy to change the spare parts, whole structure designed for long time using.
8. Low noise. Use synchronization belt.
We also supply other devices:
1.Date coding printer, 2.Air-filling device, 3.Punching device
4.Double frequency converter controller / servo motor for choice
Note: We can design and make machine according to the customers’special needs.
| Machine parameters | ||
| Model |
ECHO -800 |
ECHO -1200 |
|
Capacity |
Max 800 pcs/min(see different size) |
Max 1100 pcs/min(see different size) |
|
Packing Spec. |
Length 12-40mm Width 12-30mm Height 5-18mm |
Length 12-40mm Width 12-30mm Height 5-18mm |
|
Length of Finished bag |
50-80mm | 50-80mm |
| Power |
220V 50/60HZ 4 KW |
220v 50/60hz 4kw |
|
Machine Size(mm) (L*W*H) |
2450x1150x1550 mm
|
2800*1350*1720mm |
| Machine Weight | 950kg | 1400kg |
|
Thickness of the film |
0.030-0.05mm |
|
| Candy Shape |
Square, Ellipse, Oblate, Globular, Plum Blossom-Shaped |
|
|
Application Product |
It wraps products such as rectangular, square, flat or round pieces of chewy candy toffees, milk toffees, chewing gum and so on in tight single or multi-piece packs. | |
| Packing Material |
OPP,CPP,PET Metallized film, Al-plastic film, Paper-rubber complex,etc. |
|
|
Working Hour (suggestion): |
less than 24 hours per day. |
|
| Parts of Machine | ||||||||
| Parts | Touch Screen | PLC |
Servo Motor |
Cylinder |
proximity switch |
Photo Sensor |
Solid State Relay |
Temperature Controllor |
| Brand | SIEMENS | SIEMENS | PANASONIC | AIRTAC | TOSHIBA | SICK | SHENGLONG | OMRON |
| Oringin | Germany | Germany | Japan | China | Japan | Germany | China | Japan |
| The Parts Can Be Replaced As Your Need. | ||||||||
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
6. Assist the client in drafting the construction plan;
ECHO have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
2. Parts Replacement , Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3. Engineer Asssignment , Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4. Online Instruction , We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5. Feedback Survey, The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
