Quick Details
-
Place of Origin:
-
China
-
Printing method:
-
Direct thermal & Thermal transfer
-
Resolution:
-
300 DPI
-
Maximum print speed:
-
6/8 IPS
-
Maximum print width:
-
105.6mm
-
Maximum print length:
-
2000mm
-
Memory:
-
8 MB Flash ROM, 16 MB SDRAM
-
Media sensor:
-
Adjustable reflective & Transmissive
-
Interfaces:
-
RS-232, USB 2.0, LAN
-
Power rating:
-
24 VDC, 2.0 A
-
Storage environment:
-
-40° F ~ +140° F (-40° C ~ 60° C)
Quick Details
-
Max Paper Size:
-
105.6 mm
-
Black Print Speed:
-
6 IPS(152.4 mm/s)
-
Max. Resolution:
-
300 DPI
-
Place of Origin:
-
China
-
Printing method:
-
Direct thermal & Thermal transfer
-
Resolution:
-
300 DPI
-
Maximum print speed:
-
6/8 IPS
-
Maximum print width:
-
105.6mm
-
Maximum print length:
-
2000mm
-
Memory:
-
8 MB Flash ROM, 16 MB SDRAM
-
Media sensor:
-
Adjustable reflective & Transmissive
-
Interfaces:
-
RS-232, USB 2.0, LAN
-
Power rating:
-
24 VDC, 2.0 A
-
Storage environment:
-
-40° F ~ +140° F (-40° C ~ 60° C)
Product Description

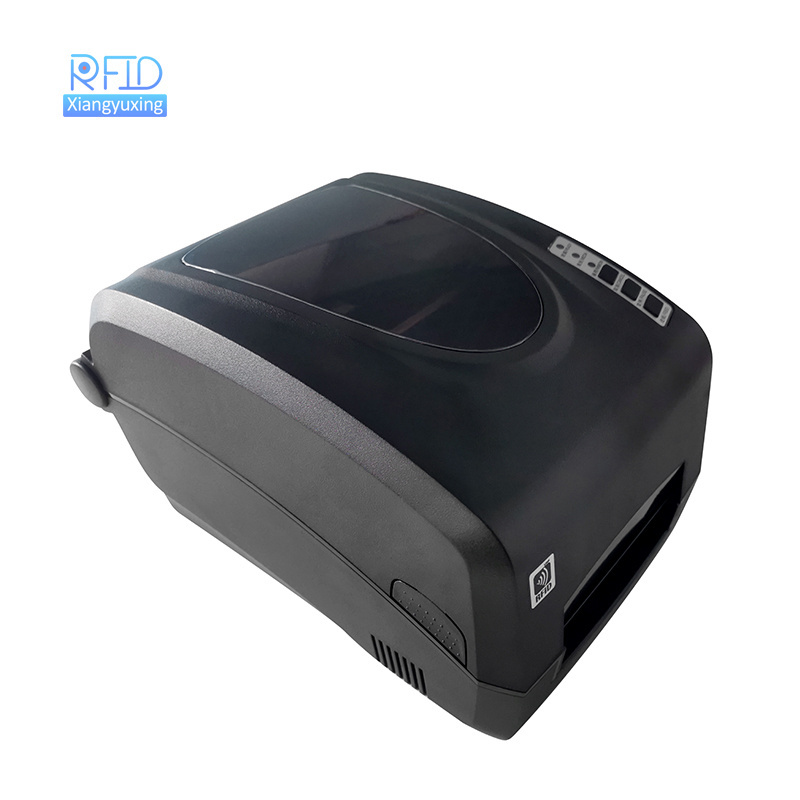

RFID Label Printer
X1iD RFID label printer supports printing labels while RFID reading and writing, printing only or RFID reading and writing only.
Its compact appearance, powerful performance, compactness and durability combine to meet the needs of small space and high-intensity printing applications.
The UHF label printer supports global frequency bands, supports printing, reading and writing of labels of ISO18000-6C protocol.
The HF label printer supports ISO/IEC 15693/14443A/NFC protocol, can write ASCII code, hexadecimal, NDEF format text or URL address, support tag encryption and locking.
It is easy to read the data of the tag (TID, EPC, etc.), and converting it to text or barcode and printing it on the current label at the same time, and can write the specified data to the label.
The printer's functions of reading code, writing code and real-time status feedback are all at the front end of the industry. The machine intelligent learning algorithm is adopted to avoid misreading, miswriting, rereading, rewriting, etc. Bad label automatically prints the error mark.
The printer's unique one-button auto-calibration function, combined with the computer-based visual RFID calibration tool, allows quick and easy parameter setting for all types of labels, eliminating the need for cumbersome manual operations.
Specification
|
Model
|
X1D
|
X1iD
|
|
|
Printing method
|
Direct thermal & Thermal transfer
|
|
|
|
Resolution
|
203 DPI (8dots/mm)
|
300 DPI(11.8dots/mm)
|
|
|
Maximum print speed
|
8 IPS(203.2mm/s)
|
6 IPS(152.4mm/s)
|
|
|
Maximum print width
|
4.25″(108mm)
|
4.15″ (105.6mm)
|
|
|
Maximum print length
|
157.5″（4000mm）
|
78.7″（2000mm）
|
|
|
Memory
|
8 MB Flash ROM, 16 MB SDRAM
|
|
|
|
Media
|
Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper
Width：4.6″（118mm） max.,0.8″（20mm）min. Supply roll: OD 5″(127mm) max., ID 1″(25.4mm) min. Thickness: 0.06～1.5mm(0.002″～0.06″), including liner, support flexible on-metal tag. |
|
|
|
Ribbon
|
Wax, Wax/Resin, Resin
Ribbon roll: OD 2.75″(70mm) max. with ID 1″(25.4mm) core or ID 0.5″(12.7mm) core Max width: 110mm; Max length: 300M |
|
|
|
Media sensor
|
Adjustable reflective & Transmissive
|
|
|
|
RFID function
|
Integrated high performance RFID reader/encoder supports tags compatible with UHF EPC Gen 2/ISO 18000-6c.
|
|
|
|
Bar Code Types
|
1D Barcode : Code 39，Code 93，Code 128，Codabar，EAN-8/13/128，Interleave
2 of 5，UCC-128，UPC A/E 2 and 5 add-on, etc. 2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc. |
|
|
|
Interfaces
|
RS-232, USB 2.0, LAN
|
|
|
|
Power rating
|
24 VDC, 2.0 A
|
|
|
|
Weight
|
2.62KGS
|
|
|
|
Dimensions
|
W208 x D310 x H195 mm
|
|
|
|
Operation
environment |
Temperature: 32° F ~ +104° F (0° C ~ 40° C)
Relative humidity: 5% - 85% non condensing |
|
|
|
Storage environment
|
Temperature: -40° F ~ +140° F (-40° C ~ 60° C)
Relative humidity: 5% - 85% non condensing |
|
|
|
Options
|
peeler.
|
|
|
