Quick Details
-
Place of Origin:
-
Henan, China
-
Protection class:
-
IP65
-
Certification:
-
CE/ISO/FCC
-
Control distance:
-
100 m
-
Application:
-
Overhead Crane/Hoist
-
Receiver power:
-
12V/ 24V/36V/220V/380V (optional)
-
Working Temperature:
-
-35°c ~ +80°c
-
Unique Code:
-
Over 4.3billon Unique ID Codes
-
Control Distance:
-
up to 100m
-
Output capacity:
-
Full sealed relay output with 5 amperes
-
Transmitter power:
-
AA-size batteries
Quick Details
-
Function:
-
Waterproof
-
Brand Name:
-
JinYanding
-
Model Number:
-
f21-2d
-
Place of Origin:
-
Henan, China
-
Protection class:
-
IP65
-
Certification:
-
CE/ISO/FCC
-
Control distance:
-
100 m
-
Application:
-
Overhead Crane/Hoist
-
Receiver power:
-
12V/ 24V/36V/220V/380V (optional)
-
Working Temperature:
-
-35°c ~ +80°c
-
Unique Code:
-
Over 4.3billon Unique ID Codes
-
Control Distance:
-
up to 100m
-
Output capacity:
-
Full sealed relay output with 5 amperes
-
Transmitter power:
-
AA-size batteries
Application
Product Application
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls.
Products Description
Product Features
1. High strength nylon fiber casing，high structural strength, strong and durable, comfortable to handle, suitable for
various harsh environments；
2. Over 4.3billon unique ID codes,never repeat；
3. Super sigal strength 100m remote control;
4. Various power switching variable voltage
5. Green Safety Key
6. Signal indicator of receiver
7. Program the button function by computer software.
8. Function buttons can be programmed to interlock or non-interlock, toggle or normal etc.
9. With battery voltage warning device，and the power supply will be cut off during low power.
10.Safe switch key is to prevent from the unauthorized user;
11.Free transmitter protecting cover available.
12. Control distance can reach to 100m
13. Water-Proof, Dust-Proof, Anti-drop, Anti-pressure。
Product Paramenters
|

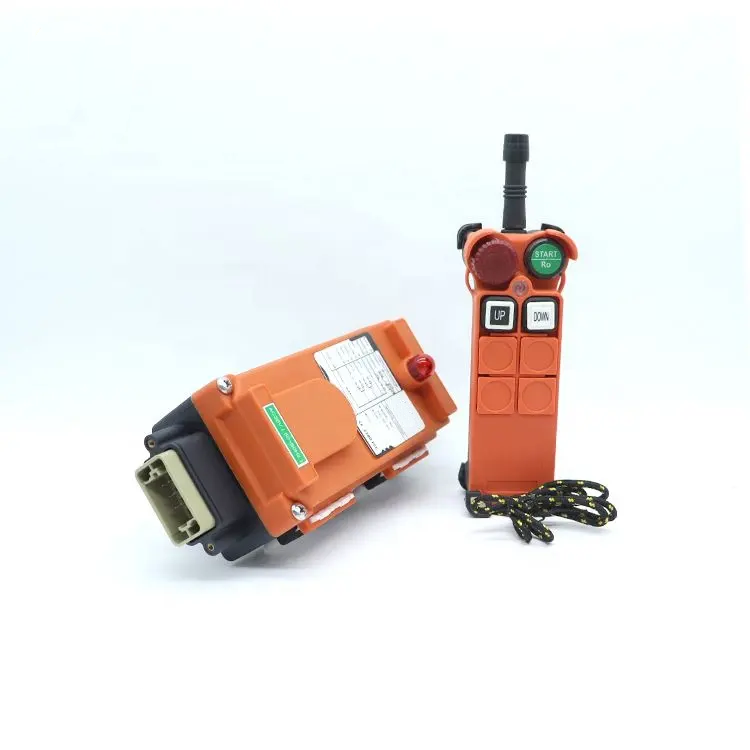

Model
|
F21-2D
|
|
Application
|
Hoists, winches, grab, lifts, doors and other industrial machine
|
|
Frequency
|
310.0325~331.165Mhz
|
|
Frequency generation:
|
Crystal (plug in)
|
|
Channel
|
80
|
|
Channel Spacing
|
0.2675MHz
|
|
Control motions
|
4
|
|
Control distance
|
Up to 100m
|
|
Certificates
|
CE, FCC, ISO9001:2008
|
|
Number of push button
|
2 Double speed push button+1 start button+1 emergency stop button
|
|
Unique code
|
Over 4.3billon unique ID codes .
|
|
Working temperature
|
-35°C ~ +80°C
|
|
Enclosure protection class
|
IP65
|
|
Transmitter power
|
AA-size batteries
|
|
Receiver power
|
AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
|
|
Output capacity
|
Full sealed relay output with 5 amperes
|
|
Warranty
|
1 year
|
|
Material
|
glass fiber
|
Connection Diagram
Product Detail Features
