Quick Details
-
Table Travel (Y) (mm):
-
400 mm
-
Weight (T):
-
4 T
-
Table Travel (Z) (mm):
-
500 mm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Spindle Motor Power(kW):
-
5.5
-
Max. Table Load(kg):
-
400 kg
-
Place of Origin:
-
China
-
Product name:
-

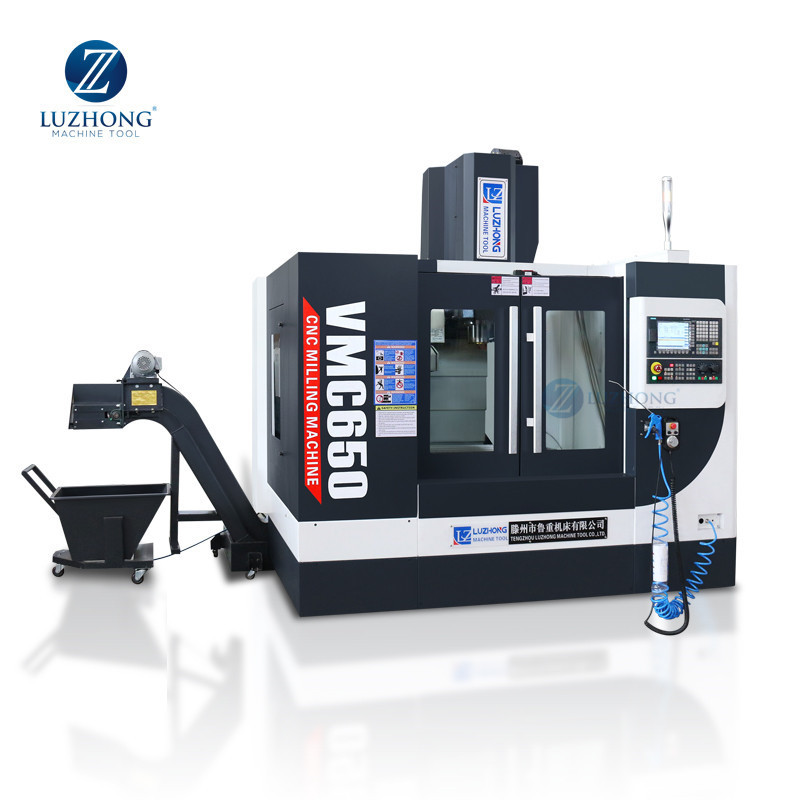

vertical Milling Machine vmc 650 small vmc machine price
-
Model:
-
VMC650
-
Table size:
-
800x400
-
XYZ Travel:
-
650x400x500
-
spindle center and column surface:
-
469
-
spindle nose and table surface:
-
100-600
-
T slot:
-
3-18*125
-
Spindle taper:
-
BT40
-
Max. spindle speed:
-
8000(10000 optional)
-
After Warranty Service:
-
Video technical support
Quick Details
-
Table Size (mm):
-
900x400
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
650 mm
-
Table Travel (Y) (mm):
-
400 mm
-
Weight (T):
-
4 T
-
Table Travel (Z) (mm):
-
500 mm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Spindle Motor Power(kW):
-
5.5
-
Max. Table Load(kg):
-
400 kg
-
Place of Origin:
-
China
-
Product name:
-
vertical Milling Machine vmc 650 small vmc machine price
-
Model:
-
VMC650
-
Table size:
-
800x400
-
XYZ Travel:
-
650x400x500
-
spindle center and column surface:
-
469
-
spindle nose and table surface:
-
100-600
-
T slot:
-
3-18*125
-
Spindle taper:
-
BT40
-
Max. spindle speed:
-
8000(10000 optional)
-
After Warranty Service:
-
Video technical support
Products Description
Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc
|
Specifications
|
Units
|
VMC650
|
|
Table size
|
mm
|
800x400
|
|
X axis travel
|
mm
|
650
|
|
Y axis travel
|
mm
|
400
|
|
Z axis travel
|
mm
|
500
|
|
Max. worktable load
|
kg
|
400
|
|
T slot(number-width-pitch)
|
|
3-18x125
|
|
Max. spindle speed
|
rpm
|
8000(Optional:10000 )
|
|
Spindle taper
|
mm
|
BT40
|
|
Main motor power
|
kw
|
5.5
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/20
(Optional:48/48/36 )
|
|
Cutting feed speed
|
mm/min
|
1-10000
|
|
Guide rail type
|
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
469
|
|
Distance between spindle nose and worktable surface
|
mm
|
100-600
|
|
Positioning accuracy
|
mm
|
±0.0075
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Tool magazine
|
|
16 Armless/(Optional: Arm 24 )
|
|
Max. tool diameter
|
mm
|
φ90
|
|
Max.tool weight
|
kg
|
8
|
|
Machine weight
|
kg
|
4000
|
|
Overall dimension
|
mm
|
2400x2000x2550
|
VMC Machine Standard Details
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40;
2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan armless tool magazine .
2. Optional: Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
3. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
2. Brand: HIWIN or PMI
SCREW AND COUPLING
1 China famous brand lead screw,
2. lead screw bearing using SKF or NACHI bearing,
3. coupling R+W directly connected
3. coupling R+W directly connected
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner.
Cooling the electric box better .
TOOL UNCLAMP CYLINDER
Taiwan spindle Tool unclamp cylinder
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change
STRONG CHIP PUNCHING
1. High strength high quality cast iron,
2. long span bed base and vertical column structure
AIR GUN AND WATER GUN
High-pressure air guns and high-pressure water guns
MACHINE CONSTRUCT
1. Standard with Milling chuck
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
LUBRICATION SYSTEM
Automatic centralized lubrication device .
.
TESTING
Each machine passed Renishaw laser interferometer testing and ballbar testing
