When you lose your card, you can press the reset button to initialize the lock.
A sound of 'BEEP' the lock is initialized and in the single card mode
Press the button again during 5 short sounds of 'BEEP' the lock would be in the double card mode
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
C-06
-
Product Name:
-
smart cabinet lock
-
Unlock way:
-
Card
-
Suitable for:
-
Fit Various Cabinets and Drawers
-
Color:
-
Black
-
Size:
-
74*74*29mm
-
Sensing distance:
-
50mm
-
Feature:
-
Easy Installation
-
Battery:
-
6V(4*AAA Batteries)
-
Weight(kgs):
-
0.25kg
-
Warranty:
-
1 Year
Quick Details
-
Door Type:
-
Wood door
-
Place of Origin:
-
GUA
-
Brand Name:
-
Easloc
-
Model Number:
-
C-06
-
Product Name:
-
smart cabinet lock
-
Unlock way:
-
Card
-
Suitable for:
-
Fit Various Cabinets and Drawers
-
Color:
-
Black
-
Size:
-
74*74*29mm
-
Sensing distance:
-
50mm
-
Feature:
-
Easy Installation
-
Battery:
-
6V(4*AAA Batteries)
-
Weight(kgs):
-
0.25kg
-
Warranty:
-
1 Year
Specification
Key Features
1)
Invisible design:
no panel, no key hole. No body except god and you will know your secret.
2) Read (swipe) RFID card to Unlock. No mechanical key needed.
3) Up to 50mm inductive reading distance , fast unlocking.Can be installed on thicker cabinet/locker/box/compartment.
4) Easy installation . No need to drill holes, will not destroy the appearance of your cabinet.
5) Moisture-Proof ABS lock body shell, stainless steel latch and side catch, makes the lock stronger and more durable.
6) Low power consumption , 4 AAA batteries last for 1 year.
7) Low battery alarm and automatic opening , plus external power port, you don't need to worry about being unable to unlock it if battery exhausted.
2) Read (swipe) RFID card to Unlock. No mechanical key needed.
3) Up to 50mm inductive reading distance , fast unlocking.Can be installed on thicker cabinet/locker/box/compartment.
4) Easy installation . No need to drill holes, will not destroy the appearance of your cabinet.
5) Moisture-Proof ABS lock body shell, stainless steel latch and side catch, makes the lock stronger and more durable.
6) Low power consumption , 4 AAA batteries last for 1 year.
7) Low battery alarm and automatic opening , plus external power port, you don't need to worry about being unable to unlock it if battery exhausted.
|
Place of Origin
|
Guangdong, China
|
|
Brand Name
|
Easloc
|
|
Product Name
|
Cabinet Lock
|
|
Model Number
|
C-06
|
|
Application
|
drawers, lockers, wardrobes
|
|
Unlock Method
|
Card
|
|
Card type
|
MF 1 Card (13.56MHz)/ RFID Card
|
|
Sensing distance
|
50mm
|
|
Color
|
Black
|
|
Size
|
74*74*29mm
|
|
Low-voltage directives
|
4.8V
|
|
Battery
|
4*AAA alkaline battery
|
|
Static power consumption
|
< 8 uA
|
|
Power consumption
|
<150mA
|
|
Warranty
|
12 Months
|
Product Description
Lock Details:
Reset Button
High quality steel latch, special design easy to lock .
2 pushing bars with springs, it helps to push door auto open
2 pushing bars with springs, it helps to push door auto open
Applicable for any metal of wooden drawer, cabinet or sliding door
Long distance induction is up to 50mm
Long distance induction is up to 50mm
Powered by 4 x AAA batteries
External power can be supplied for emergency
If at low voltage, it will alarm 8 sounds 'BEEP' Please replace the battery in time.
The lock will not be locked when it's power off.
External power can be supplied for emergency
If at low voltage, it will alarm 8 sounds 'BEEP' Please replace the battery in time.
The lock will not be locked when it's power off.

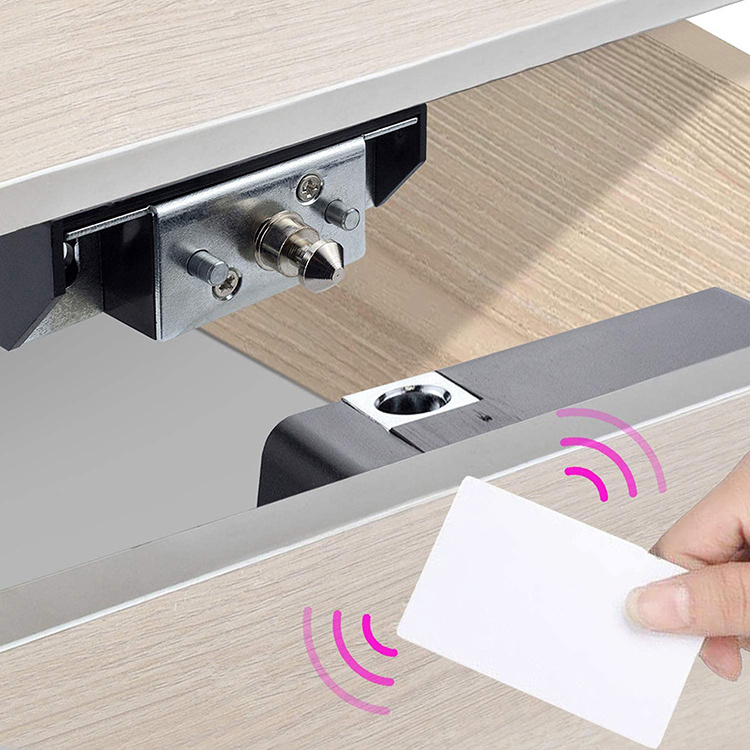

Concealed Installation
I
t is installed inside, no need drilling hole.
Concealed installation will keep cabinet appearance more security
.
Panel Dimension:
Installation Diagram:
