Quick Details
-
Type:
-
Grain Processing Plant
-
Use:
-
Seed Conditioning Cleaning Grading Coating Packing
-
Key Selling Points:
-
High Quality Seed Cleaner
-
Production Capacity (kg/h):
-
1000 - 3000
-
Sieve Size(mm):
-
150*200
-
Power (kW):
-
0.55
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Rated Capacity:
-
3 t/h (beans) seed cleaning plant
-
Application:
-
Seeds, cereal grains, beans, melon seeds, oil seeds, garden seeds etc.
-
Total Power:
-
0.5KW
-
Main Beans Processing Equipment:
-
Vibro screener, destoner, belt gravity separator, packing machine
-
Auxiliary Beans Conveying System:
-
Bucket elevator, conveyor, feeder, flow piping
-
Dust Removal System:
-
Blower, dust collector, air pipings
-
Other Auxiliary Equipment:
-
Temp. storage bins, steel structure and electric control system
-
Cleaning Efficiency:
-
99%
-
Screen Sieve:
-
Stainless Steel
-
Certification:
-
ISO9001:2008, CE, BV
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyde-Maosheng
-
Dimension(L*W*H):
-
2300*1600*2200mm
-
Type:
-
Grain Processing Plant
-
Use:
-
Seed Conditioning Cleaning Grading Coating Packing
-
Key Selling Points:
-
High Quality Seed Cleaner
-
Production Capacity (kg/h):
-
1000 - 3000
-
Sieve Size(mm):
-
150*200
-
Power (kW):
-
0.55
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Rated Capacity:
-
3 t/h (beans) seed cleaning plant
-
Application:
-
Seeds, cereal grains, beans, melon seeds, oil seeds, garden seeds etc.
-
Total Power:
-
0.5KW
-
Main Beans Processing Equipment:
-
Vibro screener, destoner, belt gravity separator, packing machine
-
Auxiliary Beans Conveying System:
-
Bucket elevator, conveyor, feeder, flow piping
-
Dust Removal System:
-
Blower, dust collector, air pipings
-
Other Auxiliary Equipment:
-
Temp. storage bins, steel structure and electric control system
-
Cleaning Efficiency:
-
99%
-
Screen Sieve:
-
Stainless Steel
-
Certification:
-
ISO9001:2008, CE, BV
Hyde Machinery (Maosheng Group)
- Seed processing plant: 1~15 t/h
- Flour mill plant: 40~1000 t/d
- Manufacturer since 1976

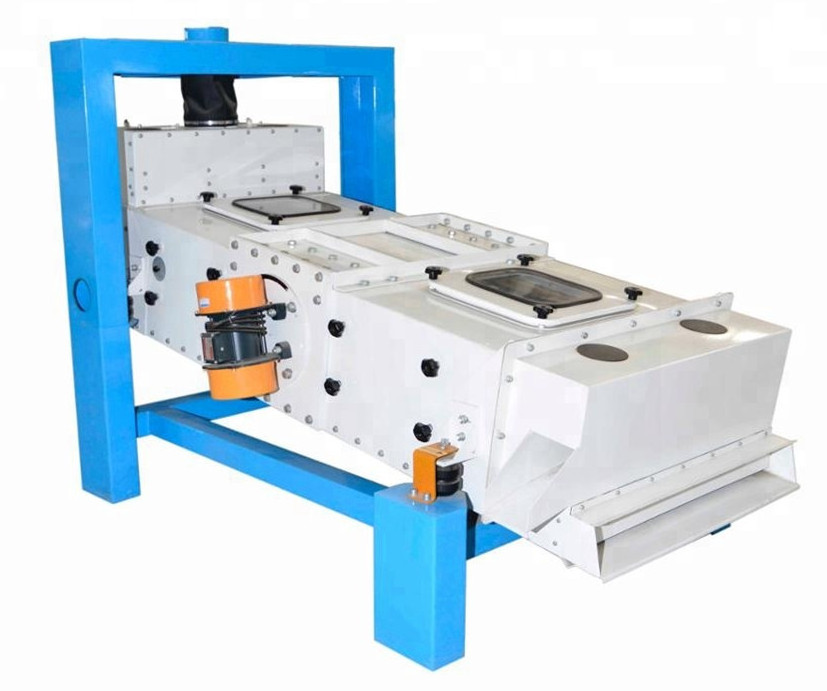

TQLZ Vibro Separator for Grains Seeds Pre-cleaning & Size Grading
1) Function: pre-cleaning and cleaning raw grains and seeds, grading by size, removing large and small impurities, and dust with aspirator system.
2) Application: raw grains and seeds
3) Capacity: 1~120 t/h for pre-cleaning, 1~25t/h for cleaning (based on wheat)
Application of TQLZ Vibration Cleaner Grain Separator
TQLZ vibration sieve cleaner is widely used for pre-cleaning and cleaning of grains and seeds for grain depot and seed company , and raw grains for flour mill, rice mill, feed, chemical and food processing industry . One machine can clean various grains such as wheat, maize, rice, beans, oil seeds by changing different screens.
Hyde TQLZ vibration cleaner can further remove light impurities and dust if equipped with vertical air aspirator, and get ideal air cleaning effect by adjusting the machine according to impurity content of raw grains.
| For 3t/h beans cleaning plant | For 2t/h sesame cleaning plant |
| For 60t/d wheat flour mill | For 15t/h coffee bean cleaning plant |
Technical Specification of TQLZ Vibrating Screener
|
Model |
Screen Size (W x L) (cm2) |
Capacity on Wheat (t/h) |
Screen Angle (°) |
Power (kW) |
Weight (kg) |
Size (L x W x H) (mm) |
Air Suction Volume (m3/min)
|
||
|
Pre-cleaning |
Cleaning |
Pre-cleaning |
Cleaning |
||||||
|
TQLZ40x80 |
40x80 |
3 |
2 |
6 |
6 |
2x0.15 |
190 |
1300x820x1095 |
22 |
|
TQLZ60x100 |
60x100 |
20 |
5 |
6 |
6 |
2x0.25 |
360 |
1640x1550x1455 |
32 |
|
TQLZ100x100 |
100x100 |
30 |
8 |
6 |
6 |
2x0.25 |
420 |
1640x1610x1455 |
52 |
|
TQLZ100x150 |
100x150 |
50 |
12 |
9 |
6 |
2x0.37 |
520 |
2140x1610x1455 |
80 |
|
TQLZ100x200 |
100x200 |
60 |
16 |
12 |
6 |
2x0.37 |
540 |
2640x1610x1455 |
90 |
|
TQLZ150x100 |
150x100 |
50 |
12 |
6 |
6 |
2x0.37 |
540 |
1640x2160x1455 |
80 |
|
TQLZ150x150 |
150x150 |
75 |
16 |
9 |
6 |
2x0.75 |
630 |
2140x2160x1455 |
110 |
|
TQLZ150x200 |
150x200 |
100 |
24 |
12 |
6 |
2x0.75 |
650 |
2640x2160x1455 |
135 |
|
TQLZ180x200 |
180x200 |
120 |
28 |
12 |
6 |
2x1.1 |
1000 |
2740x2510x1980 |
160 |
Features of TQLZ Vibration Screen Pre-Cleaning Machine
Modular drawer-type screens, easy to replace.
With grain flow distribution structure. Flow control system can be added.
* Large screen holes below for garlic slices cleaning
Different models of vibration screen cleaners and Mobile vibro cleaners with cyclone dust collector or aspirator.
Our main products are:
- Seed cleaning machines
Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.
- Flour mill complete plants: 40~1000 t/d.
- Dryer and grain handling
Seed cleaning machines:
5XZ Gravity Table 5X Air Screen Seed Cleaner TQSF De-stoner
HZZD Large Rotary Cleaner TQLZ Vibration Cleaner 5XW Indented Cylinder
