Quick Details
-
Warranty:
-
25 years, 25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS600M-96
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1956*1310*45 mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, TUV/IEC61215/IEC61730/CE/PID/ISO
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
MC4
-
Color:
-
Blue & Black
-
Front Glass:
-
High Transparency Temperd Glass
-
Cable:
-
900mm PV Cable
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
22%
-
Warranty:
-
25 years, 25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS600M-96
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1956*1310*45 mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, TUV/IEC61215/IEC61730/CE/PID/ISO
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
MC4
-
Color:
-
Blue & Black
-
Front Glass:
-
High Transparency Temperd Glass
-
Cable:
-
900mm PV Cable
Product Description

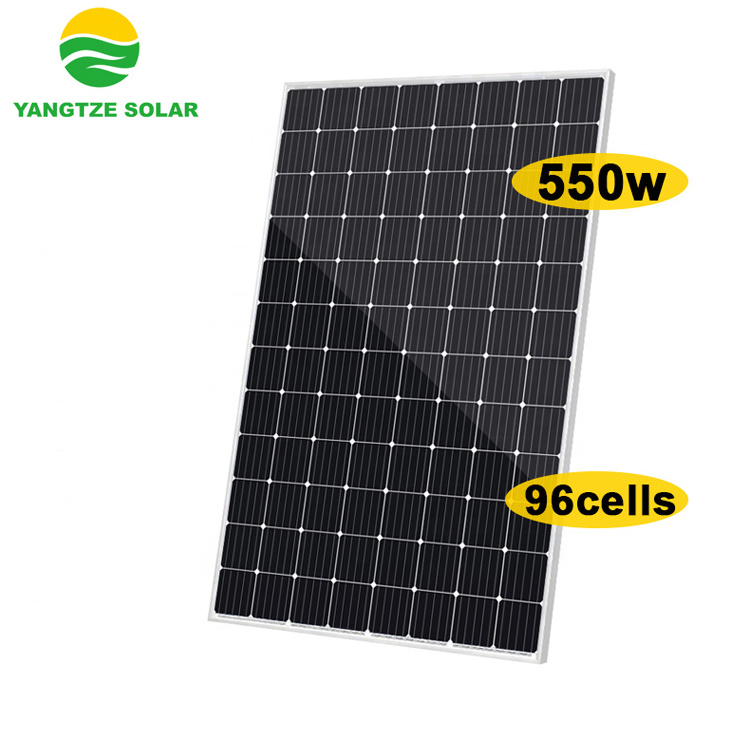

Yangtze top 1 hot sale 96cells mono 460w 500w 510w 520w 530w 540w 550w solar panel popular
| Model | YS500M-96 | YS510M-96 | YS520M-96 | YS530M-96 | YS540M-96 | YS550M-96 |
| Rated Maximum Power at STC | 500W | 510W | 520W | 530W | 540W | 550W |
| Maximum Power Voltage (Vmp) | 48.40V | 48.58V | 48.76V | 48.94V | 49.12V | 49.3V |
| Maximum Power Current (Imp) | 10.33A | 10.51A | 10.69A | 10.88A | 11.06A | 11.24A |
| Open Circuit Voltage ( Voc) | 58.08V | 58.30V | 58.52V | 58.73V | 58.95V | 59.16V |
| Short Circuit Current (Isc) | 10.54A | 10.72A | 10.90A | 11.09A | 11.28A | 11.46A |
| Module Efficiency | 19.51% | 19.90% | 20.35% | 20.68% | 21.07% | 21.46% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | ||||||
| Mechanical Parameters | ||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | |||||
| No. of Cells | 96 (8x12) | |||||
| Dimension | 1956x1310x45mm | |||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||
| Junction Box | IP65&IP67 Rated | |||||
| Output Cable | Section Size: 4mm² , Length: 900mm | |||||
| Frame | Anodized Aluminum Alloy | |||||
| No. of Bypass Diodes | 6 | |||||
| Connector | MC4 Compatible | |||||
| Working Conditions | ||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 1000V(U | |||||
| Operating Temperature | -40°c~+85°c | |||||
| Maximum Series Fuse | 15A | |||||
| NOCT | 45±2°c | |||||
| Application Class | Class A | |||||
| Temperature Coefficient | ||||||
| Temperature Coefficient of Pmax | -0.39%/°c | |||||
| Temperature Coefficient of Voc | -0.29%/°c | |||||
| Temperature Coefficient of Isc | +0.05%/°c | |||||
