Name: Adjusting plate
Brand: Zeyi
Original: China

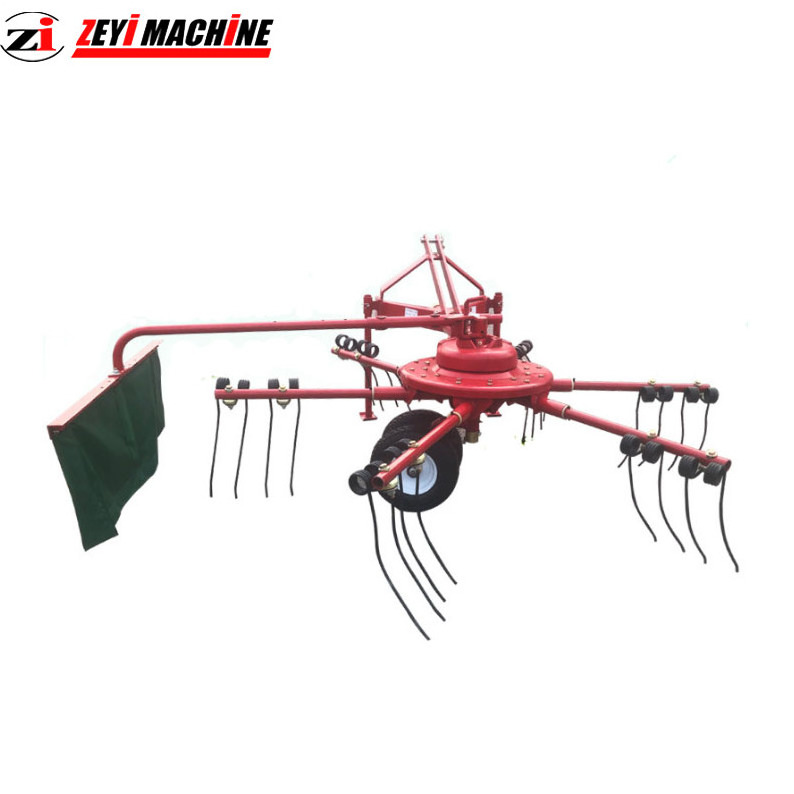

By adjust this,mini garden rake could work as a tedder or raker
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZEYI
-
Color:
-
Red/Green
-
Usage:
-
Quick Removal Collect Grass Leaves
-
Tedding width(mm):
-
2500/3500/4000
-
MOQ:
-
1set(sample)
-
Power:
-
PTO
-
Material:
-
steel
-
Certification:
-
ISO 9001
-
Weight(kg):
-
160/260/350
Quick Details
-
Weight (KG):
-
350
-
Type:
-
Other farm agriculture machine, Garden Folding Rake
-
Use:
-
hay rake
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZEYI
-
Color:
-
Red/Green
-
Usage:
-
Quick Removal Collect Grass Leaves
-
Tedding width(mm):
-
2500/3500/4000
-
MOQ:
-
1set(sample)
-
Power:
-
PTO
-
Material:
-
steel
-
Certification:
-
ISO 9001
-
Weight(kg):
-
160/260/350
Products Description
|
Model
|
HT2500
|
HT3500
|
HT4000
|
|
Tedding width
|
2500
|
3500
|
4000
|
|
Dimension
|
2100x2500x950mm
|
3100*3500*1000mm
|
4010x3539x1196mm
|
|
Weight
|
160kg
|
260kg
|
350kg
|
|
Tines of per rotors
|
4
|
8
|
8
|
|
No of rotors
|
6
|
8
|
8
|
|
Working speed
|
4-8km/h
|
4-8km/h
|
4-8km/h
|
|
Matched power
|
18-50hp
|
20-80hp
|
35-80hp
|
|
PTO RPM
|
540r/m
|
540r/m
|
540r/m
|
Mini hay rake Parts
Main features:
1).Strong, rugged frame provides years of dependable performance.
2).Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling.
3).Torque limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable.
4).Three wheel-height position let you adjust for different crops, conditions and operations.
5).one machine, three functions, tedding, raking, and reversing multi-functions
