Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Standard
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Enshine
-
Model Number:
-
Enshine3500A
-
Warranty:
-
12 Months
-
Product name:
-
Retractable Spray Booth
-
Color:
-
According to customer requirements
-
Frame:
-
Galvanized Iron Tube
-
Filter system:
-
Environmental 3 Filter Process
-
Environmental certificate:
-
CE /ISO Certification
-
Application:
-
Industrial spray painting work/as your garage
-
MOQ:
-
1 Set
-
Lighting System:
-
LED Light
-
Control System:
-
Electric Control Box
-
Customize:
-
Logo
Quick Details
-
Power:
-
15KW
-
External Size:
-
13000*5500*5500mm(L*W*H) or custom
-
Internal Size:
-
12000*5000*5000mm(L*W*H) or custom
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Standard
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Enshine
-
Model Number:
-
Enshine3500A
-
Warranty:
-
12 Months
-
Product name:
-
Retractable Spray Booth
-
Color:
-
According to customer requirements
-
Frame:
-
Galvanized Iron Tube
-
Filter system:
-
Environmental 3 Filter Process
-
Environmental certificate:
-
CE /ISO Certification
-
Application:
-
Industrial spray painting work/as your garage
-
MOQ:
-
1 Set
-
Lighting System:
-
LED Light
-
Control System:
-
Electric Control Box
-
Customize:
-
Logo
Product Description

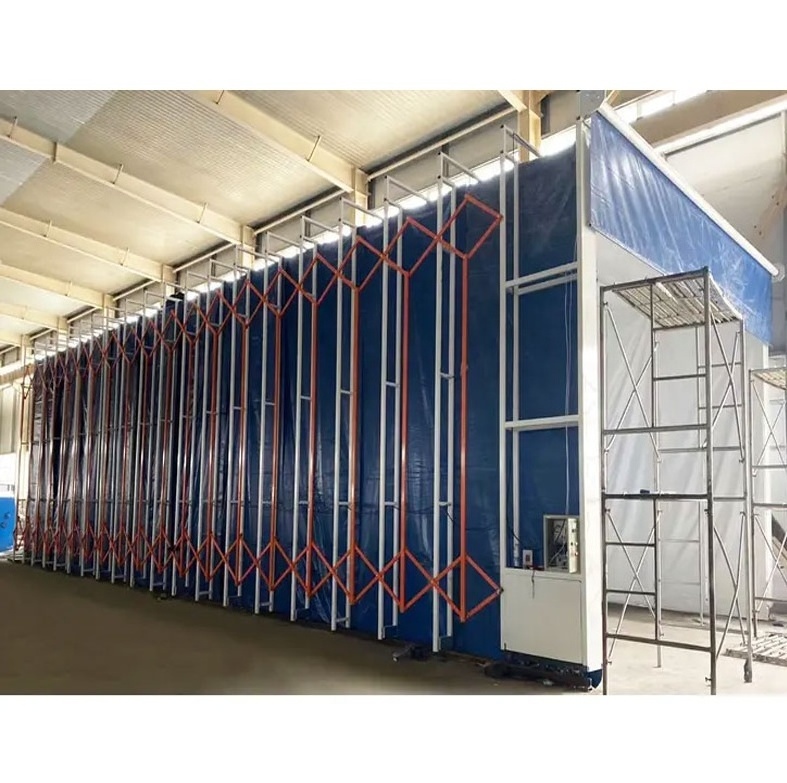

Retractable spray booth is a kind of environmentally-friendly spray booth that can be automatically opened to form a closed or semi-closed environment when it is used.
It is specially designed to solve the difficult problem of moving and transporting large workpieces.
It can be adjusted according to the size of use and make full use of the production site and operation space!
It greatly simplifies the process of continuously lifting large and bulky workpieces to and from the crane by means of cranes; no special transportation tools are required; the unfolding length can be anywhere.
Telescopic spray booth is a practical product specially developed to solve the difficulty of moving large workpieces.
The whole frame transmission structure, each group of frames are sealed with flame-retardant PVC cloth, which is quick to install and beautiful in appearance.
The production process simplifies the process of continuously rewinding large workpieces by workshop cranes.
During the work, the rails laid along the ground are telescopically moved forward and backward. They are driven by two sides and operated in interlocking mode. The safety limit is controlled before and after, and the mechanical operation is safe and stable.
There are explosion-proof lights in the work area to meet the lighting needs in the lighting.
Various types of non-standard sizes can be customized according to the actual production needs of customers.
Working Principle
Working Procedure:
The telescopic front chamber shrinks and closes → the workpiece moves in position → the telescopic front chamber expands and covers the workpiece → the workpiece is painted → the telescopic front chamber shrinks and closes → the workpiece moves out of the painting site.
The telescopic front chamber shrinks and closes → the workpiece moves in position → the telescopic front chamber expands and covers the workpiece → the workpiece is painted → the telescopic front chamber shrinks and closes → the workpiece moves out of the painting site.
