Quick Details
-
Voltage:
-
380v
-
Power:
-
2kw
-
Dimension(L*W*H):
-
1760*1100*1930 mm
-
Weight (KG):
-
493
-
Applicable Industries:
-
Chemical, Food, Ceramics
-
After-sales Service Provided:
-
Online support
-
Body Material:
-
SUS304 Stainless Steel
-
Jet Nozzle:
-
SUS 316L Stainless Steel
-
Capacity:
-
1000ml/batch
-
Spray Freezing Temperature:
-
<-15℃
-
Ultimate Vacuum Pressure:
-
<20pPa
-
Spray Pressure:
-
2-5BAR
-
Air Compressor Gas Production Rate:
-
4.2m3/h
-
Cold Air Volumn:
-
5.5m3/h
-
Certification:
-
CE Certificate
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
pilotech
-
Voltage:
-
380v
-
Power:
-
2kw
-
Dimension(L*W*H):
-
1760*1100*1930 mm
-
Weight (KG):
-
493
-
Applicable Industries:
-
Chemical, Food, Ceramics
-
After-sales Service Provided:
-
Online support
-
Body Material:
-
SUS304 Stainless Steel
-
Jet Nozzle:
-
SUS 316L Stainless Steel
-
Capacity:
-
1000ml/batch
-
Spray Freezing Temperature:
-
<-15℃
-
Ultimate Vacuum Pressure:
-
<20pPa
-
Spray Pressure:
-
2-5BAR
-
Air Compressor Gas Production Rate:
-
4.2m3/h
-
Cold Air Volumn:
-
5.5m3/h
-
Certification:
-
CE Certificate
PRODUCT DETAIL
Product Description

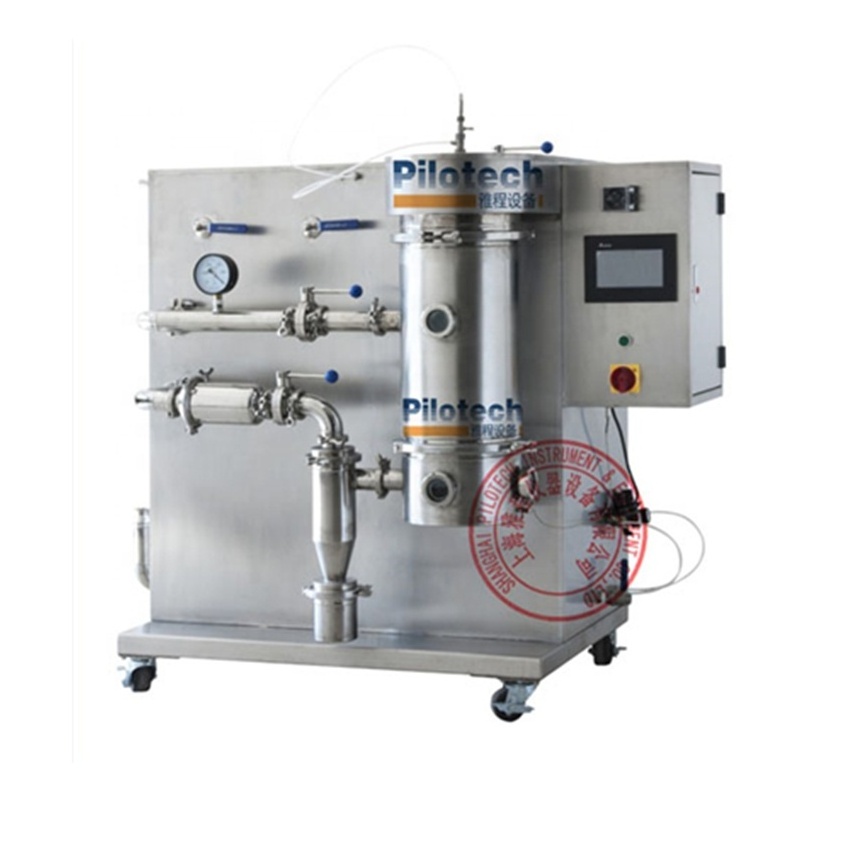

Developed by Shanghai Pilotech Instrument & Equipment Co., Ltd., YC-3000 laboratory spray freeze dryer combines spray dryer and vacuum lyophilization techniques.
Application scope
YC-3000 laboratory Spray freezing dryer can be used for low-temperature dehydration of heat-sensitive, viscous, active and high sugar materials, such as Chinese herbal and nature product extract, dairy product, biological agent, enzyme, fruit original juice, and polymer materials.
PRODUCT PARAMETERS
Features
1. With combination of spray dehydration and vacuum lyophilization techniques, YC-3000 laboratory Spray freezing dryer works with shorter drying time than traditional vacuum freeze-drying. The dried solid powdered materials basically retain their original biological and chemical properties for easy and long-term preservation and when added water, materials return to the state of pre-freeze-drying.
2. The present equipment adopts a cooling system of air-cooled condensing closed compressor with rapid cooling performance, low freezing temperature and strong moisture absorption ability. Temperature and vacuity are displayed in a digital, accurate, and direct manner.
3. In dehydration, the present equipment heats and sublimates natural air to maintain the security of samples.
4. The present equipment provides convenience with a vacuum pump attaching plug on the body, no need for any additional power supply.
5. The convenient and reliable vacuum connection adopts international standard clamp.
6. Stable performance, easy operation and low noise.
7. Compared with traditional freeze dryer: rapid freeze-drying of wall sticking and organism containing liquid materials (juice, traditional Chinese herb extract, etc). The dried granulated product enjoys fine fluidity and particle diameter is adjustable within a certain range.
Technical parameters
1) Color LCD touch screen parameters displays drying chamber temperature/peristaltic pump rotating speed/fan frequency/stylet frequency/drying chamber pressure.
2) Capacity: 1000ml/batch (YC-3000B 2000ml/batch YC-3000C 5000ml/batch )
3) Spray freezing temperature: <-15℃
4) Cold trap temperature: ≤-60℃
5) Vacuum pump power: 2KW
6) Ultimate vacuum pressure: <20Pa (idle)
7) Spray pressure: 2-5BAR (adjustable)
8) Air compressor gas production rate: 4.2M 3 /h
9) Cold air volume: 5.5M 3 /min
|
Sr.no |
Parameter |
Pilotech YC- 3000 |
|
1 |
Power |
12K W |
|
2 |
Voltage |
38 0V |
|
3 |
C apacity |
1000/batch |
|
4 |
Spray freezing temperature |
<-30 ℃ |
|
5 |
Cold trap temperature |
≤-60 ℃ |
|
6 |
Vacuum pump power |
2KW |
|
7 |
Max. vacuum pressure |
<20Pa |
|
8 |
Spray pressure |
2-5Bar (adjustable) |
|
9 |
Compressed air |
4.2m³/h |
|
1 0 |
Nozzle type |
Two fluid nozzle |
|
1 1 |
Nozzle jet |
0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available) |
|
1 2 |
Body material |
SUS-304 Stainless steel |
|
1 3 |
Operation mode |
Automatic/Manual |
|
1 4 |
Vacuum pump plug |
yes |
|
1 5 |
Vacuum connection |
Standard clamp |
|
1 6 |
Seal of cyclone/cylinder |
Silicone |
|
17 |
Vacuum degree display |
Digital |
|
18 |
Dimensions |
160 0* 108 0*1 75 0 mm |
|
19 |
Weight |
30 0KG |
|
2 0 |
Display |
7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
|
2 1 |
Sample safety |
Low temperature & vacuum |
|
2 2 |
Particle size |
1~100μm |
