Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ALLRAISE
-
Model Number:
-
OR-4502
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
6000*1400*1600mm
-
Weight:
-
1000 KG, 1000kg
-
Marketing Type:
-
Hot Product
-
Product name:
-
Plastic Film Bags Making Machine T Shirt Plastic Bag Making Machine
-
Model:
-
OR-600
-
Max.bag length:
-
20-450mm
-
Speed:
-
60-100pcs/min
-
Main motor:
-
1.5kw
-
Total power:
-
5kw
-
Dimension:
-
6000*1400*1600mm
-
Package:
-
wooden case
-
Brand:
-
ALLRAISE
Quick Details
-
Machine Type:
-
plastic bag making machine
-
Bag Type:
-
plastic bag
-
Material:
-
Plastic
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ALLRAISE
-
Model Number:
-
OR-4502
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
6000*1400*1600mm
-
Weight:
-
1000 KG, 1000kg
-
Marketing Type:
-
Hot Product
-
Product name:
-
Plastic Film Bags Making Machine T Shirt Plastic Bag Making Machine
-
Model:
-
OR-600
-
Max.bag length:
-
20-450mm
-
Speed:
-
60-100pcs/min
-
Main motor:
-
1.5kw
-
Total power:
-
5kw
-
Dimension:
-
6000*1400*1600mm
-
Package:
-
wooden case
-
Brand:
-
ALLRAISE
Products Description

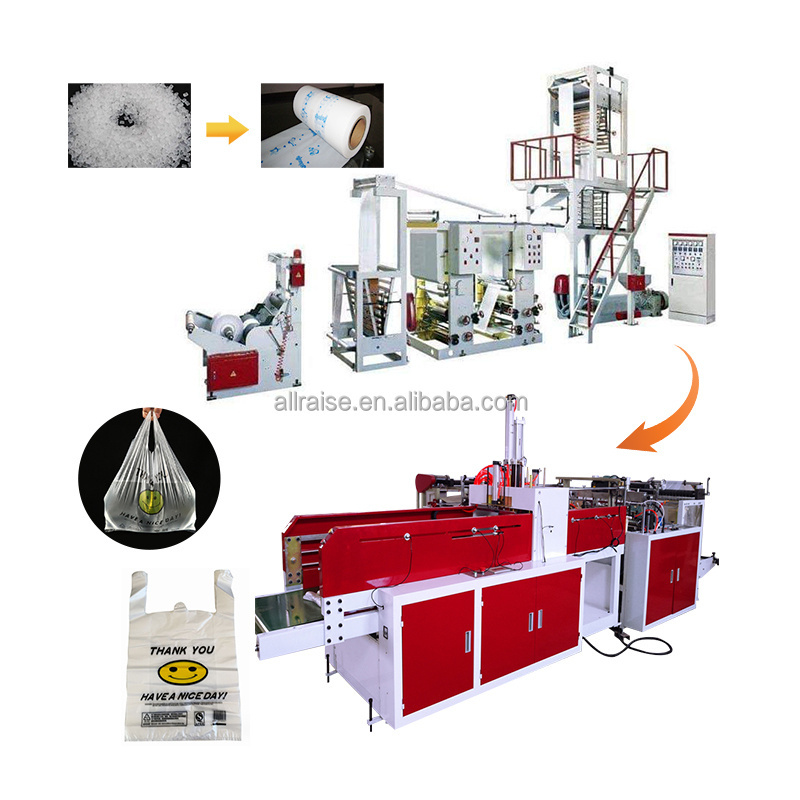

LDPE HDPE Film Blowing and Printing Production Line Film Vest Bags Sealing Cutting Printer T Shirt Plastic Bag Making Machine
Factory Price Plastic Film Blowing Machine Single Screw PE Plastic Film Blowing Extruder Machine with Printing Unit
Factory Price Plastic Film Blowing Machine Single Screw PE Plastic Film Blowing Extruder Machine with Printing Unit
is suitable for blowing plastic films such as low-density polyethylene (LDPE) and high-density polyethylene (HDPE), which are widely used in civil and industrial packaging such as food, clothing, garbage bags, and vest bags.
|
Product Name
|
Plastic PE HDPE LDPE Blown Film Extrusion Production Film Blowing Machine
|
|
Model
|
OR-600
|
|
Number of printing colors
|
2 colors
|
|
Material width
|
600mm
|
|
Printing width
|
550mm
|
|
Mechanical speed
|
90m/min
|
|
Printing speed
|
10-50m/min
|
|
Printing plate diameter
|
120mm-220mm
|
|
Mounting method
|
with shaft
|
|
Extrusion capacity
|
40kg
|
|
Printing plate width
|
620mm
|
|
Screw diameter
|
50mm
|
|
Film folding diameter
|
200-600mm
|
|
Thickness of film on one side
|
0.06-0.10mm
|
|
Applicable raw materials
|
LDPE, HDPE,LLDPE
|
|
Aspect ratio
|
28:1
|
|
Voltage
|
380V 50Hz
|
|
Size
|
5200×2300×2100(mm)
|
|
Product name
|
Factory Computer Single Line Full Automatic Printed T shirt Plastic Bag Making Machine
|
|
Max bag width
|
50-300mm
|
|
Max bag length
|
100-1000mm
|
|
Thickness of material
|
0.006-0.12
|
|
Speed
|
240-260pcs/min
|
|
Size
|
6*1.3*1.6m
|
|
Weight
|
1500kg
|
PE Plastic Film Blowing Extruder Machine Features
1. It is suitable for blowing plastic films such as low-density polyethylene (LDPE) and high-density polyethylene (HDPE), which are widely used in civil and industrial packaging such as food, clothing, garbage bags, and vest bags.
2.It adopts computer to control, inverter motor to adjust the speed, and it has many advantages of top position stopping, steady function, accurate positioning etc.
2.It adopts computer to control, inverter motor to adjust the speed, and it has many advantages of top position stopping, steady function, accurate positioning etc.
3.It has 4 automatic photo electric feeding system, and one tracking photocell. automatic temperature control system, electric static eliminating system, automatic counting system and alarm system.
4.It is hot sealing and cold cutting. More strong sealing and choose Double servo motor to control accurate
