Quick Details
-
Product name:
-

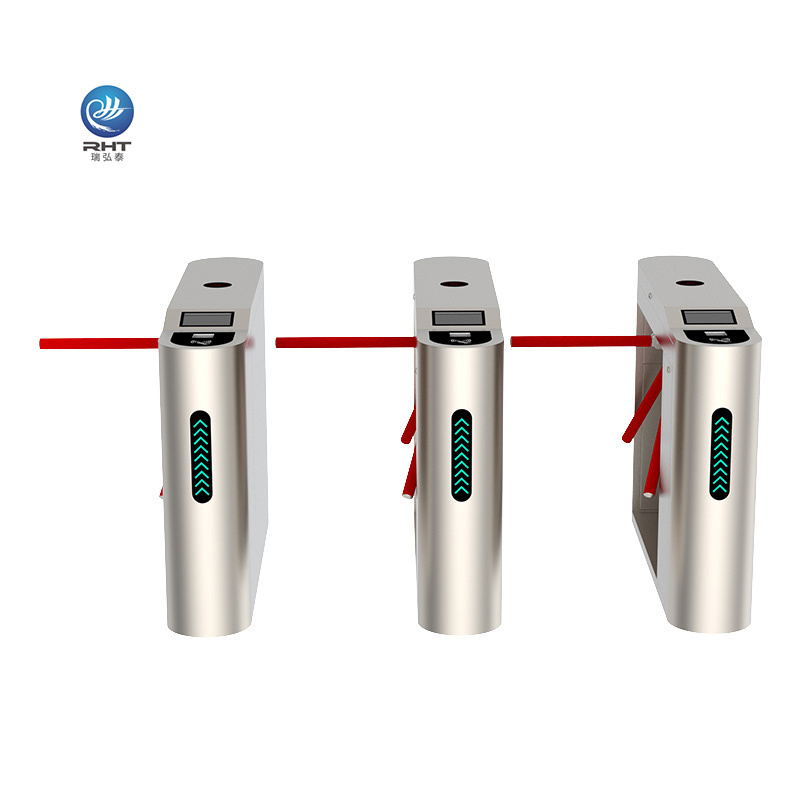

tripod turnstile rfid
-
Application:
-
Security Access Control Management
-
Access control:
-
Face recognition, IC/ID Card, QRcode, Barcode, Fingerprint,etc
-
Material:
-
304 Stainless Steel
-
Type:
-
Dual-core Turnstile
-
PASS SPEED:
-
30-45Persons/min
-
Working environment:
-
Temperature: -10 ~ +60
-
Power Input:
-
AC100~240V
-
Communication Interface:
-
RS485/IP/TCP
-
Passage Direction:
-
bi-drectional/uni-directional
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RHT
-
Model Number:
-
S11-Y
-
Product name:
-
tripod turnstile rfid
-
Application:
-
Security Access Control Management
-
Access control:
-
Face recognition, IC/ID Card, QRcode, Barcode, Fingerprint,etc
-
Material:
-
304 Stainless Steel
-
Type:
-
Dual-core Turnstile
-
PASS SPEED:
-
30-45Persons/min
-
Working environment:
-
Temperature: -10 ~ +60
-
Power Input:
-
AC100~240V
-
Communication Interface:
-
RS485/IP/TCP
-
Passage Direction:
-
bi-drectional/uni-directional
Product Description
Extended Functions
Product Paramenters
|
Product Name
|
Swing Barrier Gate
|
|
|
Model Number
|
S11-Y
|
|
|
Specs
|
L1200*W280*H980mm
|
|
|
Function
|
4 pairs of infrared regularlly
|
|
|
Power Supply
|
AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz
|
|
|
Motor
|
DC24V, brushless motor
|
|
|
Temperature
|
- 20°C ~ 60°C
|
|
|
Humidity
|
<95%
|
|
|
Passage Width
|
550~750mm
|
|
|
Passing Speed
|
40 persons/min
|
|
|
Arm Open/Close Time
|
0.2s
|
|
|
Communication Interface
|
RS232/RS485 (Distance: <=1200m)
|
|
|
Arm Turning
|
bi-direction/uni-direction optional
|
|
|
Note: The barrier gate is divided into single core and dual core, which can be freely combined into single channel, dual channel&multi-channel to meet the requirements of various widths
|
|
|
