The
folding solar panels
is waterproof, anti-corrosion, dirt-resistant, and easy to clean, and can easily cope with various environments.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Panel Efficiency:
-
21.3%
-
Keyword:
-
foldable solar panel
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
4.96A
-
Open Circuit Voltage Voc:
-
24.3V
-
Short Circuit Current lsc:
-
5.25A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
4.8±0.1kg
-
Folded size:
-
610*555*45mm
-
Output Cable:
-
1500mm
-
Size:
-
1220*555*25mm
-
Certificate:
-
CE ROHS ISO IEC
-
Warranty:
-
1years
Quick Details
-
Brand Name:
-
DHC
-
Model Number:
-
ESFA100
-
Place of Origin:
-
Jiangsu, China
-
Panel Efficiency:
-
21.3%
-
Keyword:
-
foldable solar panel
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
4.96A
-
Open Circuit Voltage Voc:
-
24.3V
-
Short Circuit Current lsc:
-
5.25A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
4.8±0.1kg
-
Folded size:
-
610*555*45mm
-
Output Cable:
-
1500mm
-
Size:
-
1220*555*25mm
-
Certificate:
-
CE ROHS ISO IEC
-
Warranty:
-
1years
Product Description
CE waterproof 200w folding photovoltaic panel portable ETFE foldable solar panel 100w for camping outdoor

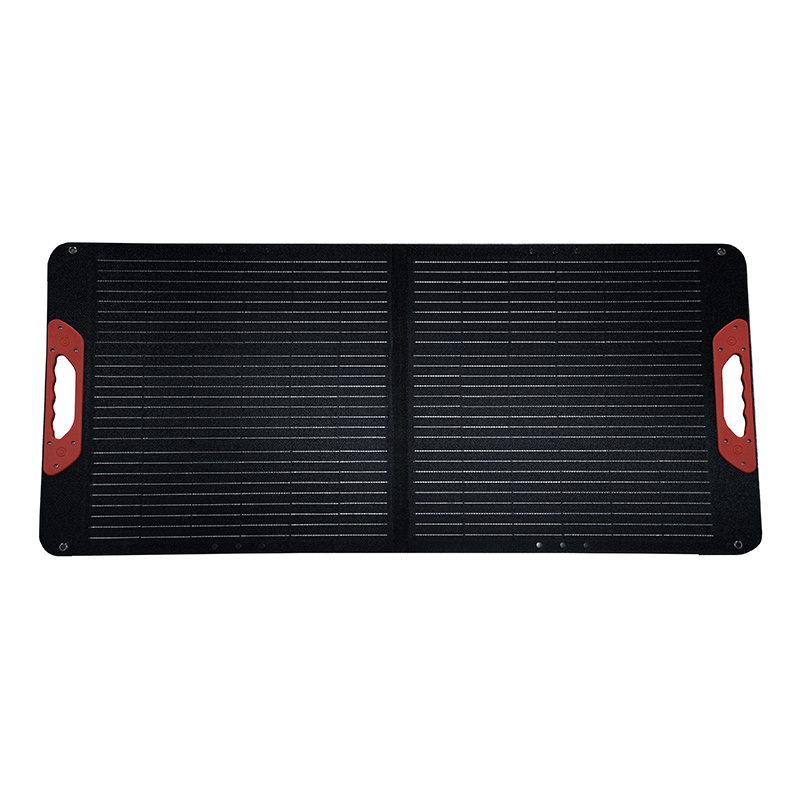

This is a
foldable solar panel
specially designed for outdoor camp and travel. The weight of a single panel is about 4.8kg. It can be lifted with one hand and is very convenient to carry.
The efficiency of this
folding solar panels
is as high as 21.3%, realizing electricity when there is light, providing guarantee for electricity use in outdoor activities.
Specification
|
ELECTRICAL PARAMETERS STC
|
|
|
||
|
Model
|
ESFA100
|
ESFA200
|
||
|
Max. Power Output Pmax
|
100W
|
200W
|
||
|
Power Tolerance
|
0~+3％
|
0~+3％
|
||
|
Max. Power Voltage Vmap
|
20.16V
|
20.16V
|
||
|
Max. Power Current lmp
|
4.96A
|
9.92A
|
||
|
Open Circuit Voltage Voc
|
24.3V
|
24.3V
|
||
|
Short Circuit Current lsc
|
5.25A
|
10.5A
|
||
|
Module Eficiency
|
21.3%
|
21.3%
|
||
|
*STC(Standard Test Condition): Irradiance 1000W/㎡,Cell Temperature 25℃,Air Mass 1.5.
|
|
|
||
|
MECHANICAL PARAMETERS
|
|
|
||
|
Cell Type
|
Mono，166*83cm
|
Mono，166*83cm
|
||
|
Cell Arrangement
|
36psc（3*6*2）
|
72psc（3*6*4）
|
||
|
Open size
|
1220*555*25mm
|
2365*535*25mm
|
||
|
Folded size
|
610*555*45mm
|
625*535*50mm
|
||
|
Weight
|
4.8±0.1kg
|
8.6±0.1kg
|
||
|
Output Cable
|
1500mm
|
1500mm
|
||
|
Output Connection
|
Anderson/DC7909
|
Anderson/DC7909
|
||
CE waterproof 200w folding photovoltaic panel portable ETFE foldable solar panel 100w for camping outdoor
1. This
foldable solar panel
uses monocrystalline silicon solar cells with higher conversion efficiency.
2. It has a foldable and portable design, which is easy to carry and can be carried with one hand.
3.
The
folding solar panels
can be used with an outdoor power supply to convert solar energy into electrical energy and store it for use at night.
Details Images
CE waterproof 200w folding photovoltaic panel portable ETFE foldable solar panel 100w for camping outdoor
This foldable
portable solar panel
is made of highly translucent, strong, and aging-resistant materials and is produced with high-quality integrated technology.
Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit! To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
