Quick Details
-
Voltage:
-
380V/220V,50/60HZ
-
Dimension(L*W*H):
-
2800*1300*1800mm
-
Weight:
-
950 KG
-
Product name:
-
Automatic Magnet & Metal Sheet Pasting Machine
-
Application:
-
Jewel box , rigid box ,gift box ,Foldable Box ,shoes box,wine box
-
Function:
-
drilling and pasting Magnet & Metal Sheet
-
Power Supply:
-
380V/220V/50HZ
-
Speed:
-
1500-2500 pcs/hour
-
Cardboard Size(max):
-
1000*500mm
-
Cardboard Size(min):
-
120*60mm
-
Air Pressure:
-
0.5-0.8MPA
-
Machine Dimensions(L*W*H):
-
2800*1300*1800mm
-
Machine Weight:
-
950KG
Quick Details
-
Type:
-
Automatic Magnet & Metal Sheet Pasting Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINHANG
-
Voltage:
-
380V/220V,50/60HZ
-
Dimension(L*W*H):
-
2800*1300*1800mm
-
Weight:
-
950 KG
-
Product name:
-
Automatic Magnet & Metal Sheet Pasting Machine
-
Application:
-
Jewel box , rigid box ,gift box ,Foldable Box ,shoes box,wine box
-
Function:
-
drilling and pasting Magnet & Metal Sheet
-
Power Supply:
-
380V/220V/50HZ
-
Speed:
-
1500-2500 pcs/hour
-
Cardboard Size(max):
-
1000*500mm
-
Cardboard Size(min):
-
120*60mm
-
Air Pressure:
-
0.5-0.8MPA
-
Machine Dimensions(L*W*H):
-
2800*1300*1800mm
-
Machine Weight:
-
950KG
Products Description

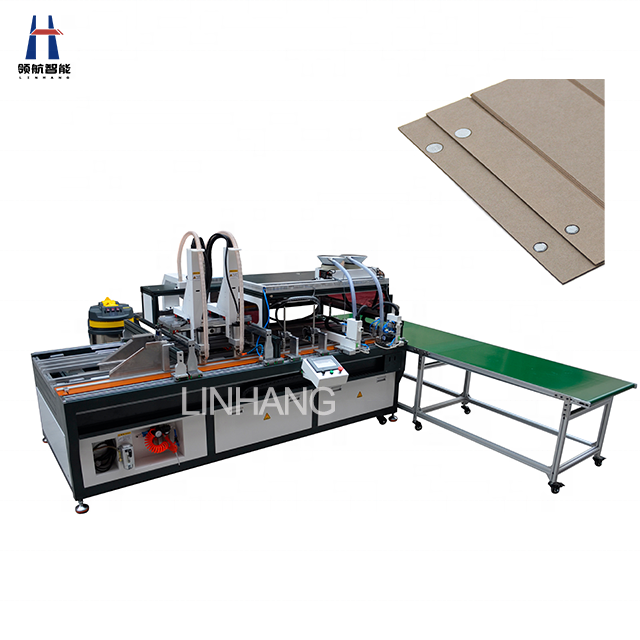

LH-1000M Automatic Box Magnet Pasting Machine
Machine Description:
Automatic magnet sticking machine is a set of automatic hole Drilling, automatic spray glue, sticking magnet, iron sheet (square hole and round hole). It suitable for book box in the world box box fie gray board, cover board hole sticking magnet; Gray plate, shell drilling hole stick metal sheet. One person operation machine, save labor, high efficiency. The machine adopts PLC control, servo drive, photoelectric detection technology, automatic feeding, Drilling , waste cleaning, gluing , insert magnet and metal sheet.
Automatic magnet sticking machine is a set of automatic hole Drilling, automatic spray glue, sticking magnet, iron sheet (square hole and round hole). It suitable for book box in the world box box fie gray board, cover board hole sticking magnet; Gray plate, shell drilling hole stick metal sheet. One person operation machine, save labor, high efficiency. The machine adopts PLC control, servo drive, photoelectric detection technology, automatic feeding, Drilling , waste cleaning, gluing , insert magnet and metal sheet.
Book Box
Gift Box
Foldable Box
|
Item
|
Model
|
LH-1000M
|
|
1
|
Voltage
|
380V/220V,50/60HZ
|
|
2
|
Power
|
1.5 KW
|
|
3
|
Speed
|
1500-2500 pcs/hour
|
|
4
|
Max board size
|
1000*500mm
|
|
5
|
Min board size
|
120*60mm
|
|
6
|
Cardboard Thickness
|
1-8mm
|
|
7
|
Max Distance Board edge to magnet
|
120mm
|
|
8
|
Iron sheet diameter
|
∅ 12-∅ 18mm
|
|
9
|
Magnet diameter
|
∅ 8-∅ 18mm
|
|
10
|
Glue capacity
|
2 L
|
|
11
|
Magnet distance
|
≥50mm
|
|
12
|
Machine Dimension
|
2800*1300*1800mm
|
|
13
|
Machine Weight
|
950KG
|
