Quick Details
-
Warranty:
-
Guaranteed
-
Product name:
-

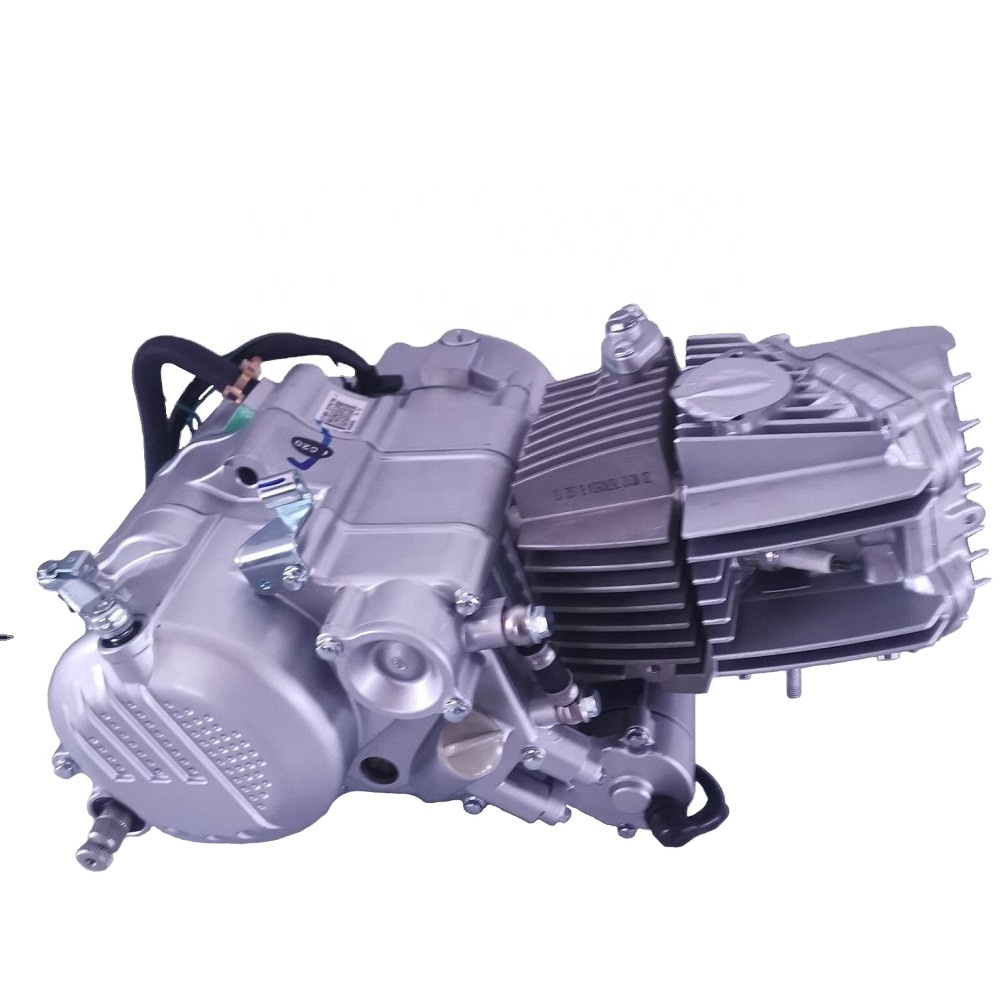

Chinese Motorcycle Engines
-
Model:
-
212cc, CRF150F
-
Engine Type:
-
4-stroke
-
Color:
-
Grey/silver/black
-
Start method:
-
Electric /kick Start 212cc Engine
-
Packing:
-
Carton
-
Max Torque(N.m/r/min):
-
16.5/ 6500rpm
-
Compression ratio:
-
12.2:1
-
Net Weight:
-
24 kgs
-
Max power(kw/r/min):
-
13.00kw/8000rpm
Quick Details
-
Displacement (ml):
-
212cc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Flying Dream
-
Warranty:
-
Guaranteed
-
Product name:
-
Chinese Motorcycle Engines
-
Model:
-
212cc, CRF150F
-
Engine Type:
-
4-stroke
-
Color:
-
Grey/silver/black
-
Start method:
-
Electric /kick Start 212cc Engine
-
Packing:
-
Carton
-
Max Torque(N.m/r/min):
-
16.5/ 6500rpm
-
Compression ratio:
-
12.2:1
-
Net Weight:
-
24 kgs
-
Max power(kw/r/min):
-
13.00kw/8000rpm
|
Main technical parameters
|
|
|
|
Engine type
|
Single cylinder,4-stroke,oil-cooling, camshaft upward tilting(10°)
|
|
|
Displacement(ml)
|
212.11
|
|
|
Dimension(mm*mm*mm)
|
460×325×230
|
|
|
Net weight(kg)
|
24
|
|
|
Max power(kw/r/min)
|
13.00kw/8000rpm
|
|
|
Max Torque(N.m/r/min)
|
16.5/ 6500rpm
|
|
|
Compression ratio
|
12.2:1
|
|
|
Bore and stroke(mm/mm)
|
66x62
|
|
|
Ignition method
|
CDI
|
|
|
Lubrication method
|
Pressure and Splash
|
|
|
Min fuel consumption(g/kw.h)
|
≤367
|
|
|
Starting method
|
electric/kicker starting
|
|
|
Clutch method
|
Manual Wet Multi-Plate
|
|
|
Gear shift method
|
Constant mesh, two stage transmission ,5-speed Gearshift
|
|
|
Main performance characteristics
|
|
|
|
Lubricant Cooling
|
By using oil cooling technology, the heat load during engine operation is reduced and the service life of engine is prolonged.
|
|
|
Arbitrary gear start
|
Simple operation, can start at any gear, meet the requirements of rapid start.
|
|
|
Forged piston, piston ring
|
Forging T-piston, micro-arc oxidation of piston head and printing molybdenum disulfide on skirt improve heat resistance and wear resistance of piston; 0.8 thin ring reduces inertia and wear of piston up and down motion, and improves power output and service life of engine.
|
|
|
Strengthened clutch
|
Adopting 6-Piece reinforced clutch to meet the requirement of large torque transmission.
|
|
|
Design of spray hole in box
|
Special spray hole jet oil is set in the box to cool and lubricate the cylinder piston, which can effectively control the temperature of the piston and improve the service life of the engine.
|
|
|
Pressure relief valve
|
The structure of pressure reducing valve is adopted to reduce the starting moment, start easily and improve the service life of all parts of the starting mechanism.
|
|
|
Five-gear transmission
|
Rational distribution of transmission ratio of each gear by adopting five-speed transmission.
|
|
|
Imported bearings
|
Imported TPI bearings are used for box bearings to improve engine reliability.
|
|
|
Quality Research and Development
|
Designed independently by ourselves, Zongshen collaborative testing and processing, reliable quality.
|
|
