Too much protrusion of the flat fork will affectthe installation, you can take a photo and sendit to the customer service for confirmation
(lf it protrudes, you need to add a gasket)
- Product Details
- {{item.text}}

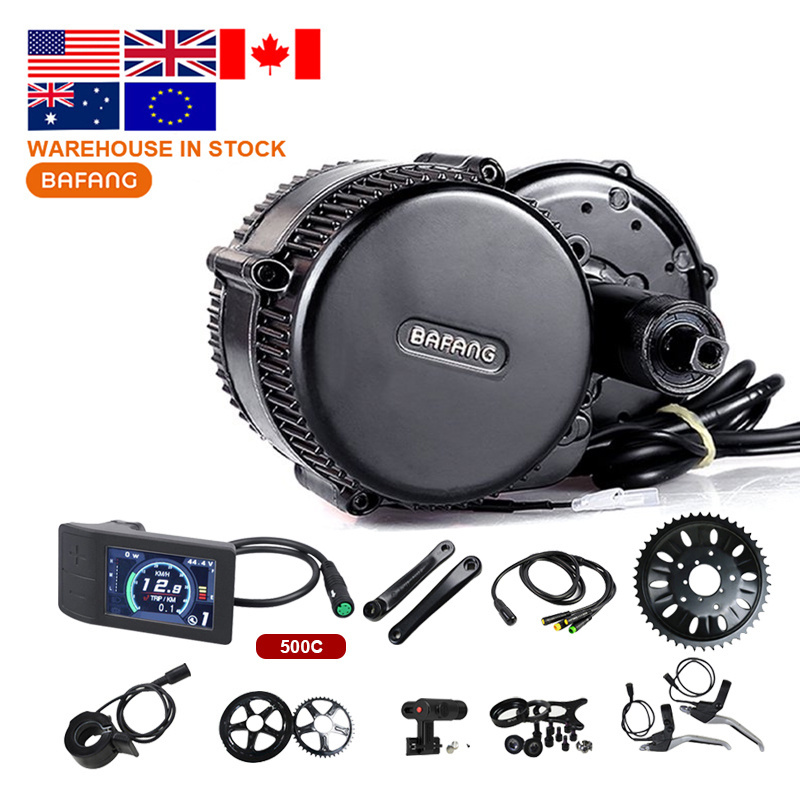

Quick Details
-
Brand Name:
-
BAFANG
-
Model Number:
-
G340
-
Motor Type:
-
MID MOTOR
-
Motor position:
-
MID MOTOR
-
Controller:
-
26A Smart Controller
-
PAS Sensor:
-
12pcs maganets, Left integrated
-
Brake levers:
-
Aluminum w/Cut-off cables
-
DCV:
-
36/48v
-
Color:
-
Black
-
Torque:
-
80-120 Nm
-
Booster Sensor:
-
Speed type
Quick Details
-
Battery Capacity:
-
15 Ah
-
Wheel Size:
-
20", 22", 24", 26", 28"
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BAFANG
-
Model Number:
-
G340
-
Motor Type:
-
MID MOTOR
-
Motor position:
-
MID MOTOR
-
Controller:
-
26A Smart Controller
-
PAS Sensor:
-
12pcs maganets, Left integrated
-
Brake levers:
-
Aluminum w/Cut-off cables
-
DCV:
-
36/48v
-
Color:
-
Black
-
Torque:
-
80-120 Nm
-
Booster Sensor:
-
Speed type
Speed test report
* The tester weighs 60kg, has a 26-inch mountain bike,10AH lithium battery, 46T toothdisc, and a rear
variable speed of 12T endurance at 25km/h to get the data
|
Motor specification
|
Pure electric
vehicle speed
|
Pure charge
|
Power endurance
|
|||
|
36V250W
|
33-35km/h
|
36-38km
|
80-120km
|
|||
|
36V350W
|
38-40km/h
|
33-36km
|
60-100km
|
|||
|
48V350W
|
38-40km/h
|
38-42km
|
90-130km
|
|||
|
36V500W
|
48-50km/h
|
30-33km
|
60-100km
|
|||
|
48V500W
|
48-50km/h
|
35-38km
|
80-120km
|
|||
|
48V750W
|
52-55km/h
|
32-35km
|
60-100km
|
|||
|
48V/52V1000W
|
60-62km/h
|
28-32km
|
50-80km
|
|||
|
* The larger the rim wheel diameter, the faster the speed;The smaller the rim wheeldiameter is, the stronger the climbing ability is; The faster the speed, the more powerconsumption, the data is for reference only, please refer to the actual prevail, thank you！
|
|
|
|
|||
|
MOTOR PARAMETERS
|
|
|
|
|
|
|||||
|
Rated power (w)
|
250W
|
350W
|
500W
|
750W
|
1000W
|
|||||
|
No-load speed(Rpm）
|
83/87
|
113/118
|
113/118
|
145/150
|
160
|
|||||
|
Load speed (Rpm)
|
78/83
|
105/110
|
105/110
|
130/135
|
140/145
|
|||||
|
Maximum torque(N.m)
|
80
|
100
|
100
|
120
|
160
|
|||||
|
Motor net weight(KG)
|
3.98
|
3.98
|
4.24
|
4.24
|
6.04
|
|||||
|
whole set weight(KG)
|
5.37
|
5.37
|
5.63
|
5.63
|
7.8
|
|||||
|
Whole set gross weight(KG)
|
6.12
|
6.12
|
6.38
|
6.38
|
8.9
|
|||||
|
The number of motor(2P)
|
16
|
16
|
16
|
16
|
8
|
|||||
|
|
|
|
Function
|
|
|
|||||
|
Installation position
|
Mid motor
|
|
Function
|
|
|
|||||
|
Wheel diameter (inch)
|
Optional
|
|
The electronic brake handle
|
YES
|
|
|||||
|
Structure
|
Gear drive
|
|
Gear shift sensor function
|
YES
|
|
|||||
|
The rated voltage(DCV)
|
36/48
|
|
More Technical parameters
|
|
|
|||||
|
Effectiveness(%)
|
≥80
|
|
Number of magnets (pulses/cycle)
|
1
|
|
|||||
|
Booster sensor
|
Speed type
|
|
Reduction ratio
|
1：21.9
|
|
|||||
|
Shaft standard
|
JIS
|
|
Waterproof level
|
IP65
|
|
|||||
|
Colour
|
Black
|
|
Certification
|
CE/EN14764/ROHS
|
|
|||||
|
Noise (dB)
|
<55
|
|
Anti-corrosion level (hours)
|
96
|
|
|||||
|
Operating temperature
|
-20-40℃
|
|
|
|
|
|||||
|
* The following weight data are all measured manually, there may be some deviation, please refer to the actual weight
|
|
|
|
|
|
|||||
Crash reguirement
1.The central axle bowl is imperial,
2.This mid-mounted motor package is suitable for general commuting, mountain bikes, folding bikes, and station wagons;
3.The five-way opening of the whole series is 65~73mm (please confirm whether the size of your five-way
pipe meets the loading requirements beforeshooting), among which 48V/1000W also has 100mm and 120mmd five-wayopening. Please note the special requirements. Otherwise, it will default tostandard configuration.
pipe meets the loading requirements beforeshooting), among which 48V/1000W also has 100mm and 120mmd five-wayopening. Please note the special requirements. Otherwise, it will default tostandard configuration.
4.The kit does not contain batteries
