Quick Details
-
Brand Name:
-
Ascend
-
Dimension(L*W*H):
-
1700x1732x1653mm
-
Weight:
-
2800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Crusher Stone Machine
-
Color:
-
Blue
-
Keyword:
-
Fine Stone Jaw Crusher
-
Spare parts supply:
-
Anytime
-
The Machines classification:
-
stone jaw crusher
Quick Details
-
Application:
-
Mining
-
Capacity(t/h):
-
15-50tph
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ascend
-
Dimension(L*W*H):
-
1700x1732x1653mm
-
Weight:
-
2800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Crusher Stone Machine
-
Color:
-
Blue
-
Keyword:
-
Fine Stone Jaw Crusher
-
Spare parts supply:
-
Anytime
-
The Machines classification:
-
stone jaw crusher

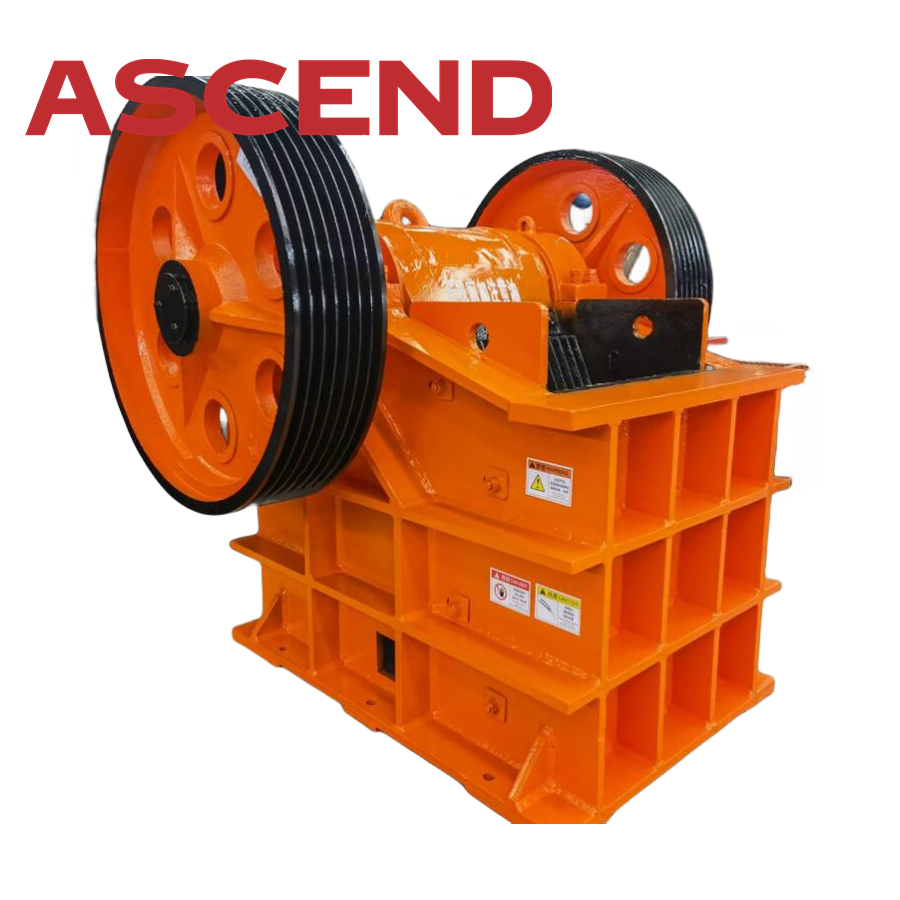

High efficiency Stone and Rock jaw crusher
Jaw Crusher is widely used in minin g, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Product
Jaw crusher in the factory
| Model | Feed openning size(mm) | Max feeding size(mm) | Discharge range(mm) | Capacity(t/h) | Power | Weight |
|
PE150x250 |
150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 |
| PE250x400 | 250x400 | 210 | 20-60 | 5-120 | 15 | 2.8 |
| PE400x600 | 400x600 | 340 | 40-100 | 30-50 | 30 | 7 |
| PE500x750 | 500x750 | 425 | 50-180 | 35-80 | 55 | 12 |
| PE600x900 | 600x900 | 500 | 50-180 | 80-150 | 75 | 17 |
| PE750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 90 | 31 |
| PE900x1200 | 900x1200 | 750 | 95-165 | 220-350 | 160 | 52 |
| PE1200x1500 | 1200x1500 | 1020 | 150-350 | 400-800 | 220 | 100 |
| PE150x750 | 150x750 | 120 | 18-48 | 10-25 | 15 | 3.8 |
| PE250x750 | 250x750 | 210 | 15-60 | 15-35 | 30 | 6.5 |
| PE250x1000 | 250x1000 | 210 | 15-60 | 16-52 | 37 | 7 |
| PE250x1200 | 250x1200 | 210 | 15-60 | 20-60 | 45 | 9.7 |
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
