Quick Details
-
Model Number:
-
IN-V030
-
Product name:
-
Auto Lens Edger
-
Lens diamete:
-
18~80mm
-
Wheels speed:
-
16.7m/s
-
Working Temperature:
-
5°C ~ 40°C
-
Suitable lenses:
-
PC/CR/Glass lenses
-
Edging Diameter:
-
18mm-80mm
-
Weight:
-
48kg
-
Dimension:
-
530*418*475mm
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
China
-
Brand Name:
-
ICEN
-
Model Number:
-
IN-V030
-
Product name:
-
Auto Lens Edger
-
Lens diamete:
-
18~80mm
-
Wheels speed:
-
16.7m/s
-
Working Temperature:
-
5°C ~ 40°C
-
Suitable lenses:
-
PC/CR/Glass lenses
-
Edging Diameter:
-
18mm-80mm
-
Weight:
-
48kg
-
Dimension:
-
530*418*475mm
Product Description
Specification:
1. Imported halogen bulb provides high and adjustable brightness and good color rendering.
2. Equipped with special charger, quick and convenient recharging, against over recharging.
3. Anti-recharging and anti-discharging function protects the battery.
4.Quickly and precisely measure the astigmatism axis.
5.The light can be converged, radiated and paralleled.
6.Continuously adjustable brightness.
7.Anti-recharging and anti-discharging function protects the battery.
8.Can also be connected with the head of ophthalmoscope.
2. Equipped with special charger, quick and convenient recharging, against over recharging.
3. Anti-recharging and anti-discharging function protects the battery.
4.Quickly and precisely measure the astigmatism axis.
5.The light can be converged, radiated and paralleled.
6.Continuously adjustable brightness.
7.Anti-recharging and anti-discharging function protects the battery.
8.Can also be connected with the head of ophthalmoscope.

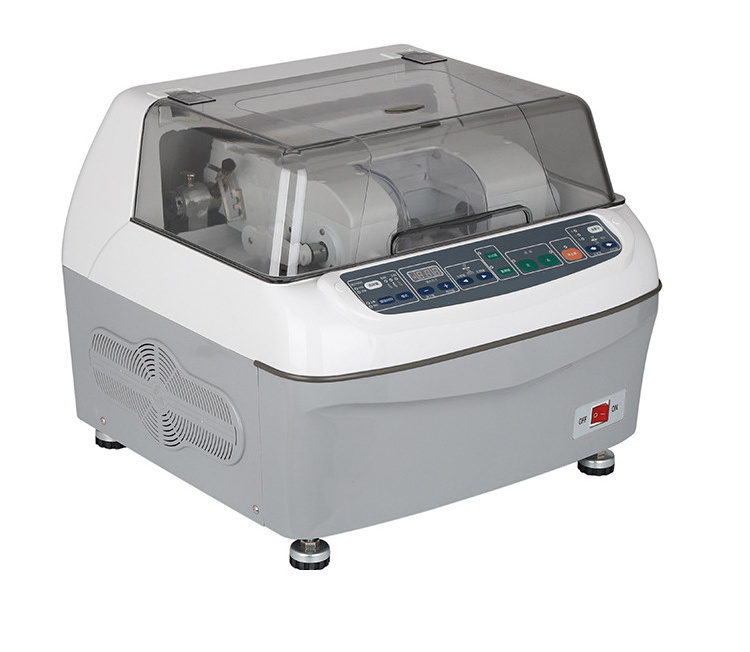

Auto Lens Edger
1. LCD digital display
2. lens clamp in gearless
3. 3F Cut-Grinding pressure
4. Best grinding wheel
Main Machine
LCD digital display
Adjustment of 3F Cut-Grinding pressure
Adjustment of lens clamp in gearless
Cut-Grinding Time of Single Lens 3 min
Life performance of main grinding wheel 10,000 PCs (Below hardness 5# Grade)
Built-in count displayer
Special water case with multi-function of filter and eliminating alkali
System and Main Parts
Adopted auto-shadowing cut-grinding system to ensure pressure angle, axis power and radial power in a best position.
Diamond wheels adopted abroad material and made of 5+1 new technology reached international level.
In order to ensure good quality of the grinding lens, the geometry shape of grinding lens, revision of geometry shape, adjustment
of tip shape, cut-grinding power, cut-grinding speed, lens clamp and etc. Are controlled by Computer.
There is a technology space in the computer, in which the functions can be raised and expanded.
Cut-Grinding Clamp: 0.50.78MP
Workable Diameter: 2380
Glossiness: BVII
Grinding Shape: Inward(Face)96%; Outward99%
Noise: 60 dB
Grinding Wheel maximum Linear Velocity 15m/Sec. (3 Shift Gears)
Grinding Wheel Diameter: 100125
Grinding Wheel Chamber: 60100mm
Power Supply: AC 220V/50-60Hz
Main Machine Power: 350 W
Working Environment Temperature: 5o C40o C
Dimension: 488×480×410 mm
Weight: 58 Kg
Specification
|
item
|
value
|
|
Warranty
|
1 years
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
Brand Name
|
ICEN
|
|
Model Number
|
IN-V030
|
|
Product name
|
Auto Lens Edger
|
|
Lens diamete
|
18~80mm
|
|
Wheels speed
|
16.7m/s
|
|
Working Temperature
|
5°C ~ 40°C
|
|
Suitable lenses
|
PC/CR/Glass lenses
|
|
Edging Diameter
|
18mm-80mm
|
|
Weight
|
48kg
|
|
Dimension
|
530*418*475mm
|
