Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SKYLAB
-
Supplier Type:
-
original factory
-
Product name:
-
indoor positioning Development kit
-
BLE5.0 TX power:
-
+8dBm Max
-
Frequency:
-
2400~2483.5MHz
-
Broadcasting distance:
-
100 meters
-
Battery capacity:
-
550mAh
-
Operating Temp:
-
-20~60℃
-
IP grade:
-
grade IP67
-
Type:
-
Intelligent Network Devices
-
MOQ:
-
1PCS
Quick Details
-
Chipset:
-
NRF52830
-
Application:
-
indoor positioning
-
Model Number:
-
VDB1608+TD05
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SKYLAB
-
Supplier Type:
-
original factory
-
Product name:
-
indoor positioning Development kit
-
BLE5.0 TX power:
-
+8dBm Max
-
Frequency:
-
2400~2483.5MHz
-
Broadcasting distance:
-
100 meters
-
Battery capacity:
-
550mAh
-
Operating Temp:
-
-20~60℃
-
IP grade:
-
grade IP67
-
Type:
-
Intelligent Network Devices
-
MOQ:
-
1PCS
Product Description
VDB1608 is a BLE(Bluetooth Low Energy) 5.0 card. It can broadcast its owner’s personal identification
information like name and number. And it can be used as indoor positioning card, which can be located by BLE
gateway or other BLE locating base-station.
VDB1608 can also scan and forward at most 3 other BLE cards/beacons whose broadcasting frame pattern
are the same as VDB1608’s. In that way, the covering
range of BLE gateway can be extended by card relay.
VDB1608 has a rechargeable 600mAh Li-Battery.
It can be charged by a magnetic USB connector line. Please follow the magnetic draw direction which will
combine the card and connector tightly. Do not let the battery run out for too long, which may damage the battery,
and make it difficult to recharge.
VDB1608 has a power key which can also be used as SOS key. Short press can activate the SOS signal,
and long press (>3S) can power on or power off the card.
VDB1608 has two LED. The red one will be on when the battery is charging. The blue one will be on when
pressing the button.
information like name and number. And it can be used as indoor positioning card, which can be located by BLE
gateway or other BLE locating base-station.
VDB1608 can also scan and forward at most 3 other BLE cards/beacons whose broadcasting frame pattern
are the same as VDB1608’s. In that way, the covering
range of BLE gateway can be extended by card relay.
VDB1608 has a rechargeable 600mAh Li-Battery.
It can be charged by a magnetic USB connector line. Please follow the magnetic draw direction which will
combine the card and connector tightly. Do not let the battery run out for too long, which may damage the battery,
and make it difficult to recharge.
VDB1608 has a power key which can also be used as SOS key. Short press can activate the SOS signal,
and long press (>3S) can power on or power off the card.
VDB1608 has two LED. The red one will be on when the battery is charging. The blue one will be on when
pressing the button.
|
item
|
value
|
|
Model Number
|
VDB1608+VDB2606
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
SKYLAB
|
|
Chipset
|
NRF52830
|
|
Application
|
indoor positioning
|
|
Product name
|
indoor positioning Development kit
|
|
BLE5.0 TX power
|
+8dBm Max
|
|
Frequency
|
2400~2483.5MHz
|
|
Broadcasting distance
|
100 meters
|
|
Battery capacity
|
550mAh
|
|
Operating Temp
|
-20~60℃
|
|
IP grade
|
grade IP67
|
|
Type
|
Intelligent Network Devices
|
|
Certification
|
CE FCC RoHS
|

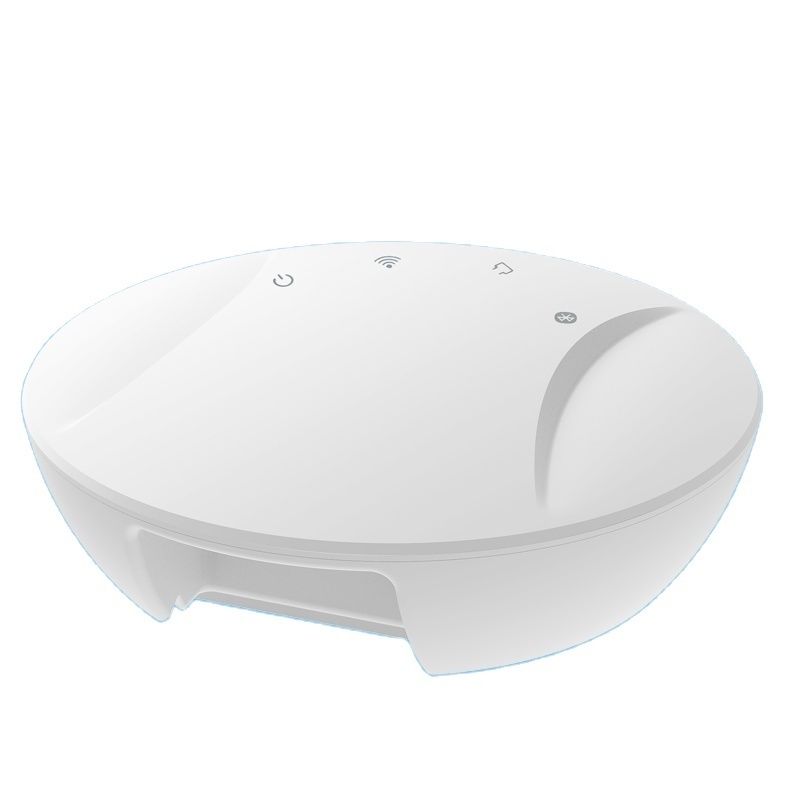

VDB2606 is a Bluetooth Gateway with POE or DC power supply. It can be used in various scenarios flexibly. For
example, the remote control BLE device, receives the data sent by the BLE device and sends it to servers. The
WiFi data rate of VDB2606 can be up to 100Mbps and BLE data rate can be up to 1Mbps. VDB2606 also supports the
POE switch power supply and 4.5V to 12.0V adapter power supply
example, the remote control BLE device, receives the data sent by the BLE device and sends it to servers. The
WiFi data rate of VDB2606 can be up to 100Mbps and BLE data rate can be up to 1Mbps. VDB2606 also supports the
POE switch power supply and 4.5V to 12.0V adapter power supply
