Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YESNCER
-
Dimension(L*W*H):
-
950*1960*680 mm
-
Weight (KG):
-
20 KG
-
Air Flow:
-
7000 m3/h
-
air pressure:
-
270pa
-
Power:
-
0.55kw
-
Fan type:
-
EXTERNAL ROTOR MOTOR DIRECT DRIVEN CENTRIFUGAL FANS
-
water flowing:
-
7.2m3/h
-
Noise:
-
<=64db
-
Eletrical data:
-
230V/50HZ
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
ce
-
Marketing Type:
-
New Product 2021
Quick Details
-
Type:
-
Air Handling Unit
-
Mounting:
-
Ceiling Mount
-
Airflow:
-
7500m³/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YESNCER
-
Dimension(L*W*H):
-
950*1960*680 mm
-
Weight (KG):
-
20 KG
-
Air Flow:
-
7000 m3/h
-
air pressure:
-
270pa
-
Power:
-
0.55kw
-
Fan type:
-
EXTERNAL ROTOR MOTOR DIRECT DRIVEN CENTRIFUGAL FANS
-
water flowing:
-
7.2m3/h
-
Noise:
-
<=64db
-
Eletrical data:
-
230V/50HZ
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
ce
-
Marketing Type:
-
New Product 2021

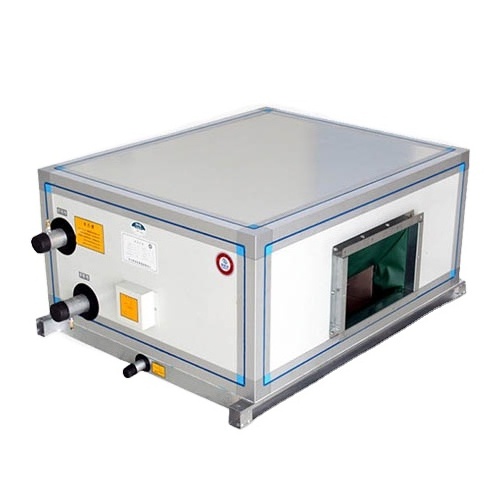

Jet-type air handling unit is according to the new wind person on the indoor side of the enclosed air supply on the other side of the wind, indoors will form a "fresh air flow field, the principle of" to carry on the design. It depends on the mechanical air supply, wind and force in the formation of air flow field in the system.
Keep indoor air clean and fresh is a kind of new environmental protection appliances. This independent indoor air displacement, purify circulation system, can eliminate indoor air pollution at the same time, the input of natural fresh air, will enter indoor air by filtration, sterilization, heating, increasing oxygen treatment.
- Using high sealing material and a mix of low thermal resistance wall plate for the cabinet.
- Low noise centrifugal fan
- Seamless copper tube and high purity aluminum foil, ARI standard performance
- Drain tray applied thicken insulation material and no leakage.
- Tuyere adopts spherical vents with good jet velocity to blasting air , realizing a long distance air supply without air hose.
|
Air flow (m 3 /h) |
1500 |
2000 |
2500 |
3000 |
4000 |
5000 |
|
Size (mm) |
950*700*560 |
950*840*560 |
950*920*560 |
950*1120*560 |
950*1400*560 |
950*1680*560 |
|
Air flow (m 3 /h) |
6000 |
8000 |
10000 |
12000 |
14000 |
15000 |
|
Size (mm) |
950*1960*560 |
950*1960*680 |
950*2080*740 |
1100*2180*820 |
1200*2280*860 |
1200*2340*890 |
FAQ
| 1 | Q:Are you a direct manufacturer or a trading company? |
| A:We are manufacturer about fan coil unit more than 10 years expriences. | |
| 2 | Q:How to choose a suitable machine? And how to get a prompt quotation? |
|
A:Please let us know the machine usage, we have professional design team who will make a reasonable scheme. When you send the inquiry to us, please kindly provide the below technical information:
1) Chiller type: Air cooled or water cooled 2) Cooling capacity: Kcal/hr or KW 3) Refrigerant: R22 or others 4) Voltages and Frequency : V/PH/HZ |
|
| 3 | Q:Are OEM or ODM available? |
| A:Sure, OEM and ODM are available,our factory has more than 10 years’ experiences in design and manufacturing chiller, we also supply the machine based on the specification provided by the customers. You just need to give us your detailed requests, we will design and manufacture after communication and confirmation. | |
| 4 | Q:What kind of payment terms can you accept |
| A.We will confirm the payment with you when quoting, like FOB, CIF, CNF or others. T/T ,Alibaba Credit Insurance Order,western union and L/C are all acceptable . | |
| 5 | Q:What’s your delivery method |
| Usually we ship by sea, and the sea export is very convenient. Of course, if the customer's goods are urgent, we can also air, and Beijin Airport and Shijiazhuang International Airport are very close to us. | |
| 6 | Q: Where do you mainly export your products? |
|
A:Our products are mainly exported to dozens of countries including the United States, Germany, Japan, Spain, Italy, the United Kingdom, South Korea, Australia, and Canada. |
|
| 7 | Q:How about your after-sale service |
| A:Provide customers with installation and commissioning online instructions. |
All the parts of the product are processed by ourselves, and we can guarantee the quality of our products ourselves.
