Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Width:
-
93 mm ~ 435 mm
-
Hardness HRC:
-
58 ~ 62
-
Torque range:
-
44 N.m ~ 16000 N.m
-
Content of raw materials:
-
GCr15
-
Application:
-
Heavy machinery, metallurgical machinery, chemical machinery
-
Package:
-
carton, wooden case
-
Product name:
-
CKL-A High quality one way sprag freewheel clutch coupling
-
Inner size:
-
12 mm ~ 100 mm
-
Outer diameter:
-
52 mm ~ 270 mm
-
Weight:
-
3.0 kg ~ 230 kg
Quick Details
-
Type:
-
Sprag clutch bearing
-
Precision Rating:
-
IT6
-
Seals Type:
-
Sealed
-
Place of Origin:
-
Shaanxi, China
-
Width:
-
93 mm ~ 435 mm
-
Hardness HRC:
-
58 ~ 62
-
Torque range:
-
44 N.m ~ 16000 N.m
-
Content of raw materials:
-
GCr15
-
Application:
-
Heavy machinery, metallurgical machinery, chemical machinery
-
Package:
-
carton, wooden case
-
Product name:
-
CKL-A High quality one way sprag freewheel clutch coupling
-
Inner size:
-
12 mm ~ 100 mm
-
Outer diameter:
-
52 mm ~ 270 mm
-
Weight:
-
3.0 kg ~ 230 kg
Product Description

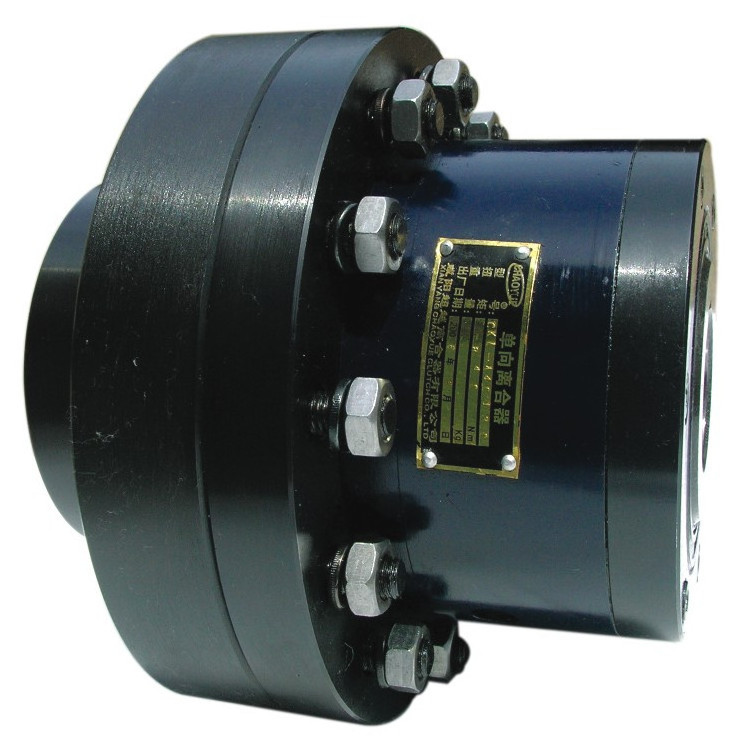

CKL-A High quality one way sprag freewheel clutch coupling
Parameter of CKL-A High quality one way sprag freewheel clutch coupling
| TYPE | NOMINAL TORQUE [N · m] |
OVERRUNNING LIMITING SPEED [r / min] |
DIMENSION IN CONTOUR [mm] | WEIGHT [kg] | |||||||||
| OUTER RACE | INNER RACE | d [H7] | dk [H7] | D | D1 | L | L1 | L2 | B | b n x tn | |||
| CKL-A1252 | 44 | 2125 | 2100 | 12 | 12 - 25 | 52 | 97 | 93 | 35 | 42 | 13 | 2 x 1.0 | 3.0 |
| CKL-A1568 | 90 | 1615 | 2100 | 15 | 15 - 30 | 68 | 112 | 110 | 40 | 52 | 14 | 3 x 1.4 | 4.4 |
| CKL-A2075 | 98 | 1360 | 1960 | 20 | 15 - 30 | 75 | 118 | 114 | 40 | 56 | 14 | 3 x 1.4 | 4.6 |
| CKL-A2590 | 230 | 1190 | 1610 | 25 | 20 - 40 | 90 | 130 | 132 | 50 | 60 | 18 | 4 x 1.8 | 6.4 |
| CKL-A30100 | 400 | 1105 | 1470 | 30 | 20 - 50 | 100 | 160 | 154 | 60 | 66 | 21 | 5 x 2.3 | 11 |
| CKL-A35110 | 580 | 935 | 1330 | 35 | 25 - 65 | 110 | 190 | 174 | 75 | 74 | 19 | 6 x 2.8 | 17 |
| CKL-A40125 | 820 | 807.5 | 1190 | 40 | 25 - 65 | 125 | 190 | 187 | 75 | 86 | 21 | 6 x 2.8 | 19 |
| CKL-A45130 | 840 | 765 | 1120 | 45 | 25 - 65 | 130 | 190 | 188 | 75 | 86 | 21 | 6 x 2.8 | 19 |
| CKL-A48150 | 1400 | 730 | 1000 | 48 | 25 - 65 | 150 | 225 | 208 | 90 | 88 | 25 | 14 x 3.8 | 31.5 |
| CKL-A50150 | 1400 | 722.5 | 980 | 50 | 30 - 75 | 150 | 225 | 213 | 90 | 92 | 25 | 14 x 3.8 | 31 |
| CKL-A55160 | 1600 | 612 | 910 | 55 | 35 - 90 | 160 | 270 | 234 | 100 | 100 | 27 | 16 x 4.3 | 47 |
| CKL-A60170 | 2200 | 578 | 840 | 60 | 35 - 90 | 170 | 270 | 244 | 94 | 114 | 30 | 18 x 4.4 | 49 |
| CKL-A70170 | 2200 | 578 | 840 | 70 | 35 - 90 | 170 | 270 | 267 | 117 | 114 | 30 | 2 x 4.9 | 48 |
| CKL-A70190 | 4500 | 493 | 770 | 70 | 45 - 110 | 190 | 340 | 318.5 | 140 | 134 | 38.5 | 20 x 4.9 | 9 |
| CKL-A75170 | 2200 | 578 | 840 | 70 | 35 - 90 | 170 | 270 | 291 | 140 | 114 | 30 | 20 x 4.9 | 46 |
| CKL-A75190 | 4500 | 493 | 770 | 75 | 50 - 120 | 190 | 340 | 315 | 140 | 134 | 35 | 20 x 4.9 | 88 |
| CKL-A80210 | 6800 | 408 | 630 | 80 | 55 - 125 | 210 | 380 | 344 | 160 | 142 | 35 | 20 x 4.9 | 107 |
| CKL-A90230 | 11000 | 323 | 595 | 90 | 65 - 140 | 230 | 440 | 381 | 160 | 159 | 50 | 25 x 6.4 | 170 |
| CKL-A95230 | 11000 | 323 | 595 | 95 | 70 - 145 | 230 | 440 | 381 | 160 | 159 | 50 | 25 x 5.4 | 165 |
| CKL-A95250 | 13000 | 300 | 550 | 95 | 70 - 150 | 250 | 420 | 410 | 190 | 175 | 35 | 25 x 5.4 | 198 |
| CKL-A100270 | 16000 | 297.5 | 525 | 100 | 75 - 160 | 270 | 500 | 434.5 | 200 | 182 | 40.5 | 28 x 6.4 | 230 |
